Summary of Contents for Eneo DPR-2016

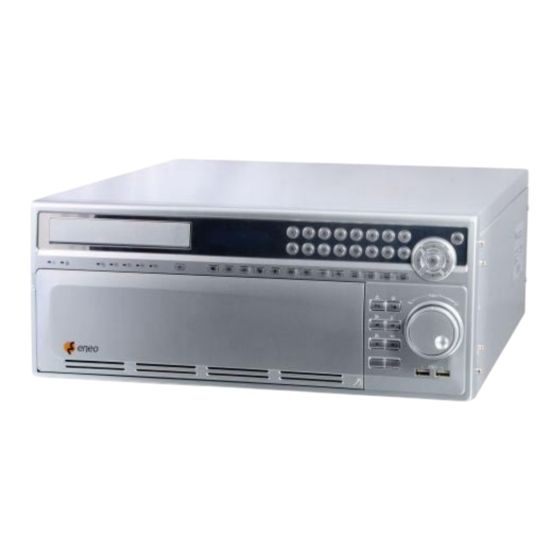

- Page 1 Operating Instructions Digital Video Recorder Models: DPR-2016/500D...
-
Page 3: Safety Instructions
The housing of the DVR may only be cleaned with a damp (not wet) cloth, ► Use only a mild detergent. Do not use solvent-containing detergents or petrol. This could permanently damage the surface finish. Spare parts ► Use only original spare parts from Videor E. Hartig GmbH. DPR-2016/500D... -
Page 5: Table Of Contents
Fitting hard disk into an empty drive rack Mirroring of hard disks Determining the memory requirement of a recording Searching for recordings Using Bookmark search Using calendar search Using event log search Using text-in search Using motion search Copying recordings DPR-2016/500D... - Page 6 Event – Video Loss Event – Video Blind Event – Text-In Event – System Event Event – Event Status WebGuard – WebWatch controls WebGuard – WebSearch controls Using WebGuard Specifications DPR-2016 Accessories Supported PTZ cameras Index Notes on disposal DPR-2016/500D...
-
Page 7: Overview
Digital video recorder DTR connected ● At least 1 camera connected ● At least 1 monitor connected ● Mouse connected, if DVR is to be controlled by mouse Control options ● Front panel ● Remote Control ● Mouse ● WebGuard ● RAS program DPR-2016/500D... -
Page 8: Connections On The Rear
Connections on the rear Note: Connections optionally for NTSC or PAL operation. DPR-2016/500D... - Page 9 Reset alarm with external signal Switch RS-22C 2 external interfaces Modem RS-485 2 external interfaces Keyboard, PTZ camera Reset switch Reset to factory defaults AI1 - AI16 Alarm inputs for external devices Sensors Power switch On/Off switch Power supply Mains power connection DPR-2016/500D...
-
Page 10: Front Panel Controls
Front panel controls The following diagram and table set out the controls on the front panel of the DVR: DPR-2016/500D... - Page 11 Change numerical values in Setup menu ● Frame-by-frame playback in Play mode ● Reset alarm ● View event list Start/end panic recording Playback functions (primary assignment) PTZ camera functions (secondary assignment) Hard disks max. 4 hard disks in the exchange frame DPR-2016/500D...
-
Page 12: Key To Controls
Spot monitor assignments PTZ camera functions Element Function Zoom in Zoom in Close-up Wide-angle Save preset Load preset Playback functions Element Function Start/pause playback ● Select Search/Play function ● Stop playback Fast rewind Fast forward Frame-by-frame rewind Frame-by-frame forward DPR-2016/500D... -
Page 13: Remote Control Functions
Menu navigation the menu DIGITAL VIDEO RECORDER MENU Open/quit menu structure Remote Controller Function buttons Function buttons Playback functions Element Function ● Select Search/Play function ● Stop playback Pause playback Start playback Fast rewind Fast forward Frame-by-frame rewind Frame-by-frame forward DPR-2016/500D... -
Page 14: Menu Overview
Zoom Audio... PTZ... Speed Auto Pan Tour Pattern Device Menu Light Pump Wiper Power Aux. Move to Origin Spot Monitor... Exit PTZ Spot Monitor... Select Spot Monitor Spot Monitor 1 Spot Monitor 2 Spot Monitor Spot Monitor 4 DPR-2016/500D... - Page 15 Triplex Search Go to the First Go to the Last Go to the Date/Time... Bookmarks... Calendar Search... Event Log Search... Text-In Search… Motion Search... Clip-Copy... Print... Zoom Audio... Use De-Interlace Slow Play x1/2 Data Source Record Archive Exit Search DPR-2016/500D...
-
Page 16: Accessing The Menus
● Current camera image is shown as a full image. Step Action Access using Key sequence/menu path Device > > Open PTZ menu... Remote > MENU > Result: Menu of the configured PTZ Control camera is shown. Mouse PTZ... DPR-2016/500D... -
Page 17: Accessing The Setup Menu
Requirement: ● The current camera image is shown in full image or quad image. Key sequence/menu Step Action Access using path Device > Open Search menu... Remote Control > MENU Result: Search for recorded images is activated. Mouse Search DPR-2016/500D... -
Page 18: Getting Started
If the system ID in the DVR is not 0, you must set the ID of the remote control identically. Step Action Menu path Set DVR system ID. Setup Menu... > System > Information Match remote control to system ID by pressing ID button on remote control. Select relevant number on remote control. DPR-2016/500D... -
Page 19: Switching On The Dvr
Result: System starts up automatically and is ready to use. Switching off the DVR Requirement: ● You have accessed the Setup menu. Step Action Menu path Shut down the system. Setup Menu... > System > Shutdown ..Result: System shuts down automatically. After shutdown, switch off power switch. DPR-2016/500D... -
Page 20: Administration
Menu path Insert a USB memory stick into one of the USB ports. Setup Menu... > System > Information > Import your setup. Setup > Import... Select the file name and, where appropriate, the network configuration. Import your setup. Import DPR-2016/500D... -
Page 21: Deleting Recordings
You can hide video images and camera data according to the preset user rights. Step Action Menu path Set camera Covert mode. Setup Menu... > Devices > Camera > Settings Cancel ‘Covert Camera View' access for Setup Menu... > System > User specific users (groups). DPR-2016/500D... -
Page 22: Restoring Factory Defaults
Switching off the DVR Push a paper clip into the Reset button (on the rear of the DVR) and hold it there. Switching on the DVR Wait for all the LEDs to flash 5 times (about 30 seconds). Withdraw the paper clip. DPR-2016/500D... -
Page 23: Changing Hard Disk
Swing down the frame. Result: The hard disk is now connected to the video recorder. Lock the drive rack using the key. Swing the hard disk cover back into position. Select the new hard disk. DPR-2016/500D... -
Page 24: Fitting Hard Disk Into An Empty Drive Rack
Open the drive rack frame for the new hard disk and slide the hard disk into the drive rack slot of the video recorder. Swing down the frame. Result: The hard disk is now connected to the video recorder. Lock the drive rack using the key. Swing the hard disk cover back into position. DPR-2016/500D... -
Page 25: Mirroring Of Hard Disks
If the hard disk is to be used for records or archiving, Setup-Menu... > System > Storage > it must be formatted. Information > Format > Format Setup Menu... > System > Storage Continuing Mirroring - see step.2 > Information > Mirroring Setup > InternalX -> InternalX DPR-2016/500D... -
Page 26: Determining The Memory Requirement Of A Recording
.46 GB 6.9 GB 17.28 GB Standard 18 kB 24 hours 7.78 GB 15.55 GB 8.88 GB High 6 kB 24 hours 15.55 GB 1.1 GB 77.76 GB Super High 80 kB 24 hours 4.56 GB 69.12 GB 172.8 GB DPR-2016/500D... -
Page 27: Searching For Recordings
● alarm from a specific alarm input ● System events Search Event Log Search... Text-in search The text-in search enables you to search for recordings based on specific text inputs. Search Text-In Search… DPR-2016/500D... -
Page 28: Motion Search
Motion search: Search for movement in a defined zone. ● Museum search: Search for movement of a defined object. Search Motion Search... Copying recordings Recordings can be written to a CD or copied to a USB memory stick. Search Clip-Copy... DPR-2016/500D... -
Page 29: Using Bookmark Search
Select the desired bookmark from the list. Bookmark Search Bookmarks... Term Symbol Meaning Number of the bookmark Title Name of the bookmark Bookmark Activates the search for the defined bookmark Channels Display the channels Add Current Position Adds a new bookmark. DPR-2016/500D... -
Page 30: Using Calendar Search 0
If the date and time on the DVR have been changed (such as when switching to Summer time) there may be multiple Select a Segment recordings for one time from the same camera. They are stored in separate segments. DPR-2016/500D... -
Page 31: Using Event Log Search 1
Cameras on which to search for video blind Text-In Text input devices on which to search for events Record Channels Cameras on which to search for events Search for system events: Setup Menu... > Event > System Event > Actions DPR-2016/500D... -
Page 32: Using Text-In Search 2
To Last End date Channels Text input devices on which to search for events Type of text input: Any Text-In Product Generic Text Epson Numbers of text elements to search for Keyword Text element Case Sensitive Makes search case-sensitive DPR-2016/500D... -
Page 33: Using Motion Search
See “Zone” on page 46. Sensitivity of motion detection of: 1 (Dull) Sensitivity 5 (Sensitive) Motion search only (not museum search): Min. Blocks Specify in how many motion-sensitive blocks motion must be detected as a minimum to trigger an alarm DPR-2016/500D... -
Page 34: Copying Recordings 4
Assignment of cameras from which recordings are to be copied Password Use password, if desired Destination medium: Internal DVD-RW USB-CD-RW Dest. 1. USB Storage 2. USB Storage . USB Storage File name Name of file on destination medium Verify After Activates verification after burning Burning Progress Copy status DPR-2016/500D... -
Page 35: Menu Descriptions - Setup Menu
On the “Event” menu the following settings are made: ● Assignment of alarm inputs to alarms ● Configuration of motion-sensitive zones individually for each camera ● Definition of text input device and assignment to alarms ● Response to undesirable events The event status is additionally displayed. DPR-2016/500D... -
Page 36: System - Information 6
Starts installing latest version of software via USB port Import... Import setup Export... Export setup Show System Log... Show log of all actions and events Recorded data From Date of oldest recording Date of newest recording Clear All Data... Deletes all stored data DPR-2016/500D... -
Page 37: System - Date/Time 7
Time Sync Symbol Meaning Term Automatic Sync. Activates synchronisation with time server Time Server Address of time server Interval Synchronisation interval Last Sync-Time Time of last synchronisation Run as Server Activates use of the DVR as the time server DPR-2016/500D... -
Page 38: System - Storage 8
Time range of recorded data >> Mirroring Setup Mirroring hard disks 1 and 2 No Mirror 1 No Mirror 1 Internal1 -> Internal2 Internal2 -> Internal1 Mirroring hard disks and 4 No Mirror 2 No Mirror 2 Internal -> Internal4 Internal4 -> Internal DPR-2016/500D... - Page 39 End date of recorded data Clear Delete all recordings Setup Menu... System Storage Status Term Symbol Meaning Type Memory type Disk Bad Data carrier status Temperature Temperature status S.M.A.R.T. Result of S.M.A.R.T. check Internal 1 to 4 Name of hard disk drives DPR-2016/500D...
-
Page 40: System - User
Alarm-Out Control May reset alarms Covert Camera View May view video images from covert cameras System Check May interrogate system status Record Setup May make changes to the Record menu Search May use Search mode Clip-Copy May copy video images DPR-2016/500D... -
Page 41: System - Shutdown
Quality of picture transmission via network (PAL): Super High 14.4 kB/picture Quality High 9.6 kB/picture Standard 4.8 kB/picture Basic 2.4 kB/picture Quality of recorded images Resolution Standard (CIF) High (Half D1) 2CIF Selecting Audio Channel Remote Audio Channel Select From RAS 1 - 16 DPR-2016/500D... - Page 42 Note: Use of modem must not be activated. DNS Server Address of DNS server Definition of the port numbers that are required for access to Port Number Setup... the Digital Video Recorder using the RAS plus software or using WebGuard DPR-2016/500D...
- Page 43 Check Check DVR name for usability after entering Help Desk Information from help desk if DVRNS setting correct Setup Menu... Network Network WebGuard Term Symbol Meaning Use WebGuard Service WebGuard Service activated Port Port for the WebGuard Service DPR-2016/500D...
-
Page 44: Network - Notification
Setup Menu... Network Notification Callback Term Symbol Meaning Enables notification of an RAS via LAN Number of IP address IP Address IP addresses of RAS PCs Number of notification attempts by the DVR in the event of an Retry error DPR-2016/500D... -
Page 45: Devices - Camera
Symbol Meaning Number of camera Product PTZ camera type as per specified list Unique ID of PTZ camera Port Interface type of PTZ cameras Settings as specified by PTZ camera manufacturer: Baud Rate Setup… Data Bit Stop Bit Parity DPR-2016/500D... -
Page 46: Devices - Alarm-Out
Number of schedule entry Day of the week Range Time range at 15-minute intervals Response in defined period: Event Alarm in response to event Mode Continuous alarm No alarm Enable Channels ● Alarm outputs ● internal beep by DVR DPR-2016/500D... -
Page 47: Devices - Display
Display of camera number Title Display of camera title Record Display of Record symbols Visible when PTZ camera is displayed Text-In Display of character string Audio Audio Transparency Transparency of menu screens Distance of displayed symbols from screen OSD Margin... margin DPR-2016/500D... -
Page 48: Devices - Remote Control
On the “Remote Control” menu the remote control function is configured. Setup Menu... Devices Remote Control Term Symbol Meaning Port Interface type of remote control Setup as specified by manufacturer: Baud Rate Setup… Data Bit Stop Bit Parity Remote Control Product Remote control type as per specified list DPR-2016/500D... -
Page 49: Record - Record
Panic Recording Duration button Panic recording ends after preset time or xx min. by pressing PANIC button Number of recorded images per second in panic recording Quality Picture quality of the recorded images in panic recording Resolution Quality of recorded images DPR-2016/500D... -
Page 50: Record - Schedule
Picture data settings in Time and Event modes: Settings Number of recorded images per second Quality Picture quality of recorded images Picture data defaults in Time and Event modes: Default… Number of recorded images per second Quality Picture quality of recorded images DPR-2016/500D... -
Page 51: Record - Pre-Event
Quality of recorded images Recording time prior to the event Note: The pre-event recording memory capacity is limited. Dwell Consequently, the maximum recording time prior to the event, the number of recorded images and picture quality are inter- dependent. DPR-2016/500D... -
Page 52: Record - Archive
End of archiving, up to: Continue No end xx/yy/200x Defined date and time Enables automatic overwriting of the oldest recordings when the archive medium is full. Recycle Note: If not enabled, archiving ends when the archive medium is full. DPR-2016/500D... -
Page 53: Event - Alarm-In
Setup Menu... > Devices > Alarm-Out > Schedule Assign and enable notifications: Mail Option "Image Attachment“ for Camera 1-16 LAN 1 to LAN 5 Notify Alert Window The selected function must be enabled: Setup Menu... > Network > Notification DPR-2016/500D... - Page 54 Alarm-In Actions 2 Term Symbol Meaning Number of alarm input Select PTZ cameras to record in event of alarm and select the desired settings Select spot monitor on which camera image is displayed in event Spot Monitor of alarm DPR-2016/500D...
-
Page 55: Event - Motion Detection
Zone View Mark the motion-sensitive zones (red in event of motion) Time interval between 2 events logged as separate events: Motion Ignoring Interval Never Each motion detection is logged as a separate event. Daytime Setup... Definition of “Daytime” time range DPR-2016/500D... - Page 56 Motion Detection Actions 2 Term Symbol Meaning Number of alarm input Select PTZ cameras to record in event of alarm and select the desired settings Select spot monitor on which camera image is displayed in event Spot Monitor of alarm DPR-2016/500D...
-
Page 57: Event - Object Detection
Max. Blocks Activation Time Zone View Mark the motion-sensitive zones (red in event of motion) Time Setup… . Definition of the period of time during which there is no Use Ignoring Time reaction to the occurrence of an event DPR-2016/500D... - Page 58 Object Detection Actions 2 Term Symbol Meaning Number of alarm input Select PTZ cameras to record in event of alarm and select the desired settings Select spot monitor on which camera image is displayed in event Spot Monitor of alarm DPR-2016/500D...
-
Page 59: Event - Video Loss
Setup Menu... > Devices > Alarm-Out > Schedule Assign and enable notifications: Mail Option "Image Attachment“ for Camera 1-16 LAN 1 to LAN 5 Notify Alert Window The selected function must be enabled: Setup Menu... > Network > Notification DPR-2016/500D... - Page 60 Video Loss Actions 2 Term Symbol Meaning Number of camera Select PTZ cameras to record in event of alarm and select the desired settings Select spot monitor on which camera image is displayed in event Spot Monitor of alarm DPR-2016/500D...
-
Page 61: Event - Video Blind
Activation Time of check as to whether camera is covert Activation Time Don't Use xx min. Status View Activates the status display Time Setup… . Definition of the period of time during which there is Use Ignoring Time no reaction to the occurrence of an event DPR-2016/500D... - Page 62 Video Blind Actions 2 Term Symbol Meaning Number of covert camera Select PTZ cameras to record in event of alarm and select the desired settings Select spot monitor on which camera image is displayed in event Spot Monitor of alarm DPR-2016/500D...
-
Page 63: Event - Text-In
^J for LF or ^M for CR Character string in the text input which the DVR is to ignore Ignore String All transmittable character strings are specified by the text input device manufacturer. Case sensitivity according to text input device manufacturer’s Case Sensitive specification DPR-2016/500D... - Page 64 Text-In Actions 2 Term Symbol Meaning Number of alarm input Select PTZ cameras to record in event of alarm and select the desired settings Select spot monitor on which camera image is displayed in event Spot Monitor of alarm DPR-2016/500D...
-
Page 65: Event - System Event
Entering the temperature limit (in Celsius or Fahrenheit) for the data media S.M.A.R.T. check Disk S.M.A.R.T. If the temperature limit is exceeded an alarm is triggered. For details of your hard disk’s temperature limit refer to the manufacturer’s manual. DPR-2016/500D... - Page 66 Mail Option "Image Attachment“ for Camera 1-16 LAN 1 to LAN 5 (not in case of system event) Notify Alert Window (not in case of system event) The selected function must be enabled: Setup Menu... > Network > Notification DPR-2016/500D...
-
Page 67: Event - Event Status
On checking the data medium (only if DVR is not operating in Overwrite Disk Full mode) Setup Menu... Event Event Status Storage Term Meaning Type Memory type Disk Bad Data carrier status Temperature Data carrier status S.M.A.R.T. Result of S.M.A.R.T. check Internal 1 to 4 Name of hard disk drives DPR-2016/500D... -
Page 68: Webguard - Webwatch Controls
● IP Address ● User Name Image display modes Display Change camera name and image aspect ratio Select cameras Image optimisation PTZ camera functions Activate Alarm Outputs Save current recording data Set up image drawing mode Display Event log DPR-2016/500D... -
Page 69: Webguard - Websearch Controls
Time bar calendar search and event log Search for date/time Calendar search Event Search Reload recording data Set up image drawing mode Save any video clip as an EXE file Save current image as BMP or JPEG file Print DPR-2016/500D... -
Page 70: Using Webguard
Ask your System Administrator about the current access data. Start Internet Explorer. Enter the access data in the address line, e.g.: 192.168.1.129:12088 Enter your User Name (admin), Password (blank) and if necessary the port addresses. Select Login. Result: WebGuard window is opened. DPR-2016/500D... -
Page 71: Specifications Dpr-2016
Playback Full image, 4-, +4-, 9-, 2+8-, 1+12-, 16-channel split, PIP Post-alarm recording Up to 15 minutes RS-485 port for PTZ control (verified logs: eneo-Fastrax, Pelco P/D) or Control interface keyboard connection for remote control Activity detection Programmable 24 x 0 (720) grid, 5 sensitivity settings... - Page 72 Specifications DPR-2016 (continued) Model DPR-2016/500D 400 field image per sec at CIF/2CIF resolution (352 x 288 / 704 x 288 Recording speed pixels/PAL), 200 field image per sec at 4CIF resolution (704 x 576 pixels/PAL) Basic: 6.7/8 kB; Standard: 15/18 kB; High: 0/6 kB; Very high: 66.7/80 kB Picture size (NTSC/PAL).
-
Page 73: Accessories
Accessories EDP No. Short description 71950 Hard disk 250GB for DPR-2016 71956 Hard disk 500GB for DPR-2016 71975 CD/DVD Writer DVD+/-RW 48x/18x, CD/DVD 74088 System keyboard with -axis joystick 74092 System keyboard with joystick, 5” monitor 71902 USB mouse for DVR series DLR and DTR... -
Page 74: Supported Ptz Cameras
Canon VC-C50i Inter-M VRX-2201 Vicon Vicon Hitron 22x AF Zoom 60Vision VisionDome Panasonic WJ-SX550A Panasonic WV-CS850/854 ZC-SD622J Samsung Zoom Camera Honeywell HDC-655 LG Honeywell HSD-25X Honeywell HSDN-251 Idis IRX-100 Ultrak Ultrak KD6 Z-series Kalatel KTD-12 LPT-A100L Novus-C Samsung MRX-1000 DPR-2016/500D... -
Page 76: Index
Video Blind 62 Cleaning Video Loss 59 Clip-Copy 4 Configuring a pre-event 51 Configuring event responses 5 Configuring Motion Detection 55 Configuring panic recording 49 Configuring PTZ cameras 45 Configuring remote control 48 Configuring text input as event 6 DPR-2016/500D... - Page 77 Index (continued) Event Monitor Configuring a pre-event 51 Configuring display 47 Configuring Object Detection 57 Configuring display sequence 48 Configuring responses 5 Connecting 8 Defining motion-sensitive zones 55 Motion search Displaying status 67 Setting recording time 49 System events 65 Network configuration 41 Text input 6 Network settings...
- Page 78 Setting automatic overwrite 49 Switching off 19 Switching on 19 System Export setup 6 Import setup 6 Logging out as USER 41 Shutdown 41 System events Configuring 65 Health Check 65 Text-in search 2 Time Setting 7 Synchronising 7 DPR-2016/500D...
-
Page 79: Notes On Disposal
Contact the retailer from whom you purchased the DVR or your competent local authority to find out how you can recycle the DVR in an environmentally friendly way. Commercial users ► This DVR must not be thrown away with trade waste. To clarify the conditions of disposal, check your purchase contract or contact your supplier. DPR-2016/500D... - Page 80 Videor E. Hartig GmbH Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Str. Operating Instructions version 06/2009 (V1.1) 8 · 622 Rödermark, Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100 Subject to technical change without notice.
