The Logic Template

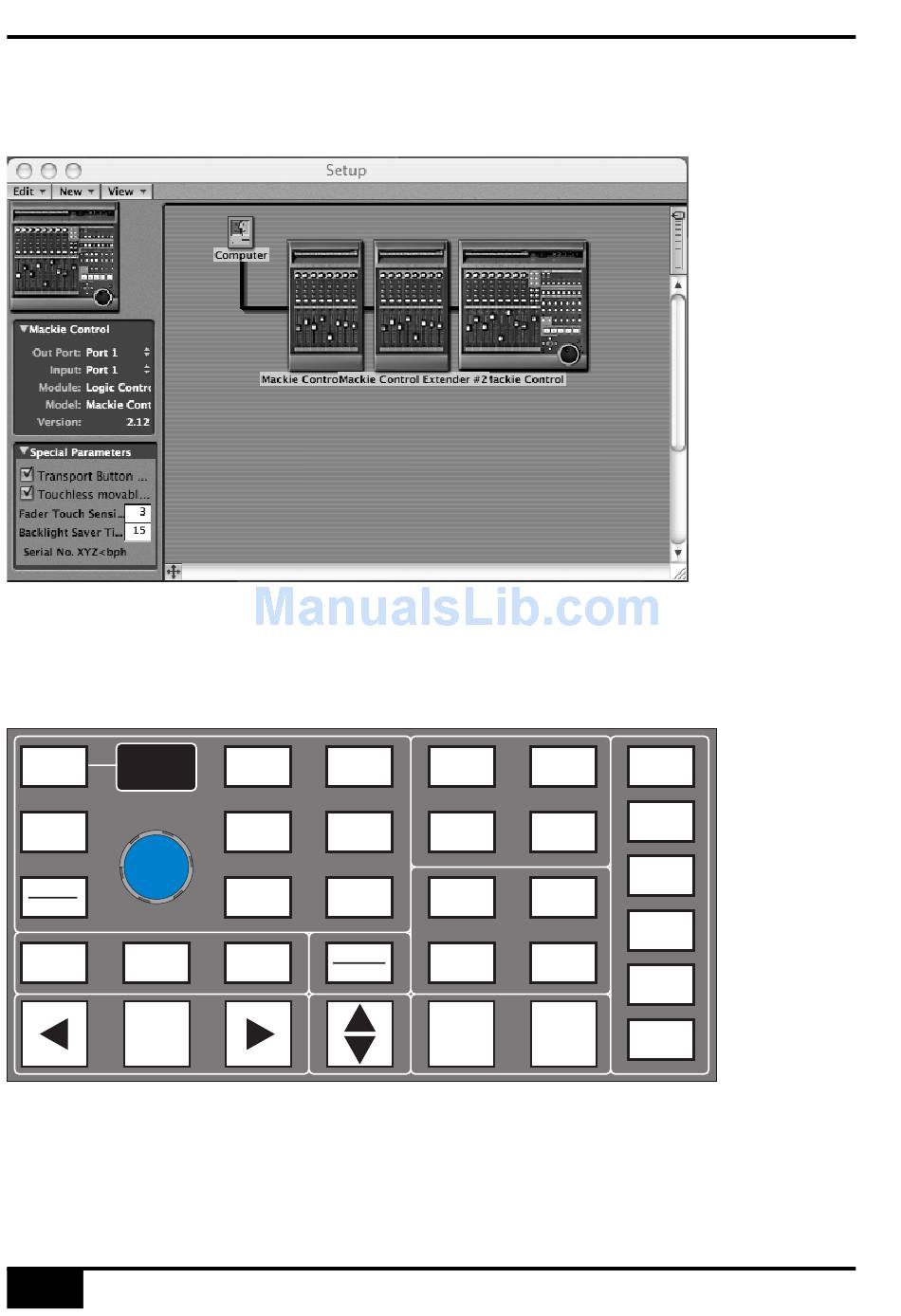

The AWS emulates a Mackie Control plus two Mackie XT fader expanders. The Logic Control Surface set up should
be configured as shown below in the Logic Preferences menu
This layout ensures that when the channel V-Pots are used to select master functions, they will be located next to
the AWS physical master section not at the far end of the console.
AWS Logic Control Key Layout
GLOBAL
CHANNEL
NAME
VALUE
Push to Flip
EDIT
RDY
CHANNEL
Major changes compared to the HUI front panel are Automation modes replacing the Screen display select keys
and the inclusion of the MARKER and NUDGE functions. GLOBAL uses the 8x8 matrix keys to select the different
view options. CHANNEL is unchanged and assigns the AWS channel gain element to the D-Pot. The Encoder
switch is used to 'flip' parameters on to the fader but the encoder itself has no function. The Display indicates D-
Pot mode with a two-character label. Plug Ins are controlled from the channel D-Pots so there is no longer an 'EDIT'
select mode for the channel SEL key.
5 a - 4
AWS 900+ Owner's Manual
TRACK
SEND
PAN
PLUG-IN
EQ INST
SMPTE
SEL
BEATS
SAVE UNDO
ENTER
ESC
SHIFT OPTION
CTRL ALT
NUDGE
MARKER
READ
WRITE
TRIM
TOUCH
LATCH
GROUP
