Solid State Logic AWS 900+ Owner's Manual page 75

DAW Control Guide
Hi-Resolution Parameter Display Mode
Holding down the OPTION button while editing a plug-in parameter will show a 9-character version of the
parameter value at the top of the Plug-In Editor display.:
The ALT button can be used to open or close the plug-in/pop-up window at any time.
Comparing Your Changes
Pressing the COMPARE button allows you to compare any changes made to plug-in parameters with the values
stored before editing.
As soon as you change any parameter the COMPARE box will turn yellow.
Pressing the COMPARE button toggles between the settings when you starting editing parameters and the current
settings.
Note that the plug-in window must be opened before this function becomes available.
Bypassing Plug-ins
The BYPASS button allows a plug-In to be toggled in/out of the signal path in PARAM mode. In INSERT mode,
individual plug-ins can be bypassed by holding down the BYPASS button and pushing the D-Pot that corresponds
to the insert you want to bypass.
The channel SEL switch can be used to bypass all the plug-ins on a channel - see page 5-8.
D-Pot Sensitivity
The D-Pots for the Plug-in Editor can be set to one of two modes: Fixed or Velocity-sensitive. In Fixed mode,
turning a knob will range through the whole list of available parameters. This makes it very quick to search through
long lists. Holding down the ALT button will enable a finer resolution scroll.
In Velocity-sensitive mode the speed of scrolling is dependent upon how quickly you turn the D-Pot. To toggle
between the two modes press the F5 button in the Fkys menu.
Note that the channel D-Pots only operate in Fixed mode.
5 - 1 8
AWS 900+ Owner's Manual

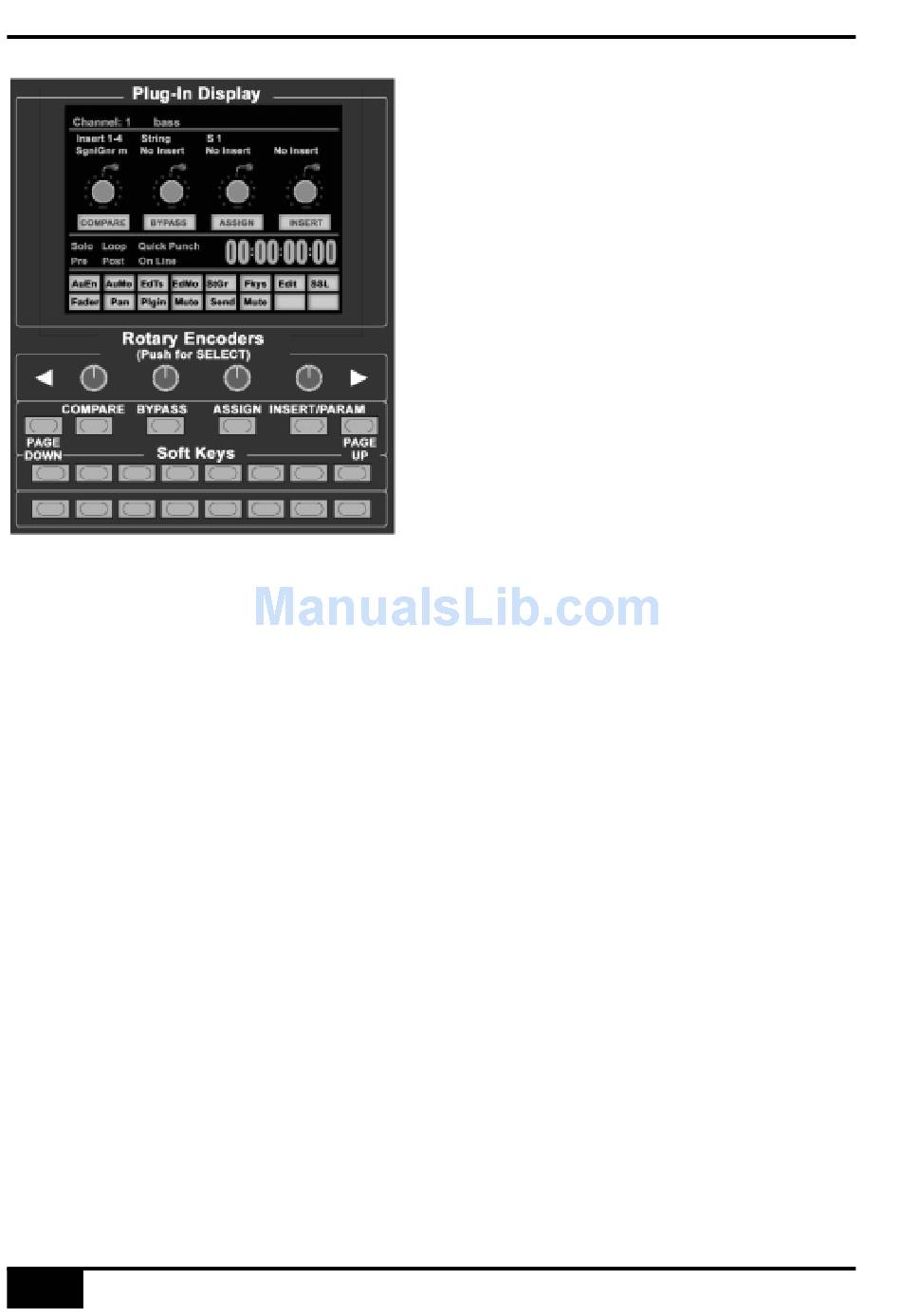

Editing Plug-In Parameters
(Parameter Mode)
Selecting a Plug-In to Edit
In Insert or Assign mode press the plug-in D-Pot for the
insert you wish to edit or in Insert mode select
Parameter mode by pressing the INSERT/PARAM soft
button.
To exit from Parameter mode press the PARAM soft
key (if you want to edit a different plug-in) or the
ASSIGN soft key (if you want to change assignment).
Changing Plug-in Parameters
Once you have selected a channel and a plug-in for
editing, the four D-Pots and their switches control the on
screen parameters derived from the DAW plug-in. The
names of the currently selected controls and their
values are shown above the on-screen D-Pots.
The PAGE UP and PAGE DOWN buttons can be used
to access all the plug-in controls.
