Foldback And Headphone Outputs - Solid State Logic AWS 900+ Owner's Manual

2
3
4
1
2
The MIX 1 pot controls the contribution of the Record bus (REC) and/or the output of the EXT B (EXT) source
selector, to the foldback mix.
3
The MIX 2 pot controls the contribution of the Mix bus (MIX) and/or the output of the EXT B (EXT) source
selector, to the foldback mix.
In addition, Cue Stereo A (ST A) and the stereo downmix control room monitor signal (ST MON)
selected as sources. Foldback B uses Cue Stereo B as its cue source.
Dedicated F/B A and F/B B talkback buttons are used to add talkback to the foldback outputs.

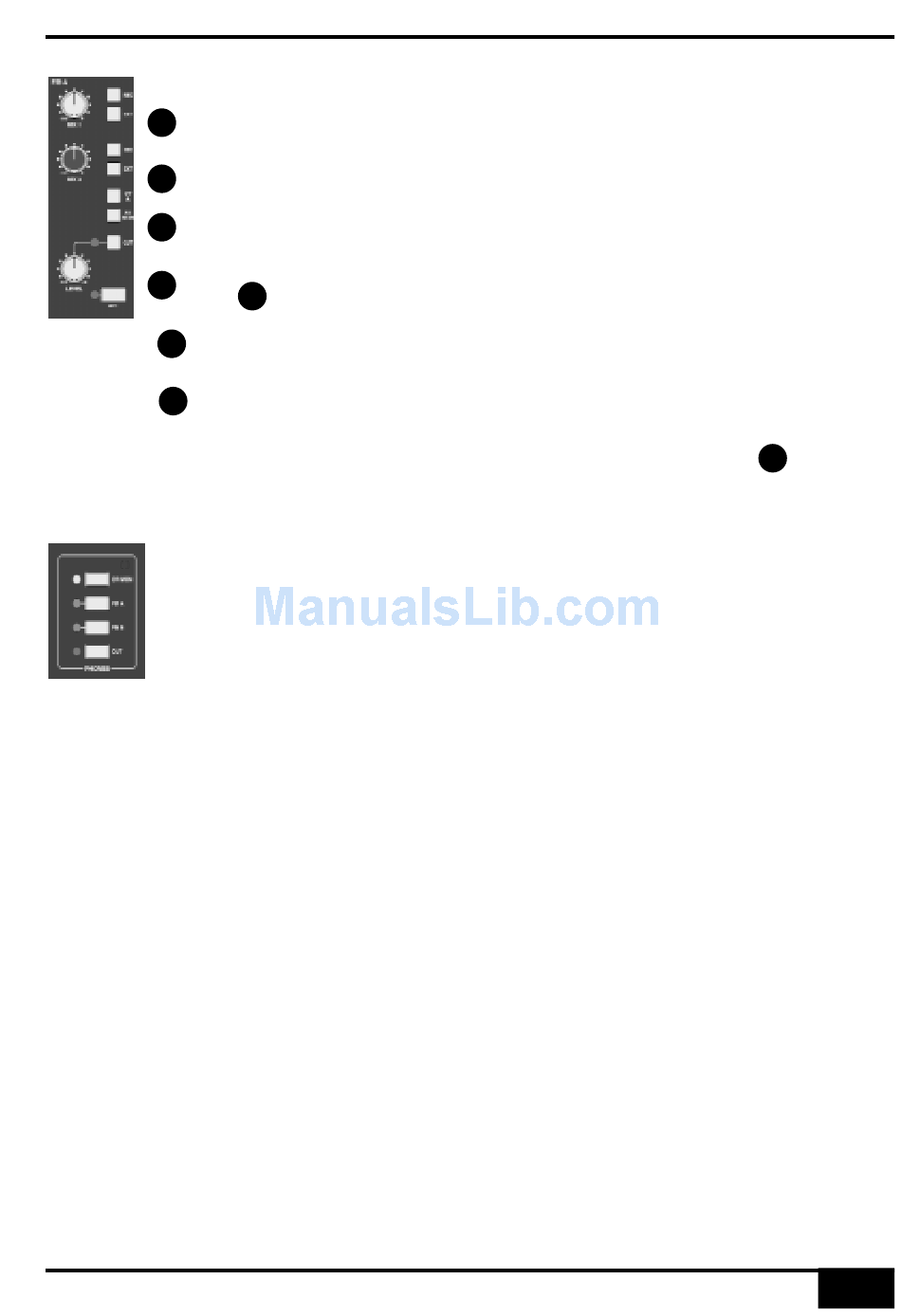

Foldback and Headphone Outputs

The console provides three stereo outputs – Foldback A and B, intended for use in the
studio for headphones or LS playback, plus a stereo headphone feed for control room
use; sockets for this are provided on the knee panel beneath the centre section. The
foldback outputs feed jacks on the centre section connector panel, from where they
may be connected to amplifier inputs.
The master controls for Foldback A and B are provided by two identical sections (see
left – one section only shown).
Each output has a dedicated LEVEL control, CUT, AFL, and six source selector
1
buttons with associated level controls:
A small area of the monitor control panel (see left) provides source selection (control
room monitor and foldbacks) and a CUT function for the console's stereo headphone
output. Two headphone sockets are provided below the motion control panel.
The level of this output is set using the PHONES button in the 'MISC LEVELS' section
of the monitor panel, in conjunction with the main monitor pot.
Cue/FX and Foldback Masters
AWS 900+ Owner's Manual
4
may be
4 - 2 5
