Unpacking The Console

IMPORTANT SAFETY INFORMATION
The weight of an AWS 900+ console is approximately 112Kg, (or 100Kg with the legs removed). Please ensure
that sufficient labour is available during removal of the console from its packaging, and when moving the
console into position. It is recommended that at least four people are available when lifting.
The AWS 900+ is supplied in a wooden crate with the legs in a smaller separate crate.
Using a large screwdriver or pry-bar carefully open the crate containing the console. The crate is not designed
to be reusable so does not have to be removed intact. With the crate sides removed there will be sufficient
space for four people to lift the console clear from the base of the crate.
Note: The console is shipped with its trim fitted, avoid using the trim as a lifting point.
Do not lift the front of the console by using the buffer alone.

Attaching the legs

Again, it is recommended that four people are available to perform this operation
The bolts required to attach the legs are shipped in the same crate as the legs. A 6mm hex-key is provided as
one of the tools included in the AWS 900+ console crate.
The console should first be rolled onto its back. Ensure that ample padding is provided – such as blankets or
bubble-wrap – to support the rear panels (the PSU heatsink fins protrude from the rear of the console, and care
must be taken not to damage them).

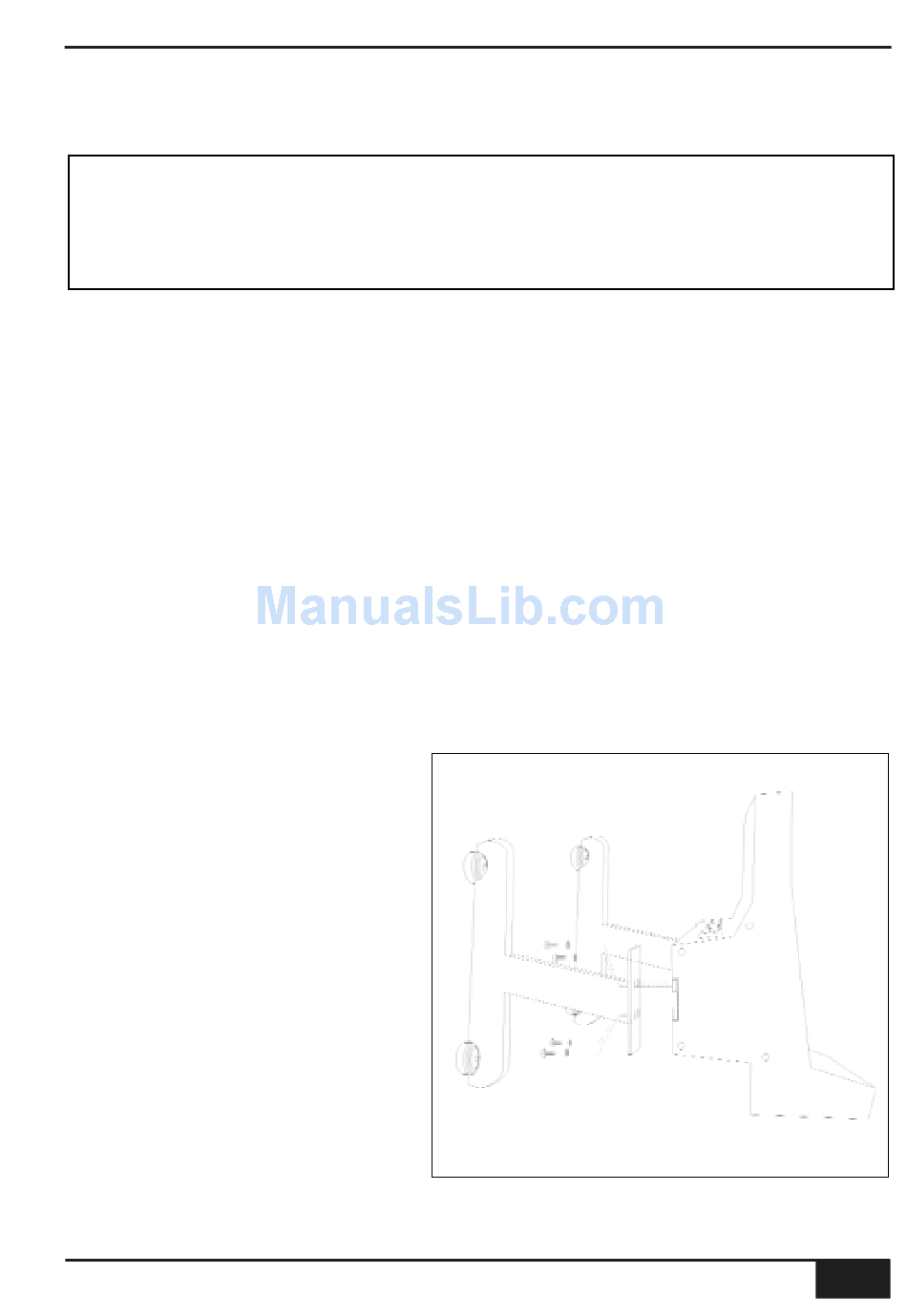

Position the legs on the console beam and
attach the M10 bolts using the 6mm hex-key
supplied. There are four bolts per leg.
Using four people, the console may now be
tipped forward onto its feet. When the console
is in position, the feet can be slightly adjusted
to compensate for an uneven floor. Do not
unscrew the feet by more than 15mm.
