Appendices
The Channel Meter Panel (629923X1)

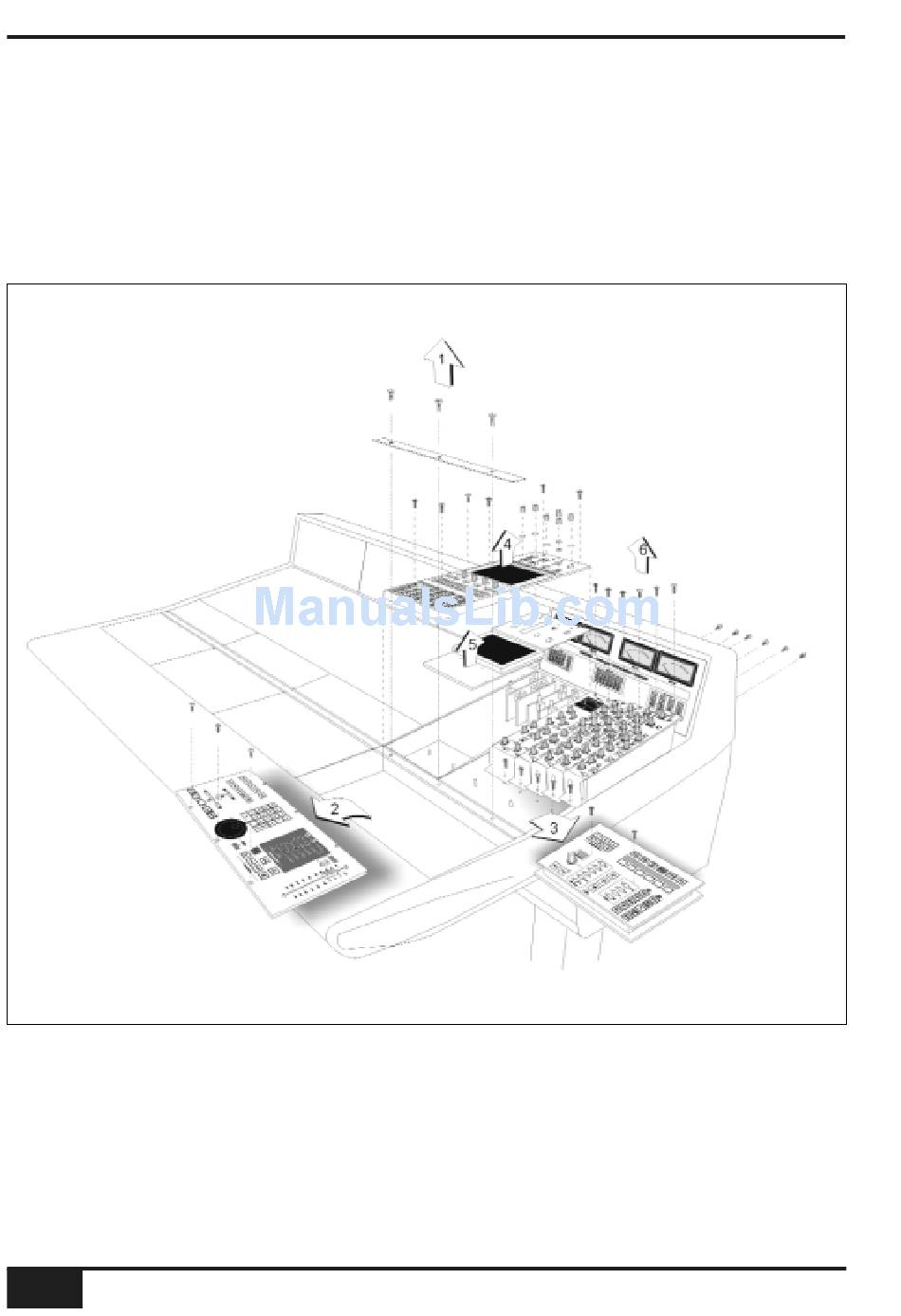

First remove the top trim by unscrewing the five screws that secure it to the console frame, and lift it clear. Now
refer to the illustration on page A-10. Each meter panel is secured by four screws across the top. Remove these
and lift the meter panel clear, taking care to disconnect the ribbon connectors.
Centre Section Cards
A - 1 4
AWS 900+ Owner's Manual
