Signal Processor Routing

In keeping with SSL's legendary range of large-format consoles, the AWS 900+ provides comprehensive signal
processor routing facilities. Each channel strip has access to up to three separate signal processing devices:
• 4-band parametric equaliser and high pass filter
• Assignable dynamics section comprising a compressor/limiter and expander/gate
• Any device connected the channel insert point
1
2
4 - 1 2
AWS 900+ Owner's Manual
Three buttons – IP, OP,
where each processor will be placed in the signal chain. Three
additional buttons are provided to switch each device into circuit:
2
EQ IN, INS(ert) IN
Two further buttons – Dynamics 1 and 2
on one or other of the assignable dynamics sections.
The table below shows the routing possibilities along with some
applications for the insert send/return where it is not needed for
use with an external processor (note that selected buttons are
shown with white text on a black background).

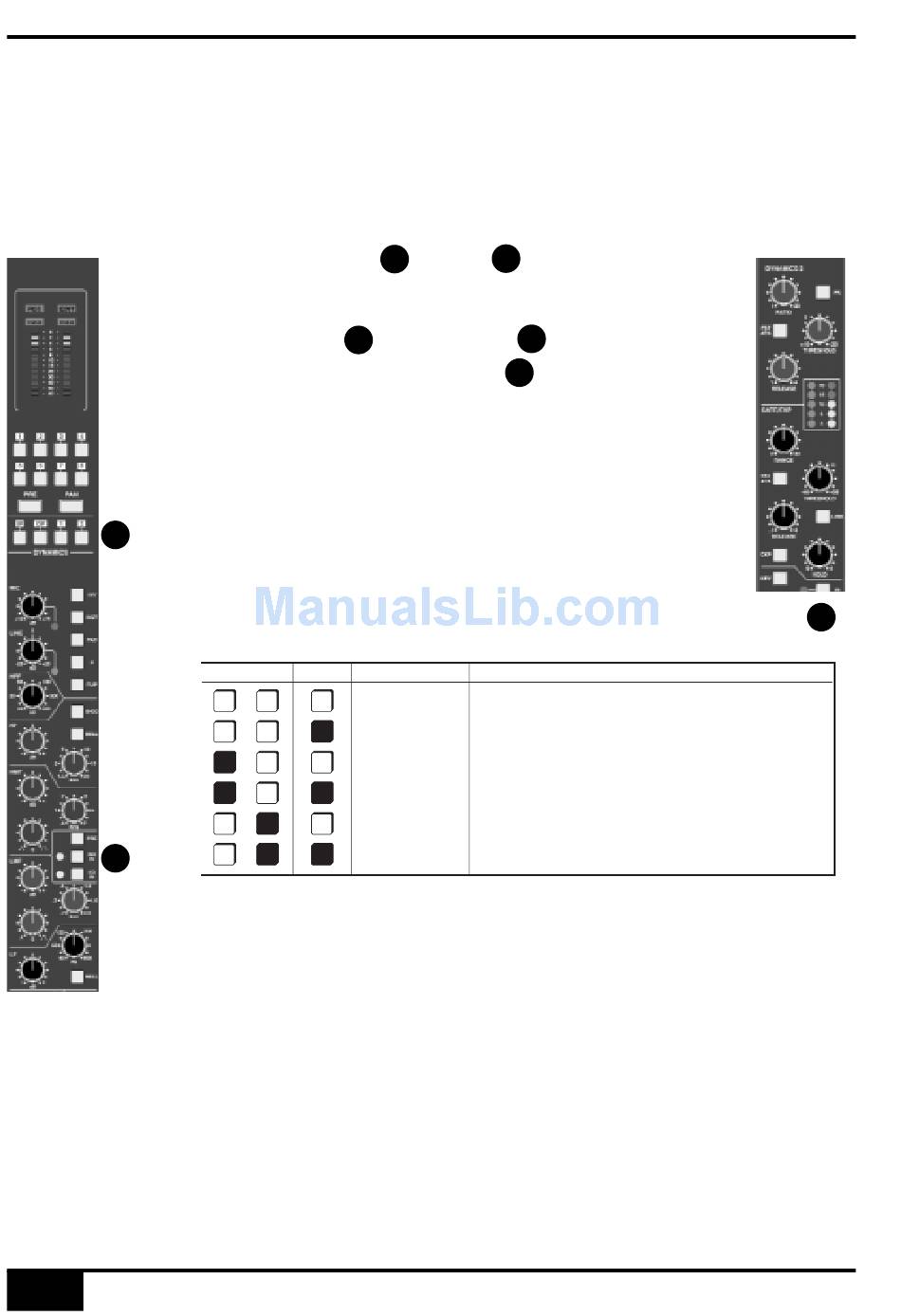

DYNAMICS INSERT PROCESS ORDER
EQ > DYN > INS
IP OP PRE
INS > EQ > DYN
IP OP PRE
DYN > EQ > INS
IP OP PRE
DYN > INS > EQ
IP PRE
OP
EQ > INS > DYN
IP OP PRE
IP OP PRE INS > EQ > DYN
Note that the dynamics processors may be keyed from an external signal.
See page 4-18 for further details.
2
1
and PRE are used to determine
3
, and dynamics IN
1
are used to select
ADDITIONAL 'NON INSERT' APPLICATIONS
Pre fader send to recorder; external mic pre direct to channel fader
Channel mic pre to recorder; external mic pre to channel processing
Pre fader send to recorder; external mic pre direct to channel fader
Channel mic pre to recorder; external mic pre to channel processing
3
