GLCP keys
Menu keys

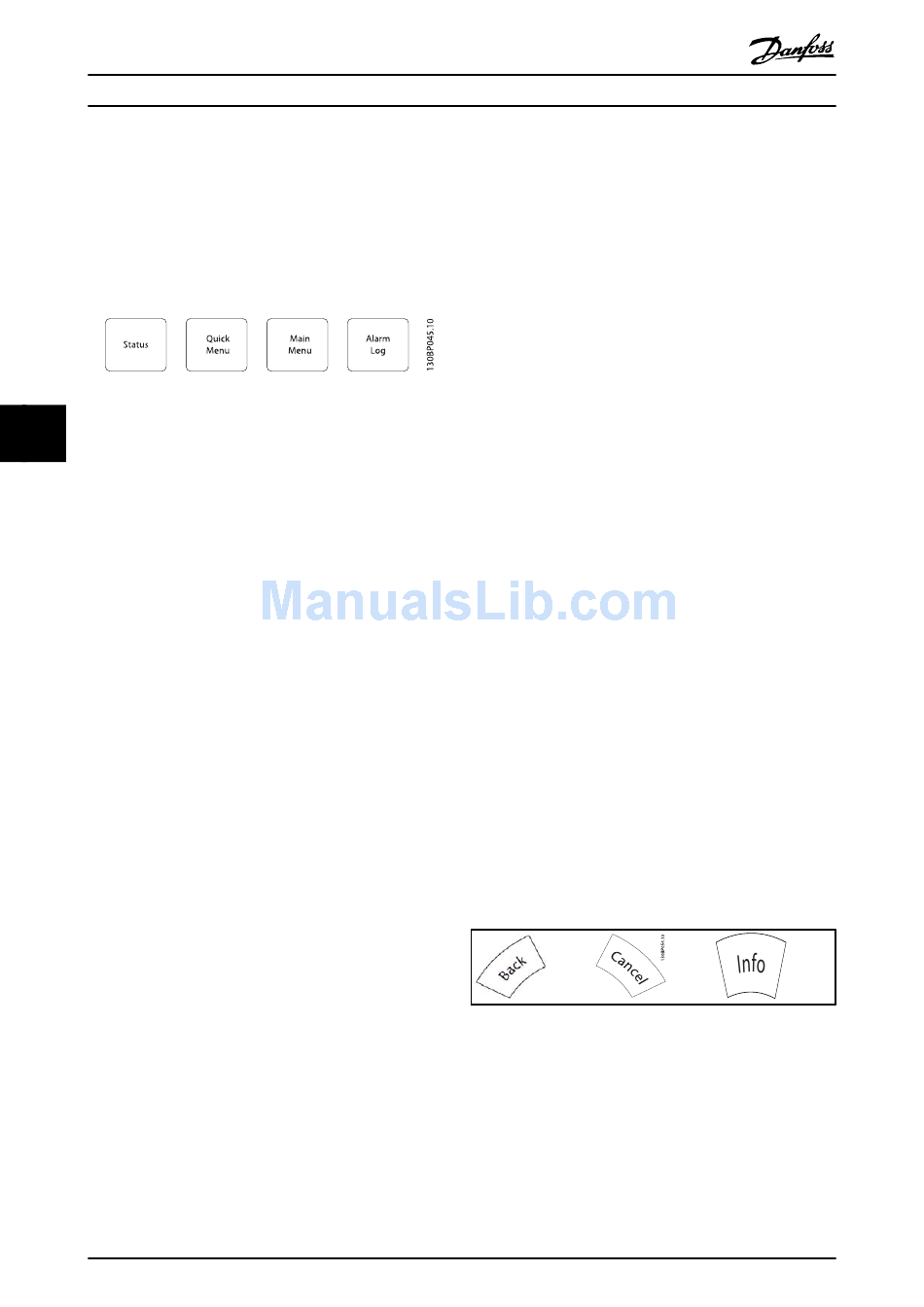

The menu keys are divided into functions. The keys below the
display and indicator lamps are used for parameter set-up,
including choice of display indication during normal
operation.
[Status]
6 6
indicates the status of the frequency converter and/or the
motor. 3 different readouts can be chosen by pressing the
[Status] key:
5 line readouts, 4 line readouts or Smart Logic Control.
Use [Status] for selecting the mode of display or for changing
back to Display mode from either the Quick Menu mode, the
Main Menu mode or Alarm mode. Also use the [Status] key to
toggle single or double read-out mode.
[Quick Menu]
allows quick set-up of the frequency converter. The most
common VLT HVAC Drive functions can be programmed here.
The [Quick Menu] consists of:
- My Personal Menu
- Quick Set-up
- Function Set-up
- Changes Made
- Loggings
The Function set-up provides quick and easy access to all
parameters required for the majority of VLT HVAC Drive
applications including most VAV and CAV supply and return
fans, cooling tower fans, Primary, Secondary and Condenser
Water Pumps and other pump, fan and compressor applica-
tions. Amongst other features it also includes parameters for
selecting which variables to display on the LCP, digital preset
speeds, scaling of analog references, closed loop single zone
and multi-zone applications and specific functions related to
Fans, Pumps and Compressors.
The Quick Menu parameters can be accessed immediately
unless a password has been created via par. 0-60 Main Menu
Password, par. 0-61 Access to Main Menu w/o Password,
par. 0-65 Personal Menu Password or par. 0-66 Access to Person-
al Menu w/o Password.
It is possible to switch directly between Quick Menu mode and
Main Menu mode.
56
®
VLT HVAC Drive Operating Instructions
[Main Menu]
is used for programming all parameters.The Main Menu
parameters can be accessed immediately unless a password
has been created via par. 0-60 Main Menu Password,
par. 0-61 Access to Main Menu w/o Password, par. 0-65 Personal
Menu Password or par. 0-66 Access to Personal Menu w/o
Password. For the majority of VLT HVAC Drive applications it is
not necessary to access the Main Menu parameters but
instead the Quick Menu, Quick Set-up and Function Set-up
provides the simplest and quickest access to the typical
required parameters.
It is possible to switch directly between Main Menu mode and
Quick Menu mode.
Parameter shortcut can be carried out by pressing down the
[Main Menu] key for 3 seconds. The parameter shortcut allows
direct access to any parameter.
[Alarm Log]
displays an Alarm list of the five latest alarms (numbered A1-
A5). To obtain additional details about an alarm, use the arrow
keys to manoeuvre to the alarm number and press [OK].
Information is displayed about the condition of the frequency
converter before it enters the alarm mode.
The Alarm log button on the LCP allows access to both Alarm
log and Maintenance log.
[Back]
reverts to the previous step or layer in the navigation
structure.
[Cancel]
last change or command will be cancelled as long as the
display has not been changed.
[Info]
displays information about a command, parameter, or
function in any display window. [Info] provides detailed
information when needed.
Exit Info mode by pressing either [Info], [Back], or [Cancel].
®
