Electrical Installation
NOTE
With single phase A3 use L1 and L2 terminals.
4.1.7 Mains Connection for A4/A5
4 4

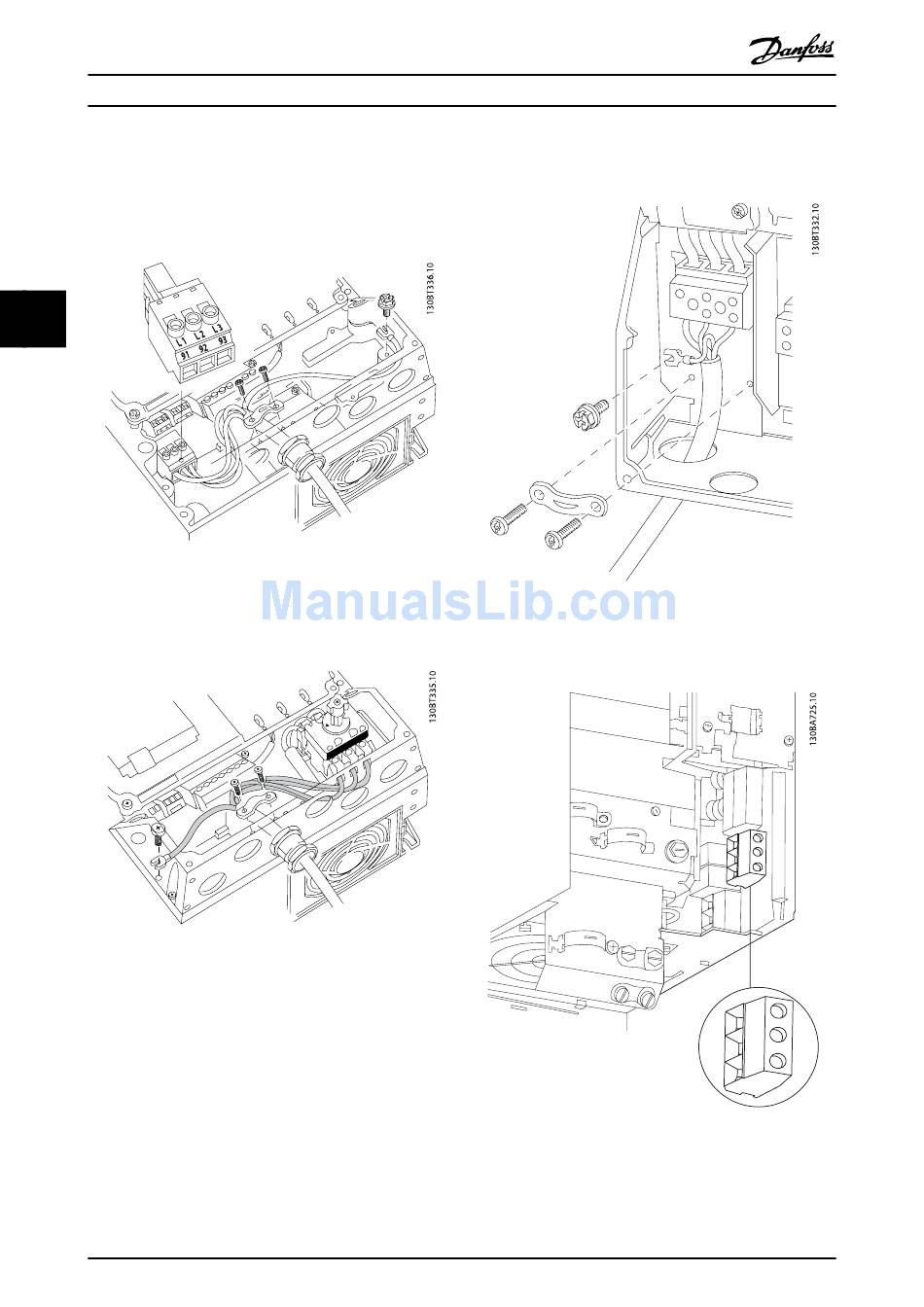

Illustration 4.7: How to connect to mains and earthing
without mains disconnect switch. Note that a cable clamp
Illustration 4.8: How to connect to mains and earthing
NOTE
With single phase A5 use L1 and L2 terminals.
28
VLT
is used.
with mains disconnect switch.
MG.11.AD.02 - VLT
®
HVAC Drive Operating Instructions
4.1.8 Mains Connection for B1, B2 and B3
Illustration 4.9: How to connect to mains and earthing for
Illustration 4.10: How to connect to mains and earthing
®
is a registered Danfoss trademark
B1 and B2
for B3 without RFI.
