Electrical Installation
VLT
HVAC Drive Operating Instructions
4.1.9 Mains Connection for B4, C1 and C2
4
4

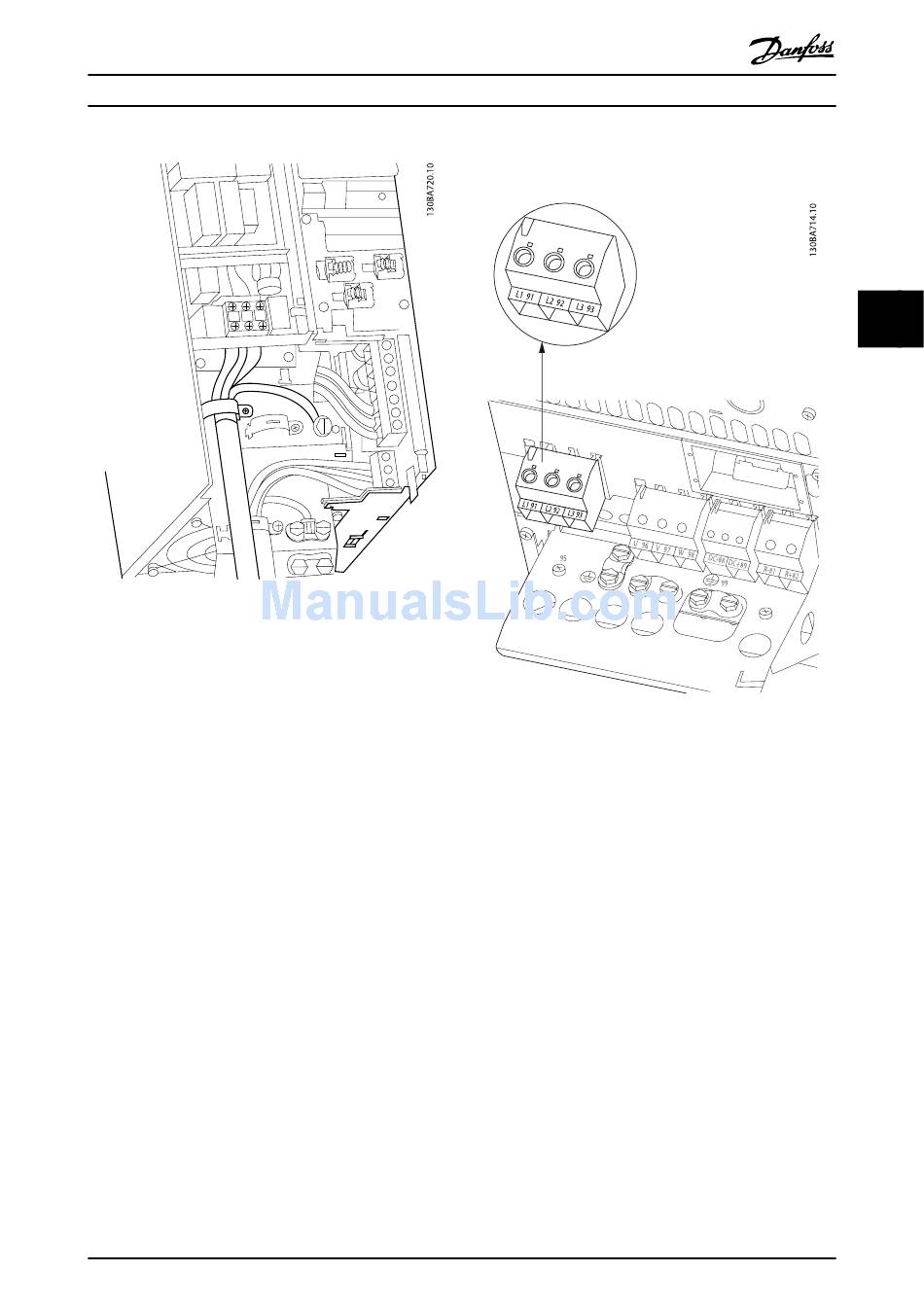

Illustration 4.11: How to connect to mains and earthing
for B3 with RFI.
NOTE
With single phase B1 use L1 and L2 terminals.
Illustration 4.12: How to connect to mains and earthing
for B4.
NOTE
For correct cable dimensions please see the section
General Specifications at the back of this manual.
®
MG.11.AD.02 - VLT
is a registered Danfoss trademark
29
