6 How to Operate the Frequency
Converter
6.1.1 Three Ways of Operating
The frequency converter can be operated in three ways:
1. Graphical Local Control Panel (GLCP), see 5.1.2
2. Numeric Local Control Panel (NLCP), see 5.1.3
3. RS-485 serial communication or USB, both for PC
connection, see 5.1.4
If the frequency converter is fitted with fieldbus option, please
refer to relevant documentation.
6 6

6.1.2 How to Operate Graphical LCP (GLCP)

The following instructions are valid for the GLCP (LCP 102).
The GLCP is divided into four functional groups:
1. Graphical display with Status lines.
2. Menu keys and indicator lights (LED's) - selecting
mode, changing parameters and switching between
display functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).

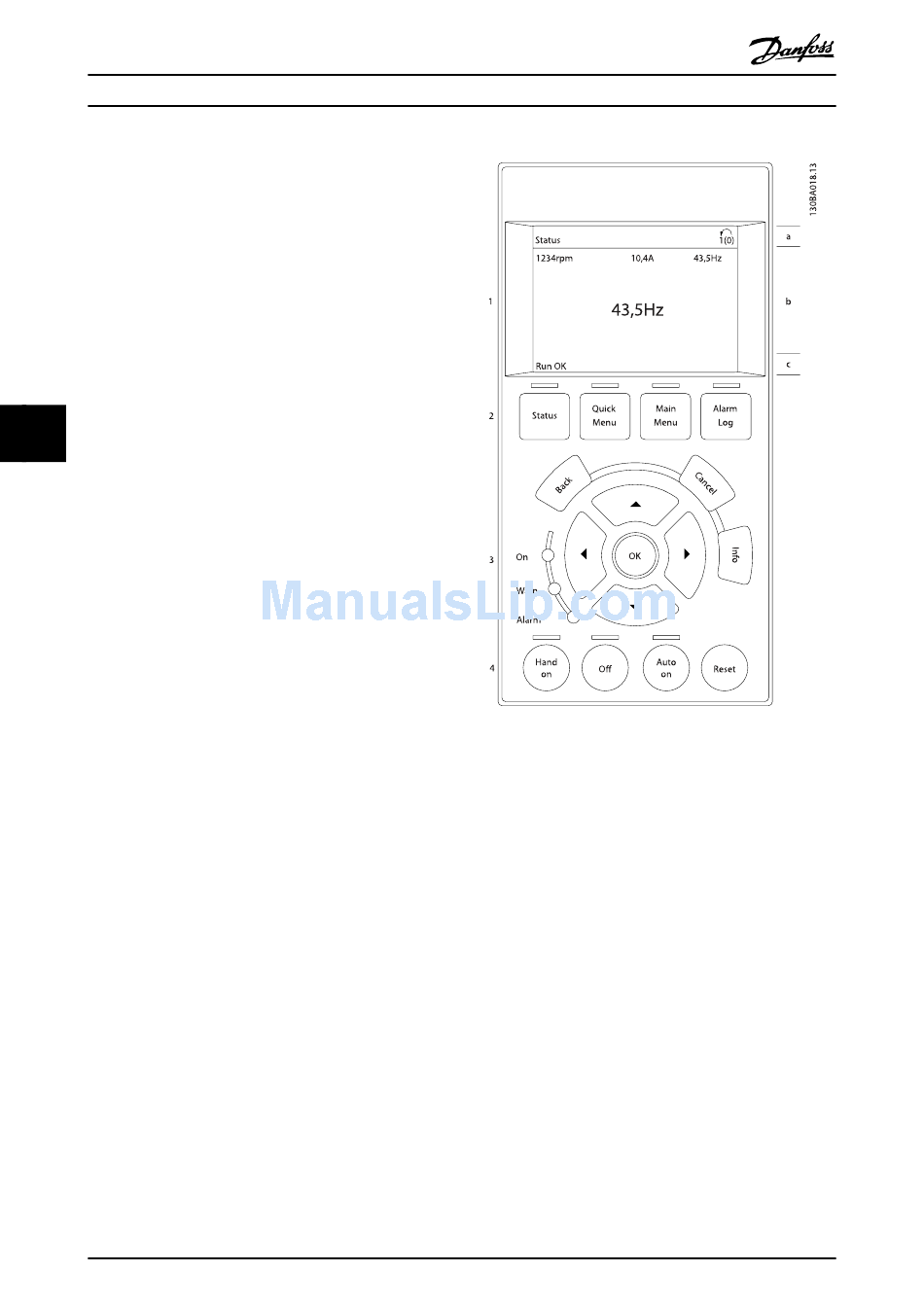

Graphical display:
The LCD-display is back-lit with a total of 6 alpha-numeric
lines. All data is displayed on the LCP which can show up to
five operating variables while in [Status] mode.
Display lines:
a. Status line: Status messages displaying icons and
graphics.
b. Line 1-2: Operator data lines displaying data and
variables defined or chosen by the user. By pressing
the [Status] key, up to one extra line can be added.
c. Status line: Status messages displaying text.
54
®
VLT HVAC Drive Operating Instructions
The display is divided into 3 sections:
Top section (a) shows the status when in status mode or up to
2 variables when not in status mode and in the case of Alarm/
Warning.
The number of the Active Set-up (selected as the Active Set-up
in par. 0-10 Active Set-up) is shown. When programming in
another Set-up than the Active Set-up, the number of the Set-
up being programmed appears to the right in brackets.
The Middle section (b) shows up to 5 variables with related
unit, regardless of status. In case of alarm/warning, the
warning is shown instead of the variables.
The Bottom section (c) always shows the state of the frequen-
cy converter in Status mode.
It is possible to toggle between three status read-out displays
by pressing the [Status] key.
Operating variables with different formatting are shown in
each status screen - see below.
®
