Electrical Installation
4.1.13 Motor Connection for A2 and A3
Follow these drawings step by step for connecting the motor
to the frequency converter.

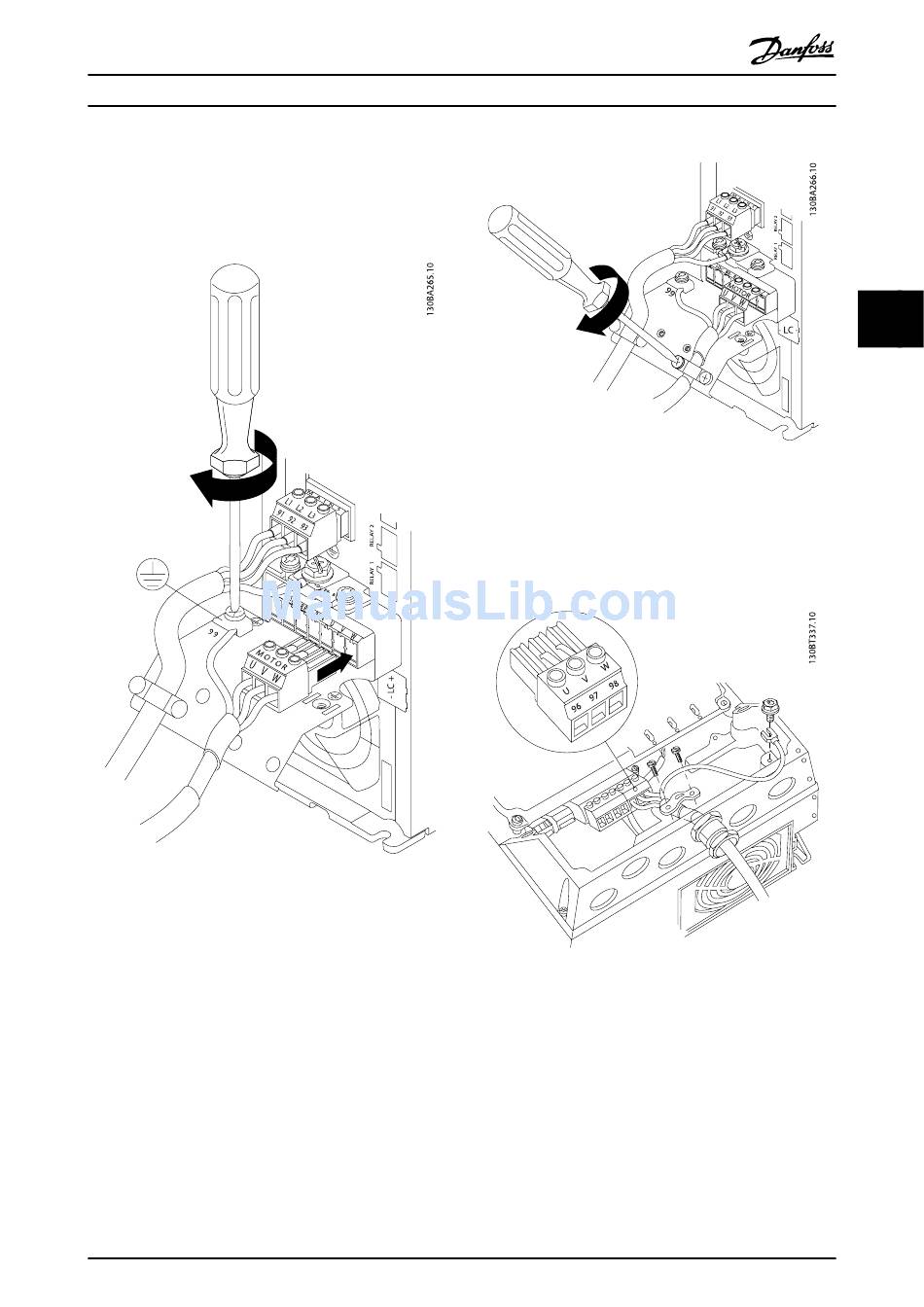

Illustration 4.17: First terminate the motor earth, then
place motor U, V and W wires in plug and tighten.
®
VLT HVAC Drive Operating Instructions
4.1.14 Motor Connection for A4/A5
®
MG.11.AD.02 - VLT is a registered Danfoss trademark
Illustration 4.18: Mount cable clamp to ensure 360 degree
connection between chassis and screen, note the outer
insulation of the motor cable is removed under the clamp.
Illustration 4.19: First terminate the motor earth, then
place motor U, V and W wires in terminal and tighten.
Please ensure that the outer insulation of the motor cable
is removed under the EMC clamp.
