Electrical Installation
4.1.6 Mains Connection for A2 and A3

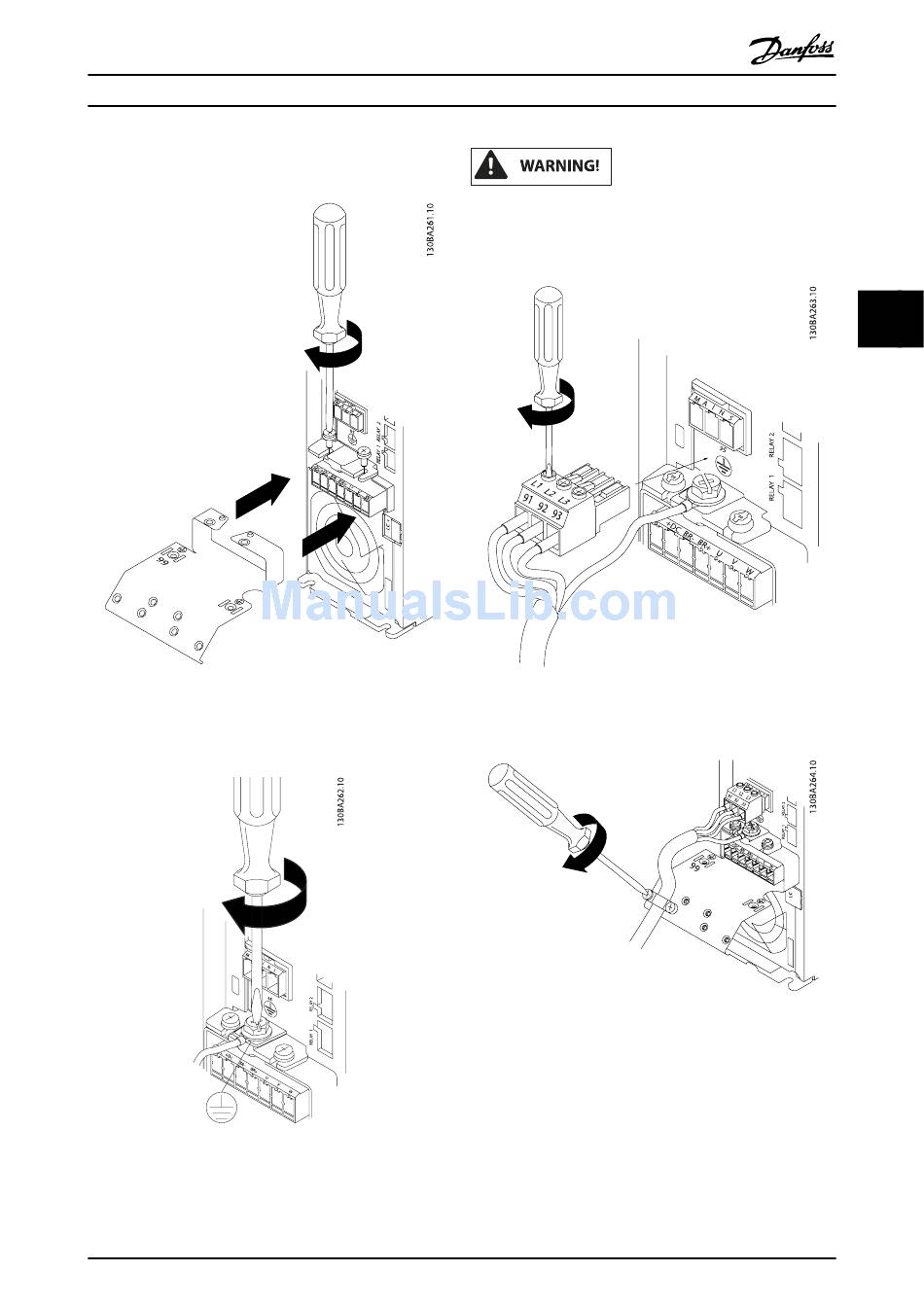

Illustration 4.3: First mount the two screws on the
mounting plate, slide it into place and tighten fully.
Illustration 4.4: When mounting cables, first mount and
tighten earth cable.
®
VLT HVAC Drive Operating Instructions
The earth connection cable cross section must be at
least 10 mm
separately according to EN 50178/IEC 61800-5-1.
®
MG.11.AD.02 - VLT is a registered Danfoss trademark
2
or 2 rated mains wires terminated
Illustration 4.5: Then mount mains plug and tighten wires.
Illustration 4.6: Finally tighten support bracket on mains
wires.
