Electrical Installation

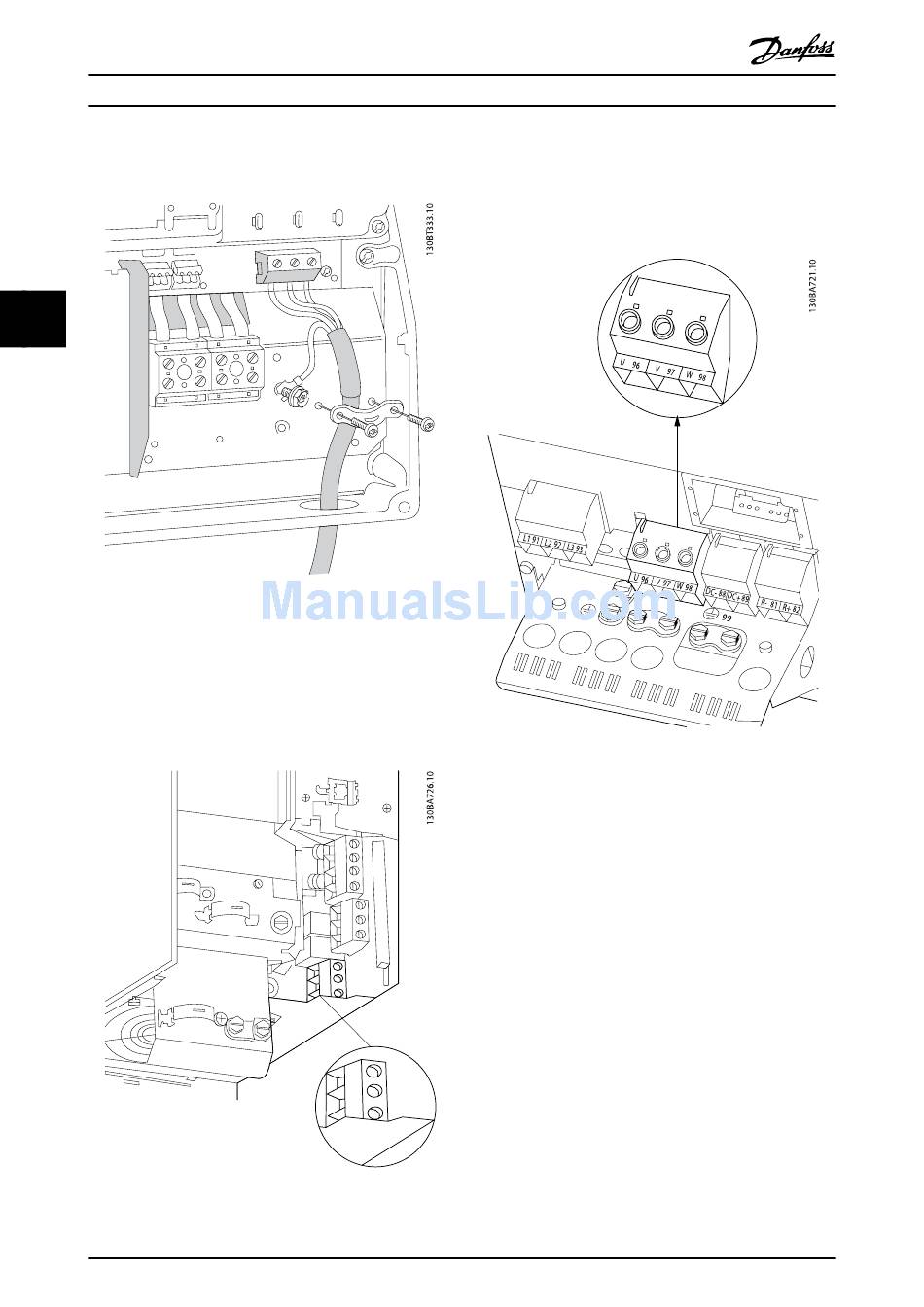

4.1.15 Motor Connection for B1 and B2
4 4
First terminate the motor earth, then Place motor U, V and W
wires in terminal and tighten. Please ensure that the outer
insulation of the motor cable is removed under the EMC
clamp.
4.1.16 Motor Connection for B3 and B4
34
®
VLT HVAC Drive Operating Instructions
First terminate the motor earth, then Place motor U, V and W
wires in terminal and tighten. Please ensure that the outer
insulation of the motor cable is removed under the EMC
clamp.
First terminate the motor earth, then Place motor U, V and W
wires in terminal and tighten. Please ensure that the outer
insulation of the motor cable is removed under the EMC
clamp.
®
