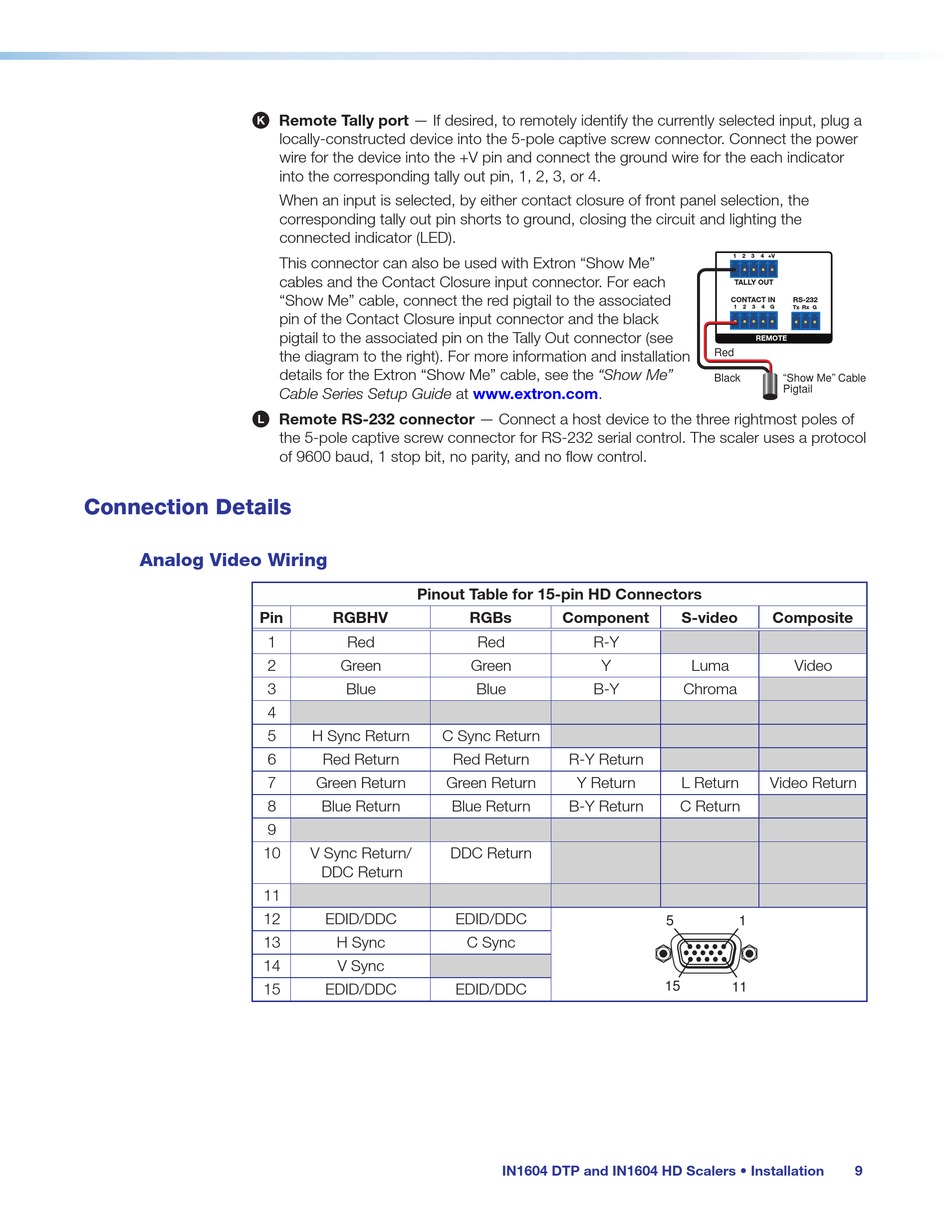

Connection Details

Analog Video Wiring

Pin
Remote Tally port — If desired, to remotely identify the currently selected input, plug a
locally-constructed device into the 5-pole captive screw connector. Connect the power
wire for the device into the +V pin and connect the ground wire for the each indicator
into the corresponding tally out pin, 1, 2, 3, or 4.
When an input is selected, by either contact closure of front panel selection, the
corresponding tally out pin shorts to ground, closing the circuit and lighting the
connected indicator (LED).
This connector can also be used with Extron "Show Me"
cables and the Contact Closure input connector. For each
"Show Me" cable, connect the red pigtail to the associated
pin of the Contact Closure input connector and the black
pigtail to the associated pin on the Tally Out connector (see
the diagram to the right). For more information and installation
details for the Extron "Show Me" cable, see the "Show Me"
Cable Series Setup Guide at www.extron.com.
Remote RS-232 connector — Connect a host device to the three rightmost poles of
the 5-pole captive screw connector for RS-232 serial control. The scaler uses a protocol
of 9600 baud, 1 stop bit, no parity, and no flow control.
Pinout Table for 15-pin HD Connectors
RGBHV
1 Red
2 Green
3 Blue
4
5 H Sync Return C Sync Return
6 Red Return
7 Green Return
8 Blue Return
9
10 V Sync Return/
DDC Return
11
12 EDID/DDC
13 H Sync
14 V Sync
15 EDID/DDC
RGBs Component
Red R-Y
Green Y
Blue B-Y
Red Return R-Y Return
Green Return Y Return
Blue Return B-Y Return
DDC Return
EDID/DDC
C Sync
EDID/DDC
IN1604 DTP and IN1604 HD Scalers • Installation
1 2 3 4 +V
TALLY OUT
CONTACT IN RS-232
1 2 3 4 G
Tx Rx G
REMOTE
Red
Black "Show Me" Cable
Pigtail
S-video Composite
Luma Video
Chroma
L Return Video Return
C Return
5 1
15
11
9
