Picture Controls Submenu

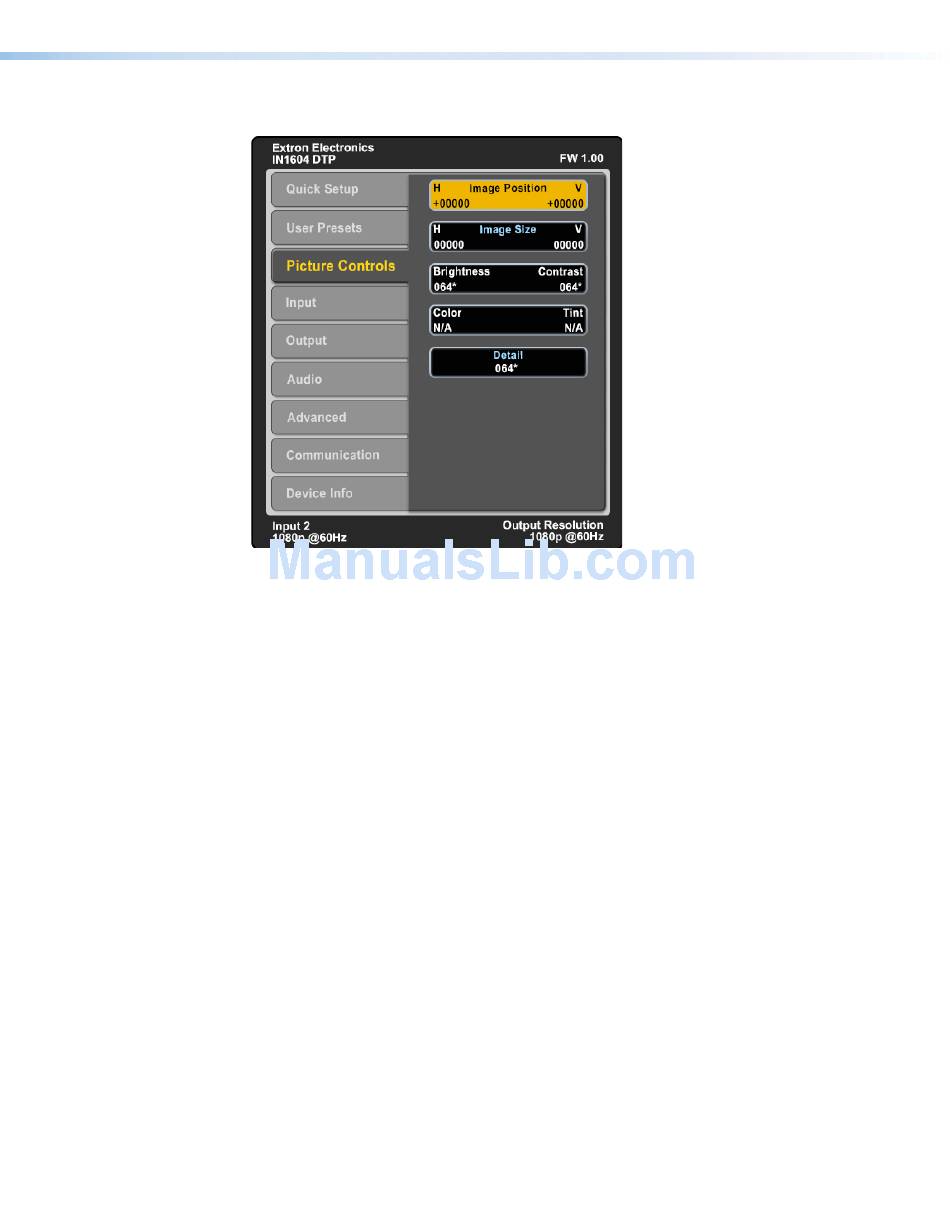

Figure 11. Picture Controls Submenu
The Picture Controls submenu allows adjustment of picture settings.
Image Position — Press the Left and Right buttons to adjust the horizontal (H) position of
the image. Press the Up and Down buttons to adjust the vertical (V) position of the image.
Image Size — Press the Left and Right buttons to select the horizontal (H) size of the
image. Press the Up and Down buttons to adjust the vertical (V) size of the image.
Brightness and Contrast — Press the Left and Right buttons to select the brightness level
of the image. Press the Up and Down buttons to adjust the contrast of the image.
Color and Tint — Press the Left and Right buttons to select the color of the image. Press
the Up and Down buttons to adjust the tint of the image. These settings are only applicable
to analog NTSC, PAL, and SECAM signals.
Detail — Press the Navigation buttons to adjust the detail of the image.
