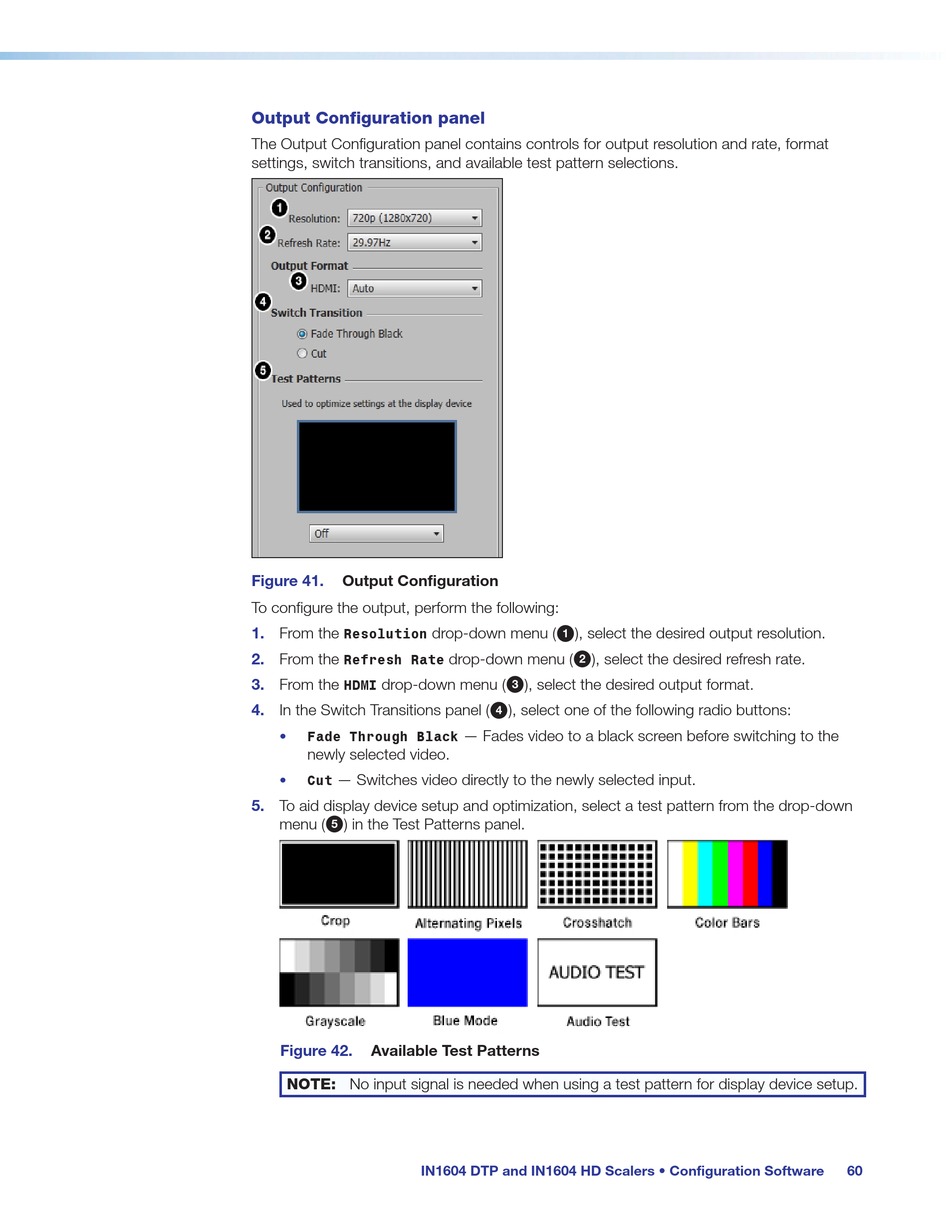

Output Configuration panel
The Output Configuration panel contains controls for output resolution and rate, format
settings, switch transitions, and available test pattern selections.
Figure 41. Output Configuration
To configure the output, perform the following:
1.
From the
Resolution
2. From the
Refresh Rate
3. From the drop-down menu (
HDMI
4. In the Switch Transitions panel (
• Fade Through Black
newly selected video.
— Switches video directly to the newly selected input.
• Cut
5. To aid display device setup and optimization, select a test pattern from the drop-down
menu ( ) in the Test Patterns panel.
5
Figure 42. Available Test Patterns
NOTE: No input signal is needed when using a test pattern for display device setup.
IN1604 DTP and IN1604 HD Scalers • Configuration Software
drop-down menu ( ), select the desired output resolution.
1
drop-down menu ( ), select the desired refresh rate.
2
), select the desired output format.
3
), select one of the following radio buttons:
4
— Fades video to a black screen before switching to the
