Input Configuration panel

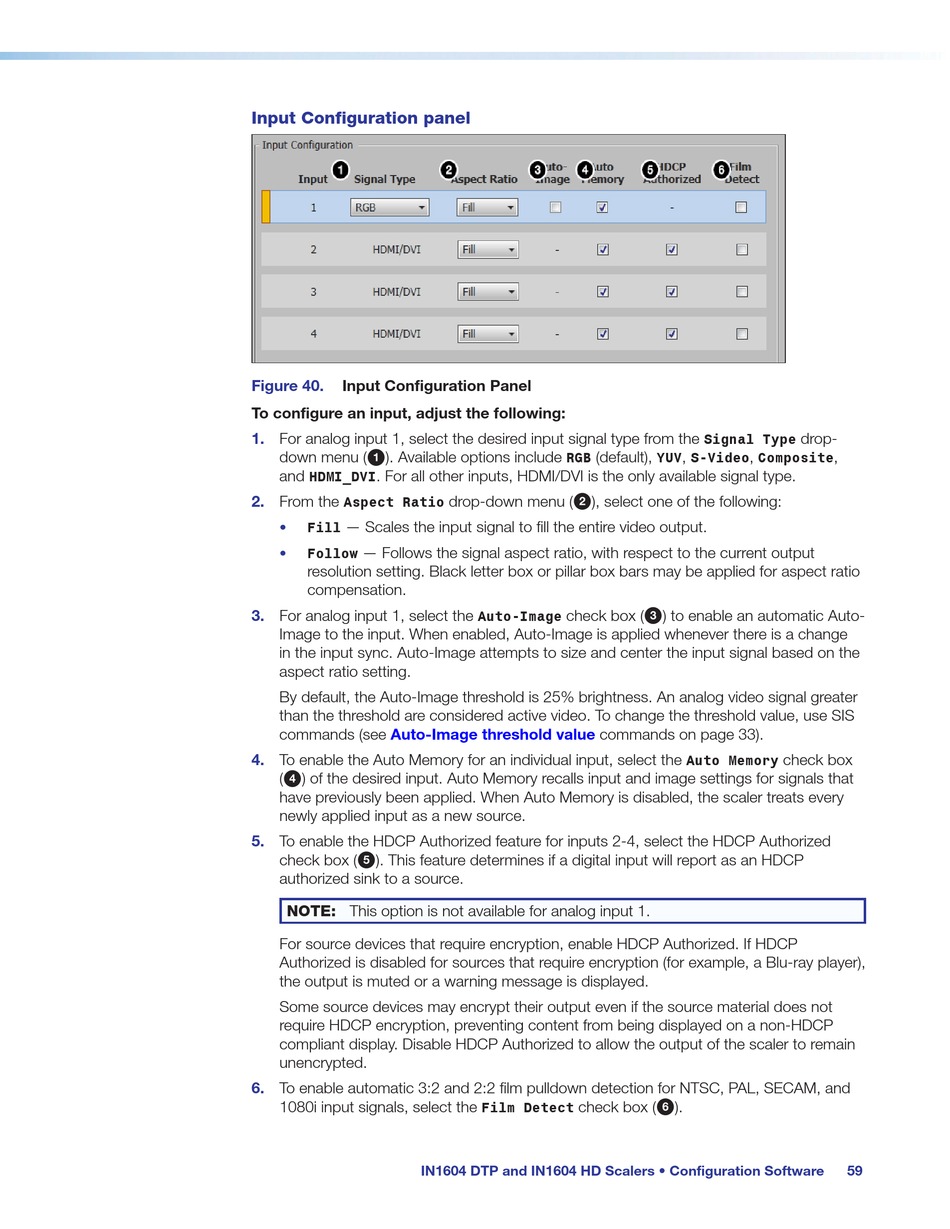

Figure 40. Input Configuration Panel
To configure an input, adjust the following:
1. For analog input 1, select the desired input signal type from the
down menu ( ). Available options include
1
and . For all other inputs, HDMI/DVI is the only available signal type.
HDMI_DVI
2. From the
Aspect Ratio
— Scales the input signal to fill the entire video output.
• Fill
— Follows the signal aspect ratio, with respect to the current output
• Follow
resolution setting. Black letter box or pillar box bars may be applied for aspect ratio
compensation.
3. For analog input 1, select the
Image to the input. When enabled, Auto-Image is applied whenever there is a change
in the input sync. Auto-Image attempts to size and center the input signal based on the
aspect ratio setting.
By default, the Auto-Image threshold is 25% brightness. An analog video signal greater
than the threshold are considered active video. To change the threshold value, use SIS
commands (see Auto-Image threshold value
4. To enable the Auto Memory for an individual input, select the
( ) of the desired input. Auto Memory recalls input and image settings for signals that
4
have previously been applied. When Auto Memory is disabled, the scaler treats every
newly applied input as a new source.
5.
To enable the HDCP Authorized feature for inputs 2-4, select the HDCP Authorized
check box ( ). This feature determines if a digital input will report as an HDCP
5
authorized sink to a source.
NOTE: This option is not available for analog input 1.
For source devices that require encryption, enable HDCP Authorized. If HDCP
Authorized is disabled for sources that require encryption (for example, a Blu-ray player),
the output is muted or a warning message is displayed.
Some source devices may encrypt their output even if the source material does not
require HDCP encryption, preventing content from being displayed on a non-HDCP
compliant display. Disable HDCP Authorized to allow the output of the scaler to remain
unencrypted.
6. To enable automatic 3:2 and 2:2 film pulldown detection for NTSC, PAL, SECAM, and
1080i input signals, select the
IN1604 DTP and IN1604 HD Scalers • Configuration Software
(default),
RGB
drop-down menu ( ), select one of the following:
2
check box (
Auto-Image
commands on page 33).
check box (
Film Detect
drop-
Signal Type
, ,
YUV S-Video Composite
) to enable an automatic Auto-
3
check box
Auto Memory
).
6
,
