Presets panel
Presets save output settings to be recalled (see the following table for a comparison of
saved settings for input and user presets).
Setting
Horizontal and Vertical Start
Active Lines
Pixel Phase
Active Pixels
Total Pixels
Input Type
Audio Gain and Attenuation
Film Detect
Brightness and Contrast
Color and Tint
Detail
Image Size and Position
Preset Name
NOTE: User presets can be saved on one input resolution and recalled on a different
one. Input presets can only be recalled on the same input resolution that was present
when the preset was saved.

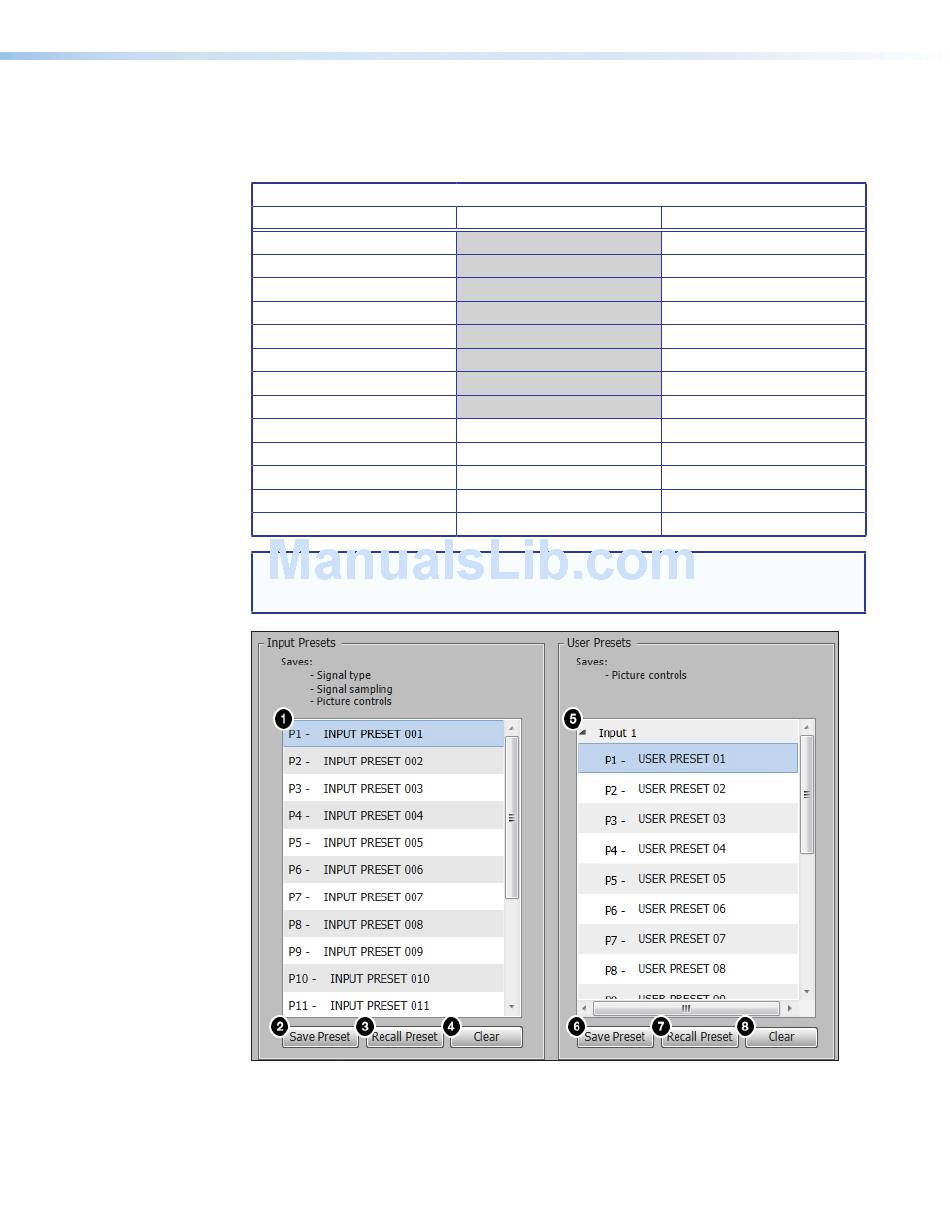

Figure 48. Input and User Presets Panels
