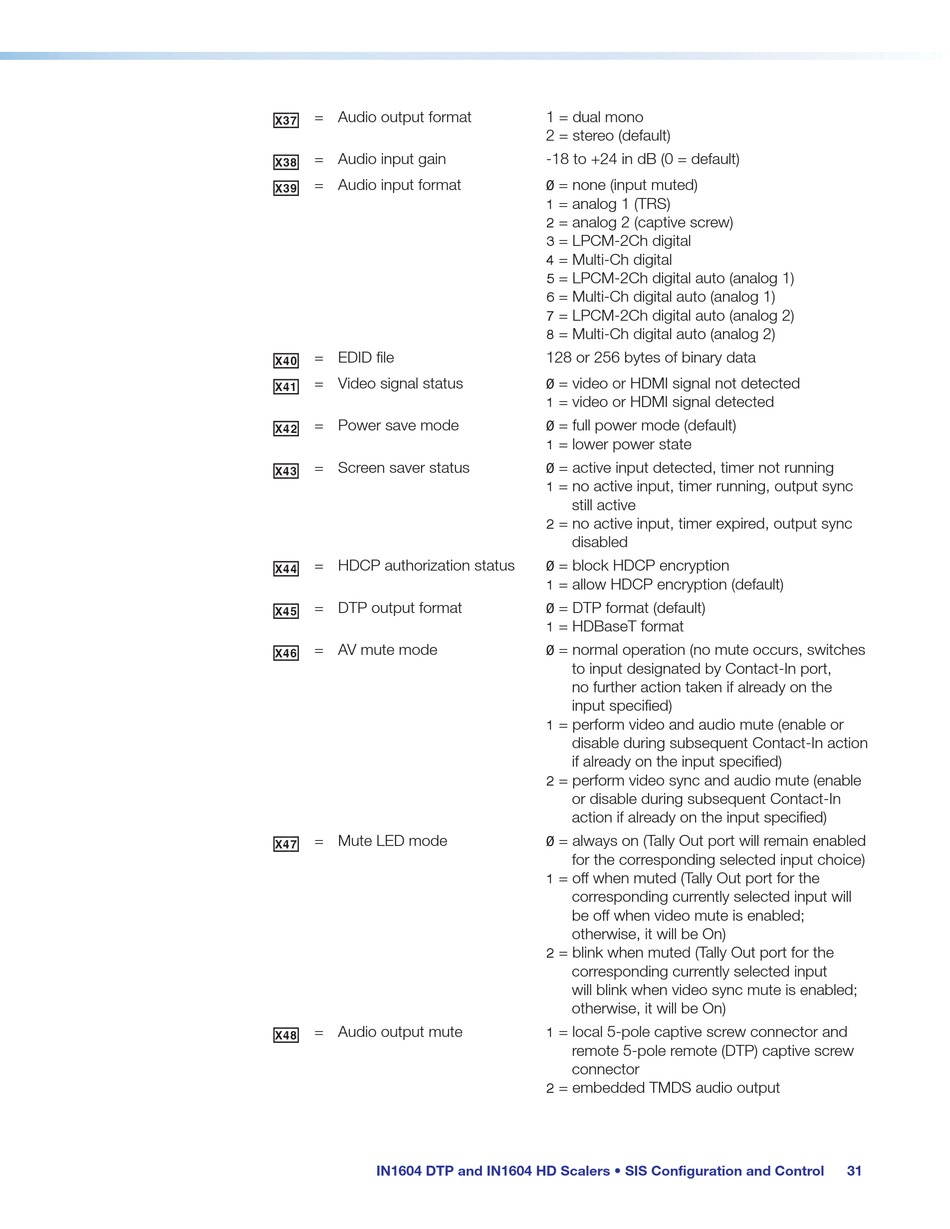

Extron electronics IN1604 DTP User Manual page 37

X3& = Audio output format
X3* = Audio input gain
X3( = Audio input format
= EDID file
X4)
= Video signal status
X4!
X4@ = Power save mode
X4# = Screen saver status
X4$ = HDCP authorization status
X4% = DTP output format
X4^ = AV mute mode
= Mute LED mode
X4&
= Audio output mute
X4*
IN1604 DTP and IN1604 HD Scalers • SIS Configuration and Control
1 = dual mono
2 = stereo (default)
-18 to +24 in dB (0 = default)
= none (input muted)
0
= analog 1 (TRS)
1
= analog 2 (captive screw)
2
= LPCM-2Ch digital
3
= Multi-Ch digital
4
= LPCM-2Ch digital auto (analog 1)
5
= Multi-Ch digital auto (analog 1)
6
= LPCM-2Ch digital auto (analog 2)
7
= Multi-Ch digital auto (analog 2)
8
128 or 256 bytes of binary data
= video or HDMI signal not detected
0
= video or HDMI signal detected
1
= full power mode (default)
0
= lower power state
1
= active input detected, timer not running
0
= no active input, timer running, output sync
1
still active
= no active input, timer expired, output sync
2
disabled
= block HDCP encryption
0
= allow HDCP encryption (default)
1
= DTP format (default)
0
= HDBaseT format
1
= normal operation (no mute occurs, switches
0
to input designated by Contact-In port,
no further action taken if already on the
input specified)
= perform video and audio mute (enable or
1
disable during subsequent Contact-In action
if already on the input specified)
= perform video sync and audio mute (enable
2
or disable during subsequent Contact-In
action if already on the input specified)
= always on (Tally Out port will remain enabled
0
for the corresponding selected input choice)
= off when muted (Tally Out port for the
1
corresponding currently selected input will
be off when video mute is enabled;
otherwise, it will be On)
= blink when muted (Tally Out port for the
2
corresponding currently selected input
will blink when video sync mute is enabled;
otherwise, it will be On)
= local 5-pole captive screw connector and
1
remote 5-pole remote (DTP) captive screw
connector
= embedded TMDS audio output
2
31
