Configuration Pages
The configuration pages contain options for input and output configuration, EDID
management, image settings, image size and position, audio configuration, preset
management, and general settings.

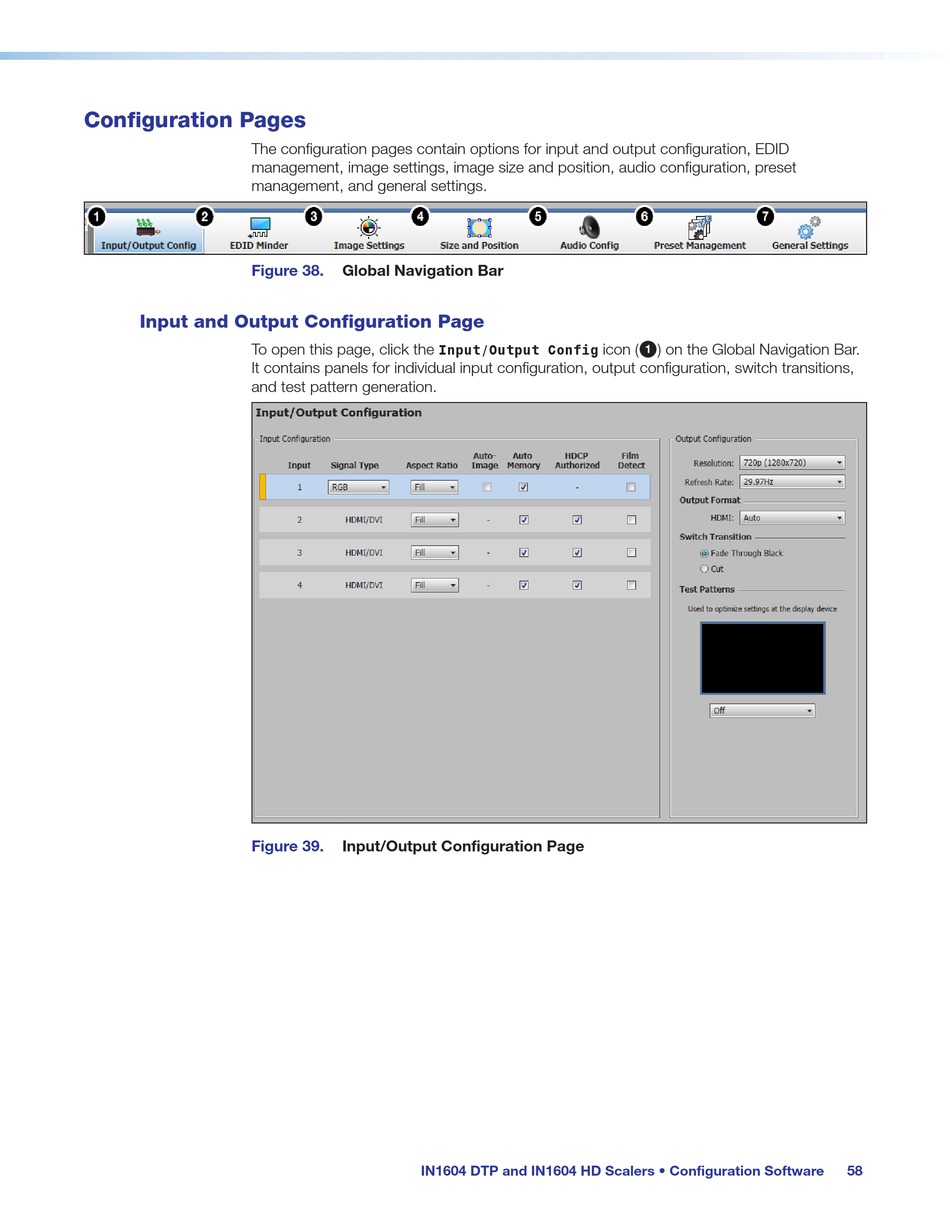

Figure 38.
Input and Output Configuration Page
To open this page, click the
It contains panels for individual input configuration, output configuration, switch transitions,
and test pattern generation.
Figure 39.
Global Navigation Bar
Input/Output Config
Input/Output Configuration Page
IN1604 DTP and IN1604 HD Scalers • Configuration Software
icon (
) on the Global Navigation Bar.
1
58
