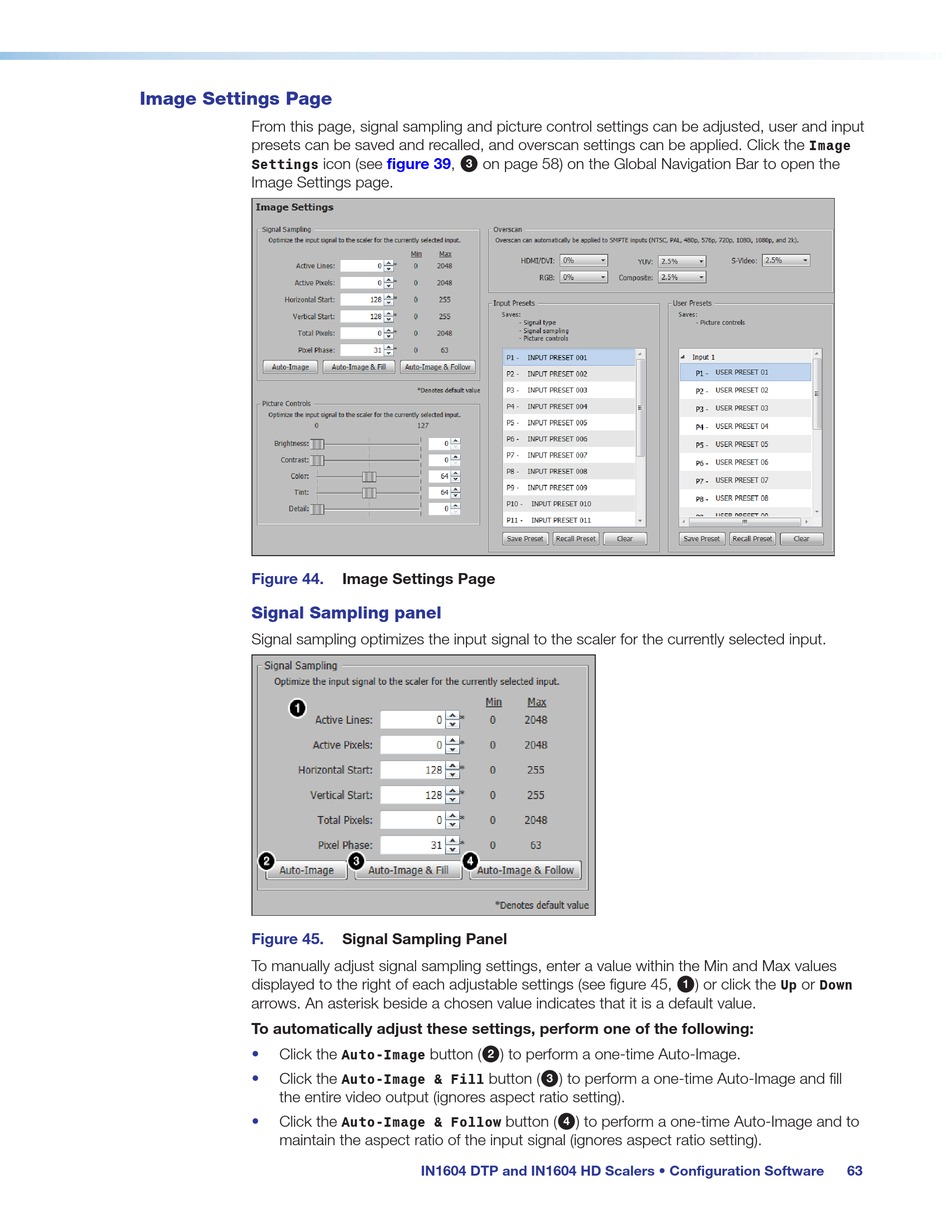

Image Settings Page

From this page, signal sampling and picture control settings can be adjusted, user and input
presets can be saved and recalled, and overscan settings can be applied. Click the
Settings
Image Settings page.
Figure 44.
Signal Sampling panel
Signal sampling optimizes the input signal to the scaler for the currently selected input.
Figure 45.
To manually adjust signal sampling settings, enter a value within the Min and Max values
displayed to the right of each adjustable settings (see figure 45,
arrows. An asterisk beside a chosen value indicates that it is a default value.
To automatically adjust these settings, perform one of the following:
• Click the
• Click the
the entire video output (ignores aspect ratio setting).
• Click the
maintain the aspect ratio of the input signal (ignores aspect ratio setting).
icon (see figure 39, on page 58) on the Global Navigation Bar to open the
3
Image Settings Page
Signal Sampling Panel
button ( ) to perform a one-time Auto-Image.
Auto-Image 2
button (
Auto-Image & Fill
Auto-Image & Follow
IN1604 DTP and IN1604 HD Scalers • Configuration Software
1
) to perform a one-time Auto-Image and fill
3
button ( ) to perform a one-time Auto-Image and to
4
) or click the or
Up Down
63
