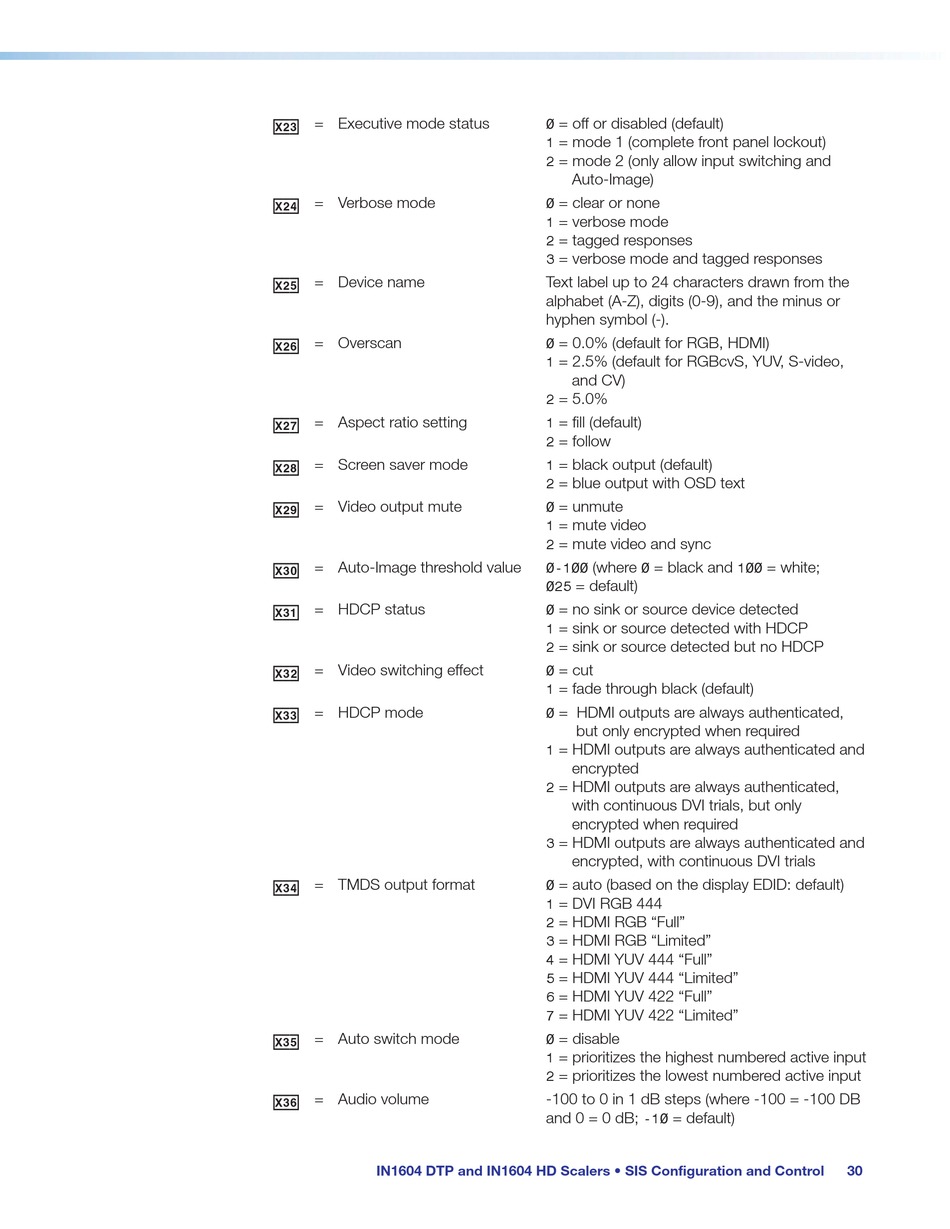

Extron electronics IN1604 DTP User Manual page 36

X2# = Executive mode status
X2$ = Verbose mode
= Device name
X2%
= Overscan
X2^
= Aspect ratio setting
X2&
X2* = Screen saver mode
X2( = Video output mute
= Auto-Image threshold value
X3)
X3! = HDCP status
= Video switching effect
X3@
= HDCP mode
X3#
X3$ = TMDS output format
X3% = Auto switch mode
X3^ = Audio volume
IN1604 DTP and IN1604 HD Scalers • SIS Configuration and Control
= off or disabled (default)
0
= mode 1 (complete front panel lockout)
1
= mode 2 (only allow input switching and
2
Auto-Image)
= clear or none
0
= verbose mode
1
= tagged responses
2
= verbose mode and tagged responses
3
Text label up to 24 characters drawn from the
alphabet (A-Z), digits (0-9), and the minus or
hyphen symbol (-).
= 0.0% (default for RGB, HDMI)
0
= 2.5% (default for RGBcvS, YUV, S-video,
1
and CV)
= 5.0%
2
= fill (default)
1
= follow
2
= black output (default)
1
= blue output with OSD text
2
= unmute
0
= mute video
1
= mute video and sync
2
(where = black and
0-100 0
= default)
025
= no sink or source device detected
0
= sink or source detected with HDCP
1
= sink or source detected but no HDCP
2
= cut
0
= fade through black (default)
1
= HDMI outputs are always authenticated,
0
but only encrypted when required
= HDMI outputs are always authenticated and
1
encrypted
= HDMI outputs are always authenticated,
2
with continuous DVI trials, but only
encrypted when required
= HDMI outputs are always authenticated and
3
encrypted, with continuous DVI trials
= auto (based on the display EDID: default)
0
= DVI RGB 444
1
= HDMI RGB "Full"
2
= HDMI RGB "Limited"
3
= HDMI YUV 444 "Full"
4
= HDMI YUV 444 "Limited"
5
= HDMI YUV 422 "Full"
6
= HDMI YUV 422 "Limited"
7
= disable
0
= prioritizes the highest numbered active input
1
= prioritizes the lowest numbered active input
2
-100 to 0 in 1 dB steps (where -100 = -100 DB
and 0 = 0 dB; = default)
-10
= white;
100
30
