C.4. FRU Magazine
LTO Magazine FRU StorageLoader 1U
Item Part no
1 S808738
2 S808739
See Chapter 4.7. Cartridge Handling for instructions.
After replacing a magazine, pack the defective magazine in the same box you received the
replacement magazine, and return it to your StorageLoader supplier.
C.5. FRU Drive Tray Assy
This part is drive-dependent. Contact your sales representative to get the correct part number.
Pictures shown may vary depending on product model.
disconnect the power cord and remove these two screws

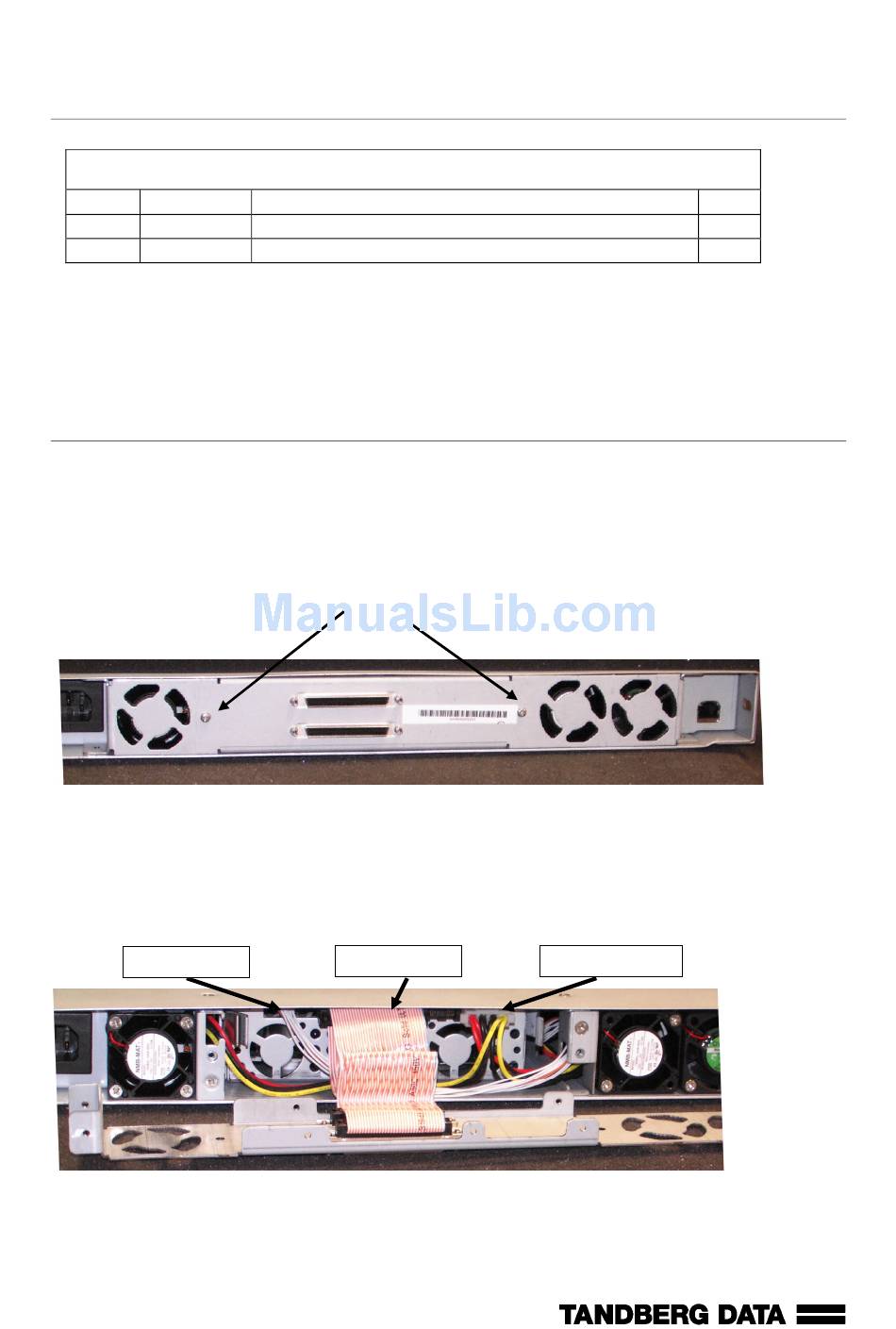

Figure C.8. Replacing the tape-drive.

For newer loaders, you must also remove four screws under the loader.
You now have access to the rear of the tape-drive and can dismount the SCSI cable, the ADI cable
and the power cable.
ADI Cable

Figure C.9. Rear of the tape-drive.

Release the tape-drive by pushing the spring (see arrow) against the gripper-plate and pulling the
drive carefully backwards.
85 StorageLoader Installation and User Manual
Description
Magazine Left LTO
Magazine Right LTO
For replacing the tape-drive, switch off the loader,
and the back-panel cover plate.
SCSI cable
Qty
1
1
Power cable
