Internal Components
The StorageLoader features the main internal components shown in the figure below.
Drive
Slot 4
Power Supply
Cartridges
Left magazine
Slot 3
Slot 8
Robotics
Slot 2
module
Slot 7
Slot 1
Slot 6
Right magazine
Slot 5
Front panel

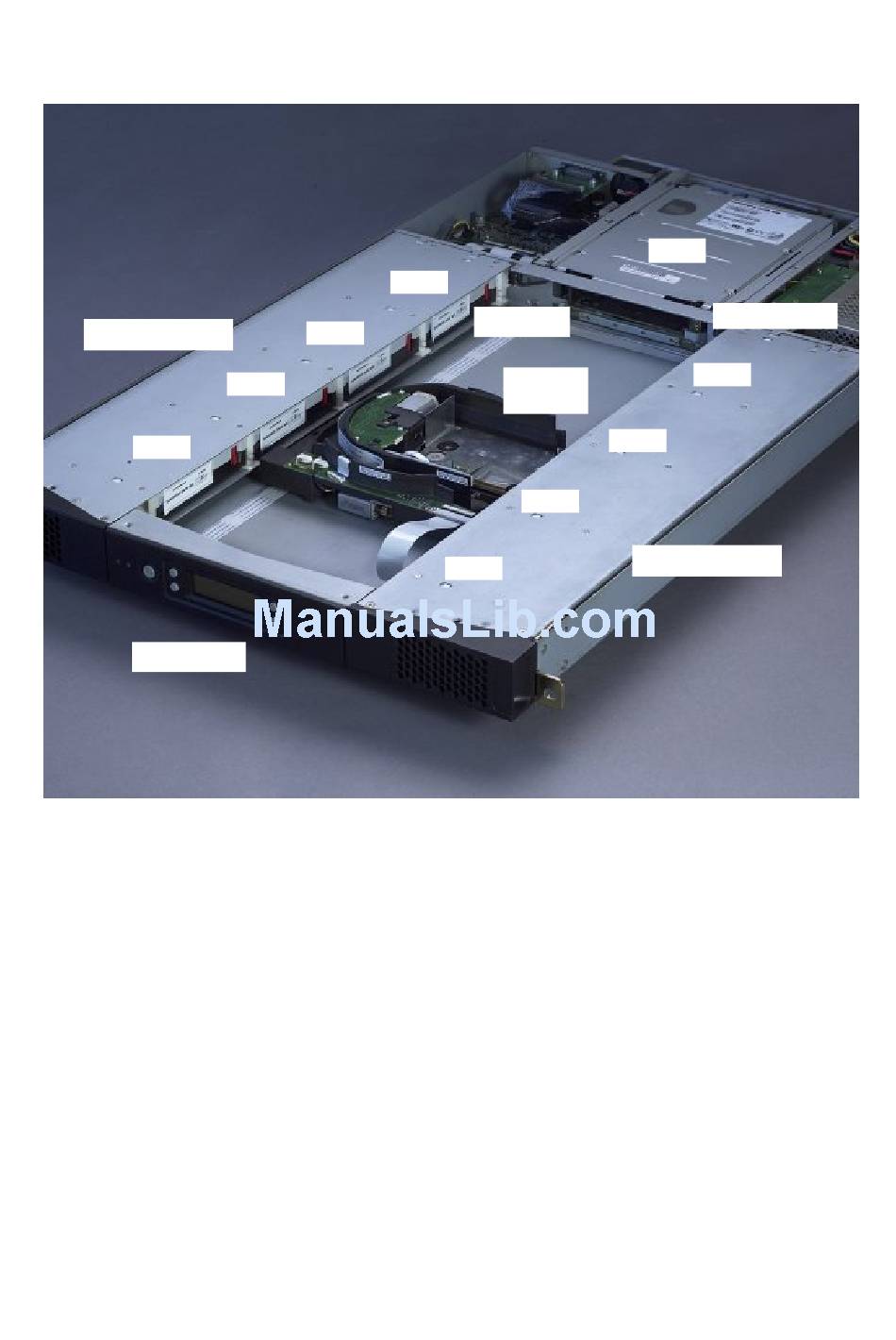

Figure 2.3. Internal components of the StorageLoader.

Tape Drive
The StorageLoader is equipped with one tape drive, which is located in the centre in the back of the
loader. The drive is a field-replaceable unit (FRU) that can be removed/replaced while the loader is
mounted in a rack. See Appendix C. Field Replacement Units (FRUs).
Robotics Module
The robotic cartridge handling mechanism moves cartridges between the cartridge slots in the two
magazines and the tape drive.
Barcode Reader
The barcode reader is standard and an optional part on some models. When mounted, it is integrated
in the Robotics Module. Please note that StorageLoader specific barcode labels need to be used to
achieve correct operation of the barcode reader.
