Remove the four fan fixing

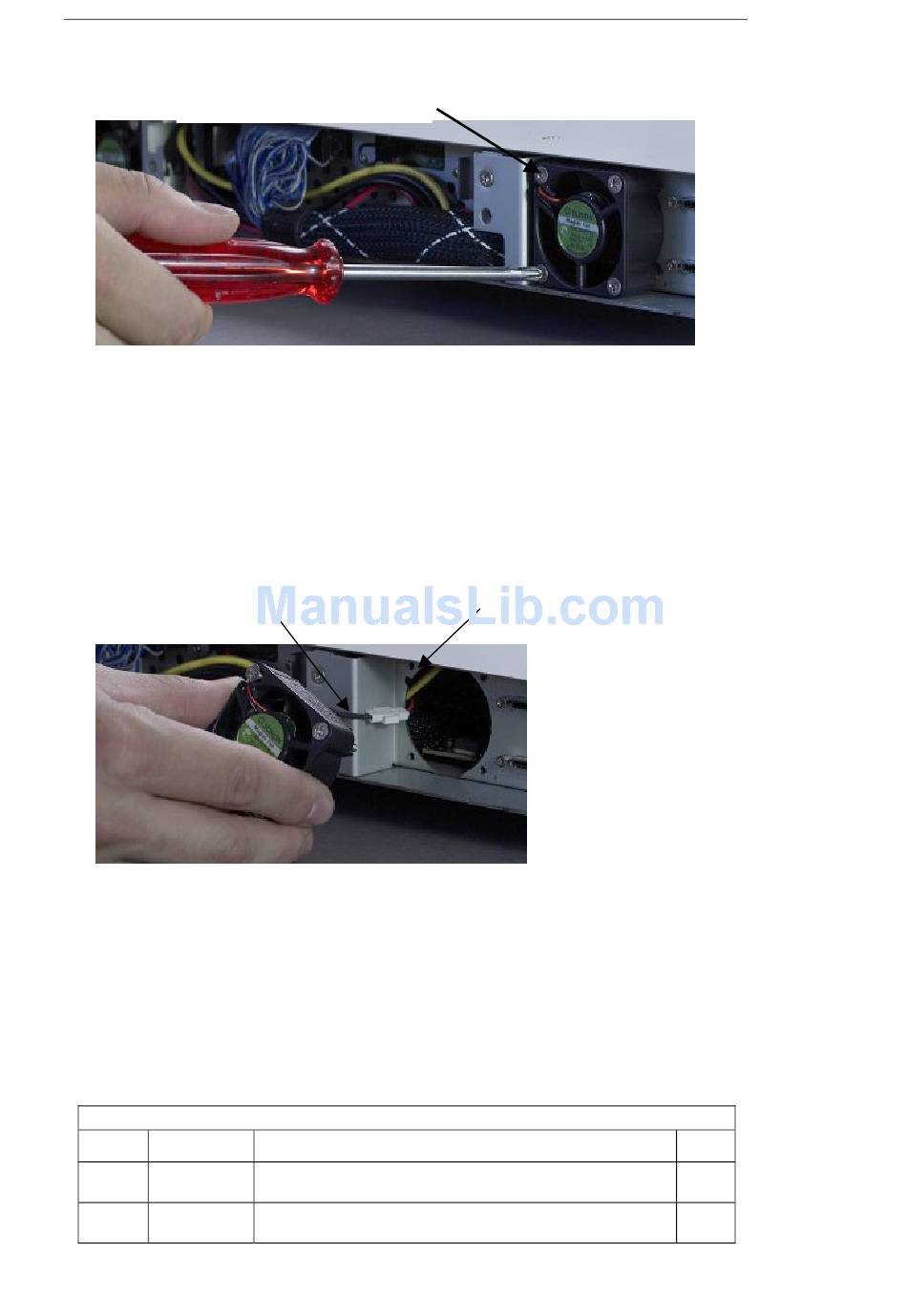

Figure 6.15 Removing the fan

Remove the fan fixing screws (Figure 6.15). Unhook the power connector of the fan
and carefully replace it. When re-inserting the fan take care to have the cable in the
notch in the chassis. If the cable is not fully inside the notch it can easily be damaged
and cause a new faulty fan. Fasten the fan fixing screws.
Fan power cable

Figure 6.16 Notch in chassis for fan cable

After replacing a fan, pack the defective fan in the same box you received the
replacement fan, and return it to your support center.

6.5.5 FRU Magazine

The FRU Magazine for the LTO version consists of the following parts:
LTO Magazine FRU StorageLoader 1U
Item Part no
1 S808738
2 S808739
62
Description
Magazine Left LTO
Magazine Right LTO
StorageLoader Installation and User Manual
Maintenance
Cable notch in chassis
Qty
1
1
