C.2. FRU Fan
S808740 Fan FRU StorageLoader 1U
Item Description
1 Fan
2 Quick Installation Guide Fan
To remove the fan, switch off the loader and remove
the power cord. Remove these two screws and
remove the back-panel cover plate

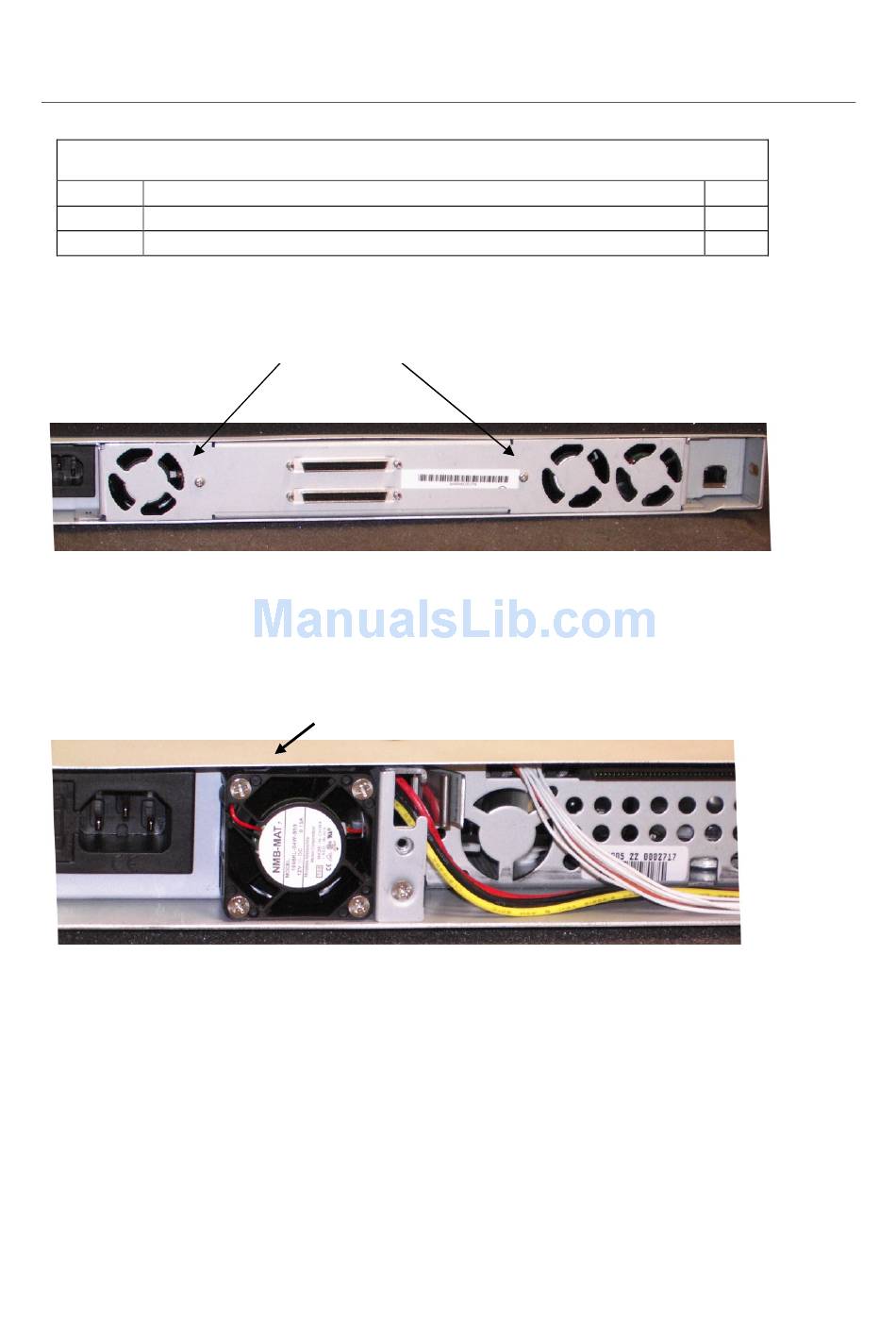

Figure C.2. Removing the back panel cover plate.

For newer loaders, you must also remove four screws under the loader.

Figure C.3. Removing the fan.

Remove the fan fixing screws (see figure above). Unhook the power connector of the fan and carefully
replace it. When re-inserting the fan take care to have the cable in the notch in the chassis. If the
cable is not fully inside the notch it can easily be damaged and cause a new faulty fan. Fasten the fan
fixing screws.
82
Remove the fan fixing screws
Qty
1
1
Appendixes.
