Tandberg Data StorageLoader    is a compact tape cartridge loader designed for secure, reliable,
unattended system backup. The version described in this manual is the ADI
be mounted in a 19" rack or used as a tabletop unit. Its height is 1U.
The loader is equipped with a LTO tape drive and has room for 8 cartridges in two 4-cartridge
magazines.

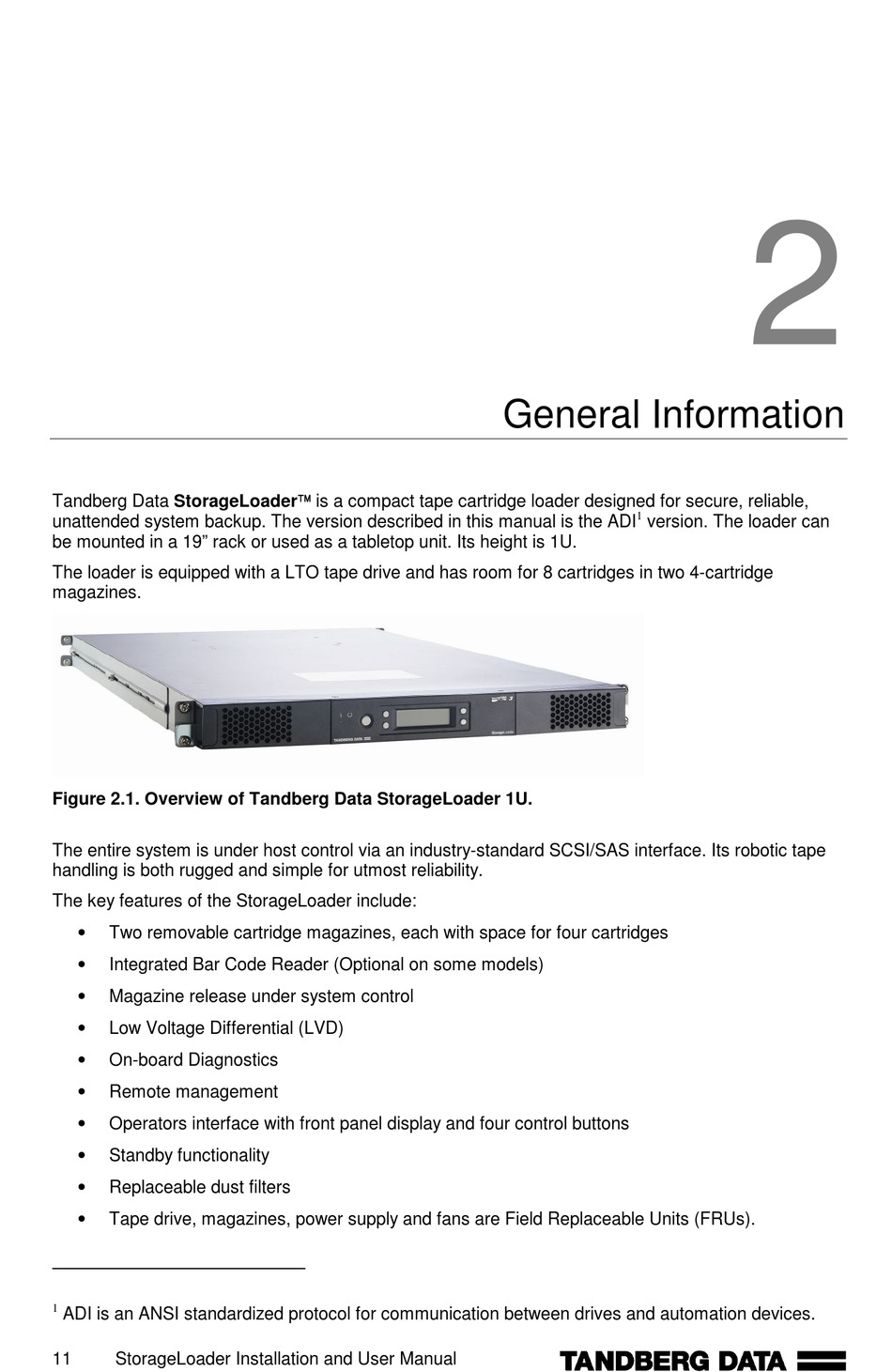

Figure 2.1. Overview of Tandberg Data StorageLoader 1U.

The entire system is under host control via an industry-standard SCSI/SAS interface. Its robotic tape
handling is both rugged and simple for utmost reliability.
The key features of the StorageLoader include:
•
Two removable cartridge magazines, each with space for four cartridges
•
Integrated Bar Code Reader (Optional on some models)
•
Magazine release under system control
•
Low Voltage Differential (LVD)
•
On-board Diagnostics
•
Remote management
•
Operators interface with front panel display and four control buttons
•
Standby functionality
•
Replaceable dust filters
•
Tape drive, magazines, power supply and fans are Field Replaceable Units (FRUs).
1
ADI is an ANSI standardized protocol for communication between drives and automation devices.
11 StorageLoader Installation and User Manual

2.General Information

1
2
version. The loader can
