5.2.3. Status Page

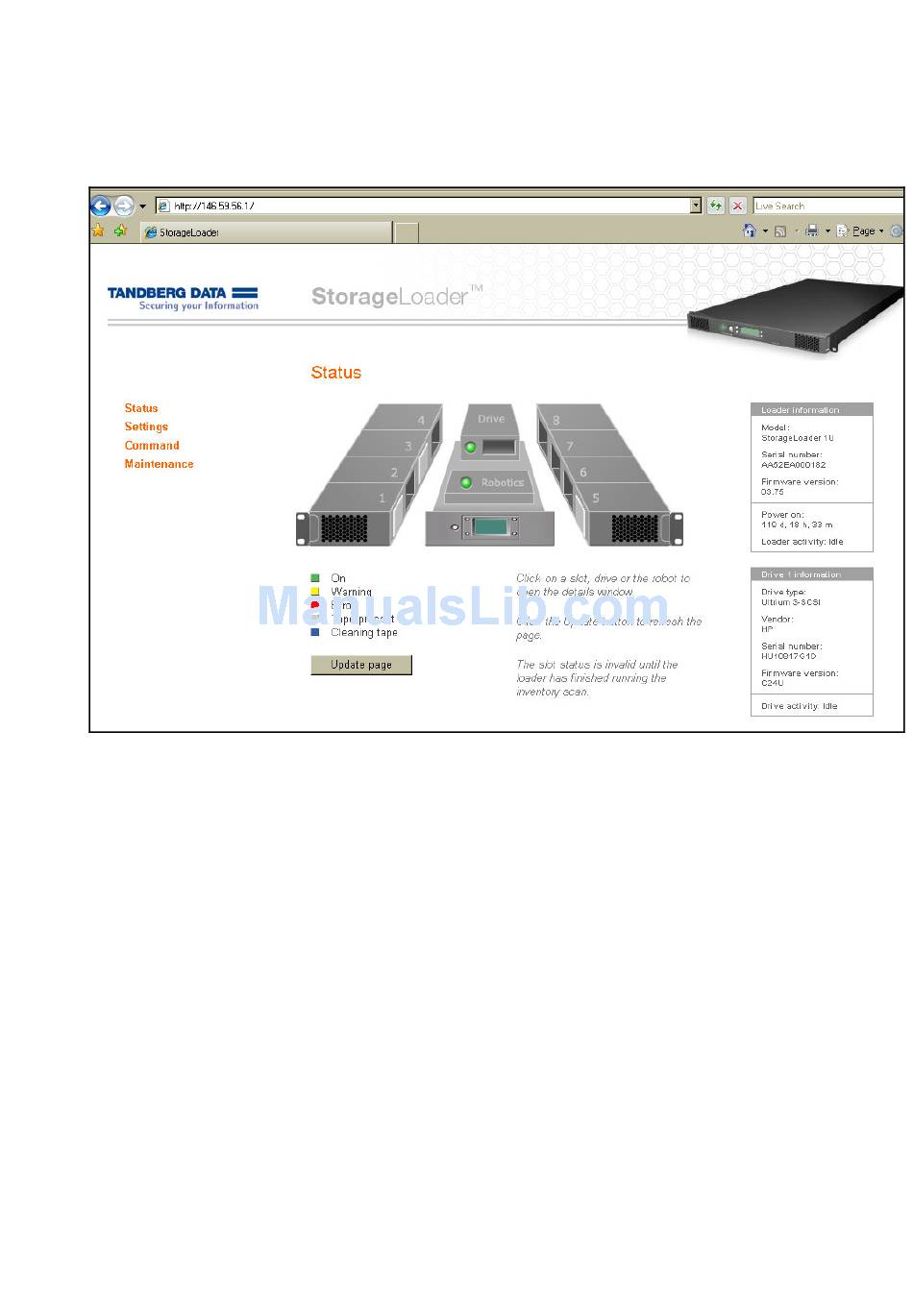

The StorageLoader Status page is illustrated in Figure 5.3 below.

Figure 5.3. Remote Management Status Page.

The figure above show an updated status of drives, robotics and cartridges using color-coding and
symbols.
The Drive and Robot status will be shown as a green (OK), yellow (Warning) or red (Error) dot. If you
click on the text, additional information will be shown in a pop up window.
The cartridge locations are shown with rectangles in the slots or the drive. The status codes are:
•
Black
•
Grey
•
Blue
•
Yellow
•
Red
If you click on a slot, additional cartridge information will be shown in a pop up window. This
information includes the cartridge barcode (if label and barcode reader is installed) and the error code.
50
Empty slot, no cartridge present
Cartridge present
Cleaning cartridge in the slot
Warning
Error
