6.3. Reinstalling the Transport Lock

Before the StorageLoader is shipped over a distance, the transport lock must be installed. The
transport lock will prevent damage to the robotics during transport and handling.

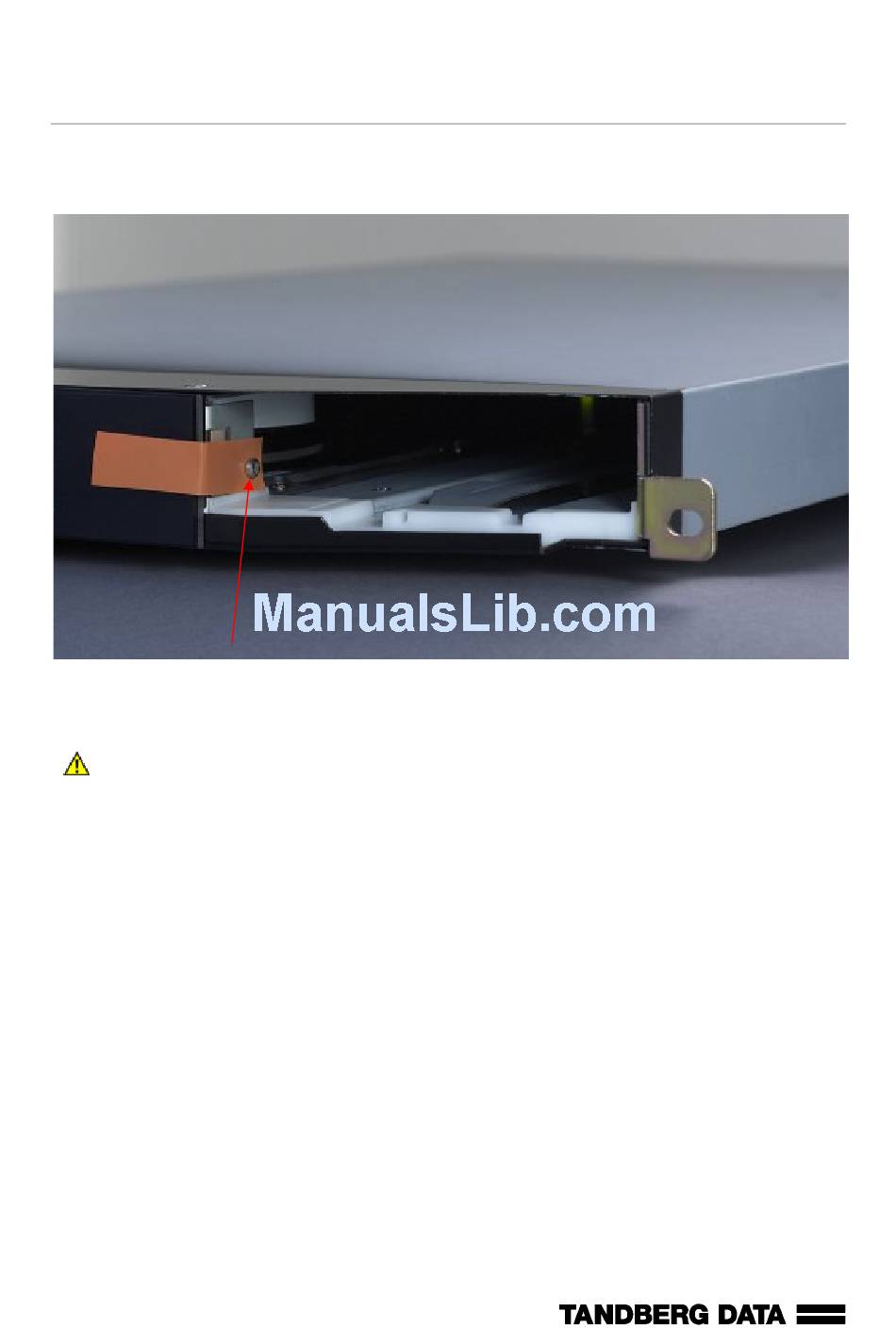

Figure 6.1. Transport lock marked with red plastic tab.

Damage to the robotics during shipping will not be covered by warranty unless the
Caution
transport lock is installed. The transport lock must be removed prior to operation.

6.3.1. Transport Lock Installation Procedure

To insert the locking screw, do the following:
1. If there is a cartridge in the drive, unload the drive first.
2. When the loader is powered on and idle, push the "Menu" button and go to "Prepare to
Ship" menu entry (see Table 4.14. Utilities Menu Items.).
3. If there are any cartridges in the magazines, the loader will eject those magazines and a
descriptive message will be shown. Empty the magazines, and put the magazines back in
place.
4. If the magazines are empty, only the right magazine will be ejected and a descriptive message
will be shown.
5. Turn the main power off at the back of the loader.
6. Remove the magazine and insert the locking screw. The red plastic tab shall protrude from the
front of the loader.
7. Insert the magazine and push it in till it locks in place.
