Installing the "Rail Left Assembly"
1. Measure the length between the rear rack mount rails and the front rack mount rails. If the
measurement is shorter than the StorageLoader, move the two sets of screws M4x12,
washers and nuts shown in Figure 3.3.
2. Adjust the "Rail Left Assembly" to fit the measurement in step 1.
3. Use a 7 mm open-end wrench together with the screwdriver to tighten the two M4x12 screws
to fix the rail length.
Note: Using more than two screws will increase the stability of the Rack Mounting Kit.
4. Place the "Rail Left Assembly" on the left side of the rack, between the rear rack mount rail
and the front rack mount rail.
5. Mount the "Rail Left Assembly" at desired height using one M6x12 screw in front (upper hole
in rail only) and two M6x12 screws at the backside. See Figure 3.4.
Installing the "Rail Right Assembly"
Follow the instruction for left side only using the "Rail Right Assembly" on the right side of the rack.
Step 5
(Screw
M6x12)
(Screw M4x12, nut
and washer)

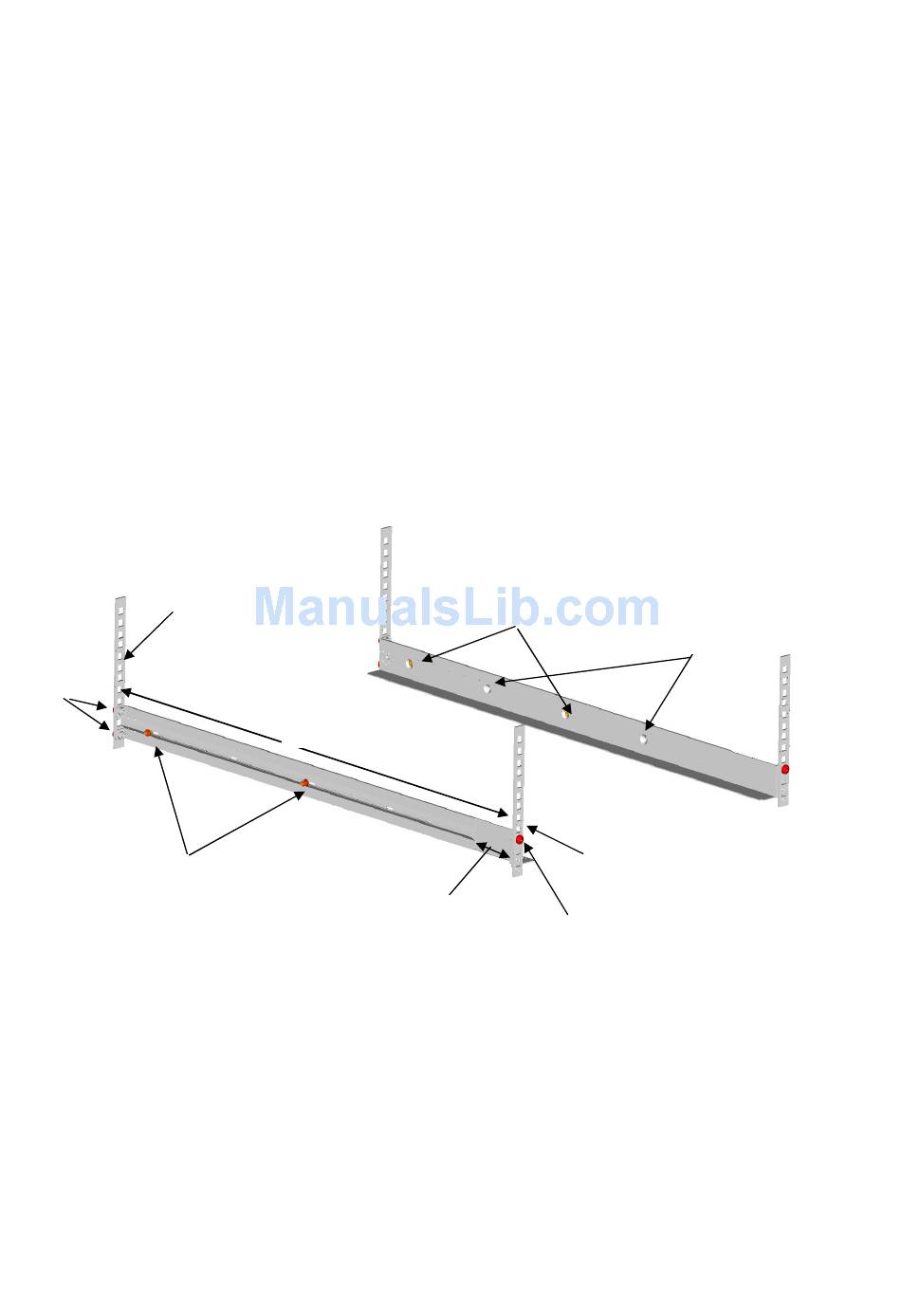

Figure 3.3. Mounting the Rack mounting kit to a rack.

20
Rear Rack
Mount Rail
Step 1
Step 3
Use these holes if
rack depth is equal
or longer than the
StorageLoader
Step 2
Step 1
Holes to be used if
rack depth is
shorter than the
StorageLoader
Front Rack Mount Rail
Step 5
(Screw M6x12)
Chapter 3. Installation.
