4.8.4. Inserting a Magazine into the Unit

The right and left magazines are mirrored and can only be inserted into the correct left or right
magazine bay. See Figure 4.20 below.
1. Enter the back of the magazine into the correct magazine bay.
Make sure it is in level with the loader.
2. Slide the magazine carefully in until the eject spring engages.
3. Push the magazine further in against the spring until the magazine is latched.

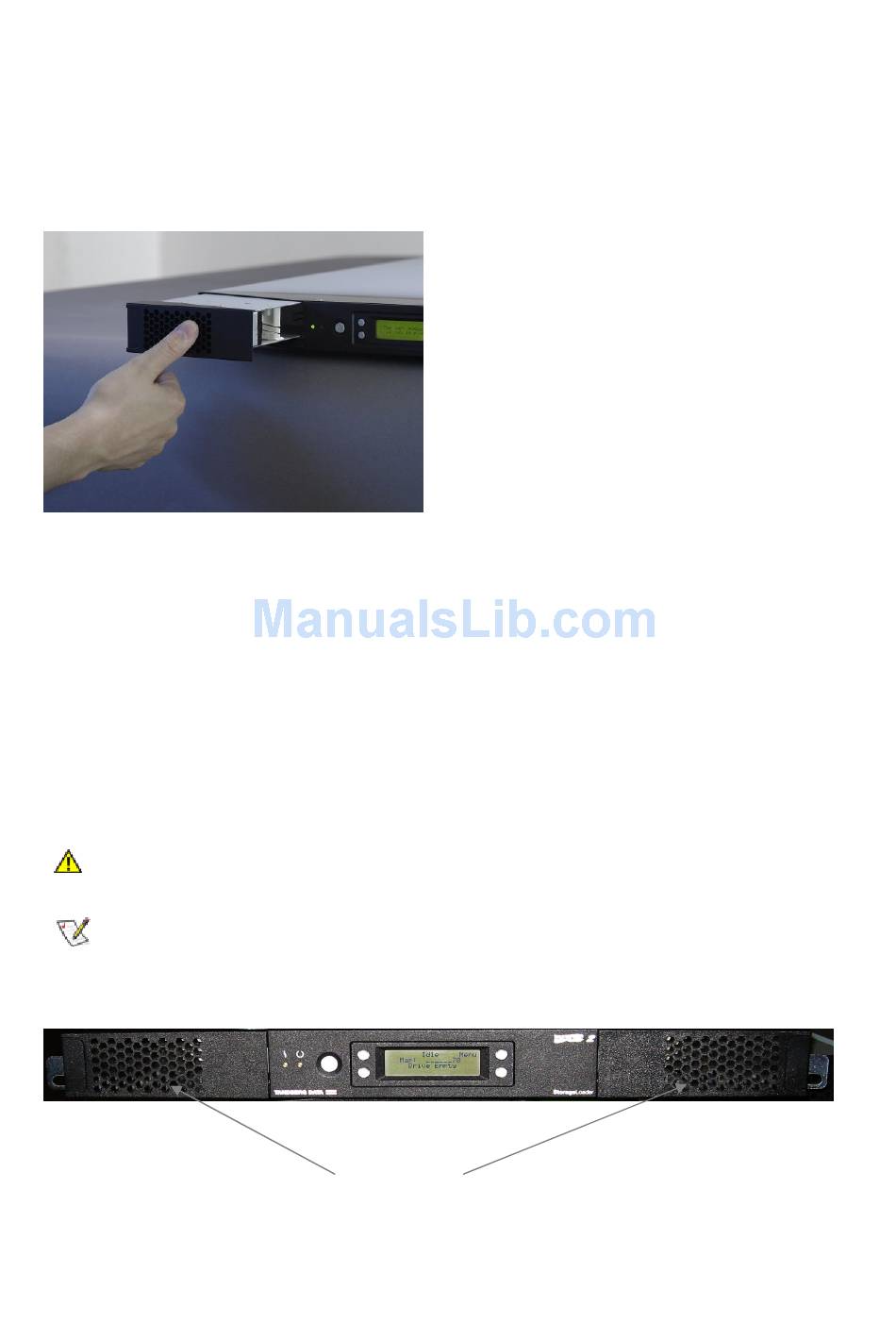

Figure 4.20. Push magazine until it clicks into place.

4.8.5. Manual/Emergency Release of Magazines

In case of failure situations either in the loader itself, a power loss, or if you want to manually release
the magazines for some other reason, a manual/emergency release is available. To activate the
emergency magazine feature, you must use the special magazine release tool, which is part of the
accessory kit shipped together with the StorageLoader. This tool must be entered through the hole
marked in Figure 4.21 and Figure 4.22. Store the magazine release tool for future use.
Figure 4.22 shows the release tool inserted into the correct hole on the right hand side magazine
bezel.
The manual eject must only be used when power is turned off.
Caution
Store the Magazine Release Tool in a safe place for future use.
Note

Figure 4.21. Holes used to insert release tool.

44
Insert your
magazine
release tool
here.
Chapter 4. Operation and Configuration.
See next figure
for close up.
