Fan power cable

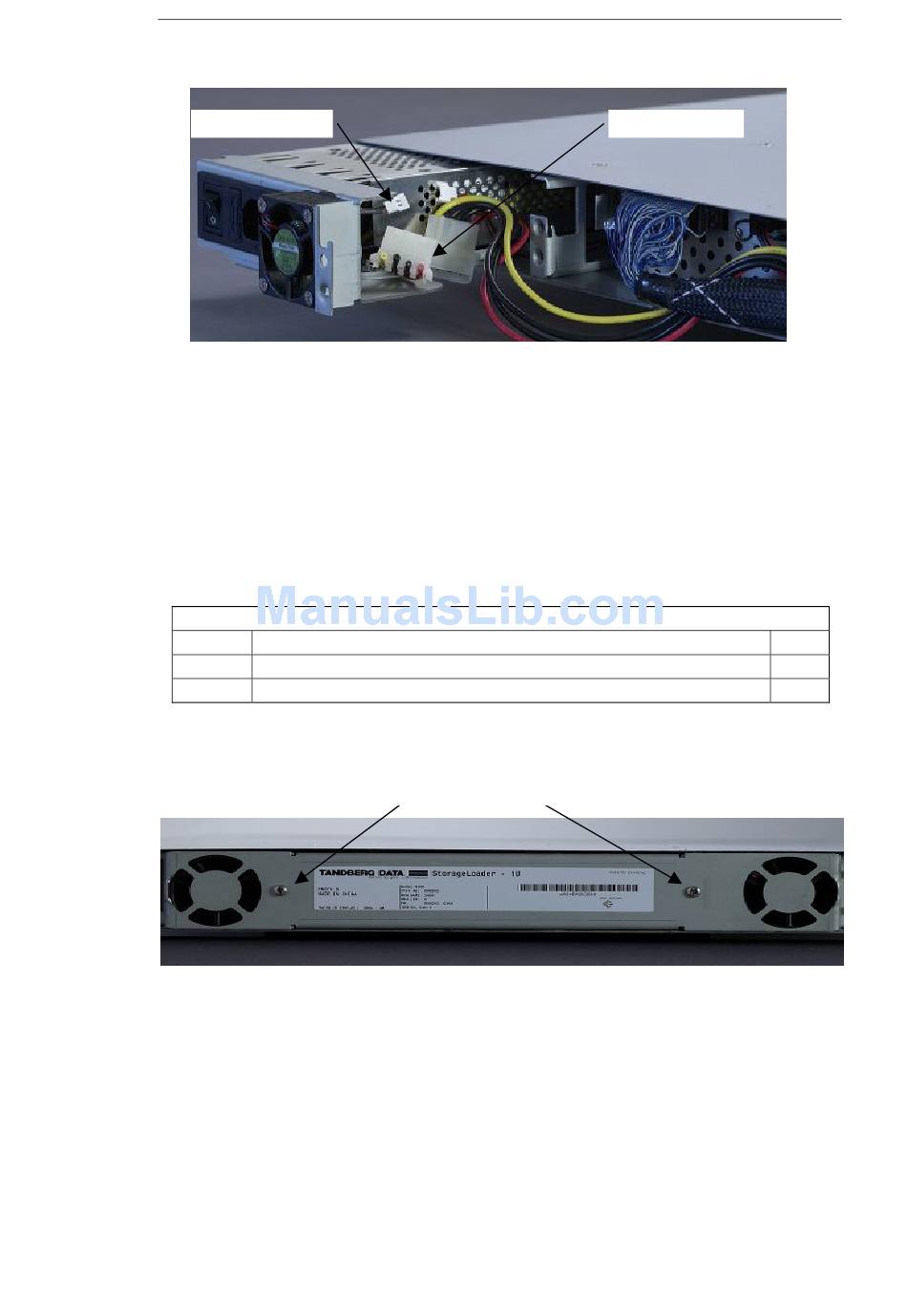

Figure 6.13 Fan power

After removing the power-supply, insert the replacement unit carefully the same
way, reconnect the 2 cables, fasten the fixing screw and re-mount the back plate.
Then pack the defective power supply in the same box you received the replacement
power supply and return it to your support center.

6.5.4 FRU Fan

This FRU consists of the following parts:
S808740 Fan FRU StorageLoader 1U
Item Description
1 Fan
2 Quick Installation Guide Fan
To remove the fan, switch off the loader and remove the
power cord. Remove these two screws and remove the
back-panel cover plate

Figure 6.14 Removing the back panel cover plate

StorageLoader Installation and User Manual
Maintenance
Power connector
Qty
1
1
