Step 5
(Screw
M6x12)
Step 3
(Screw M4x12,
nut and washer)

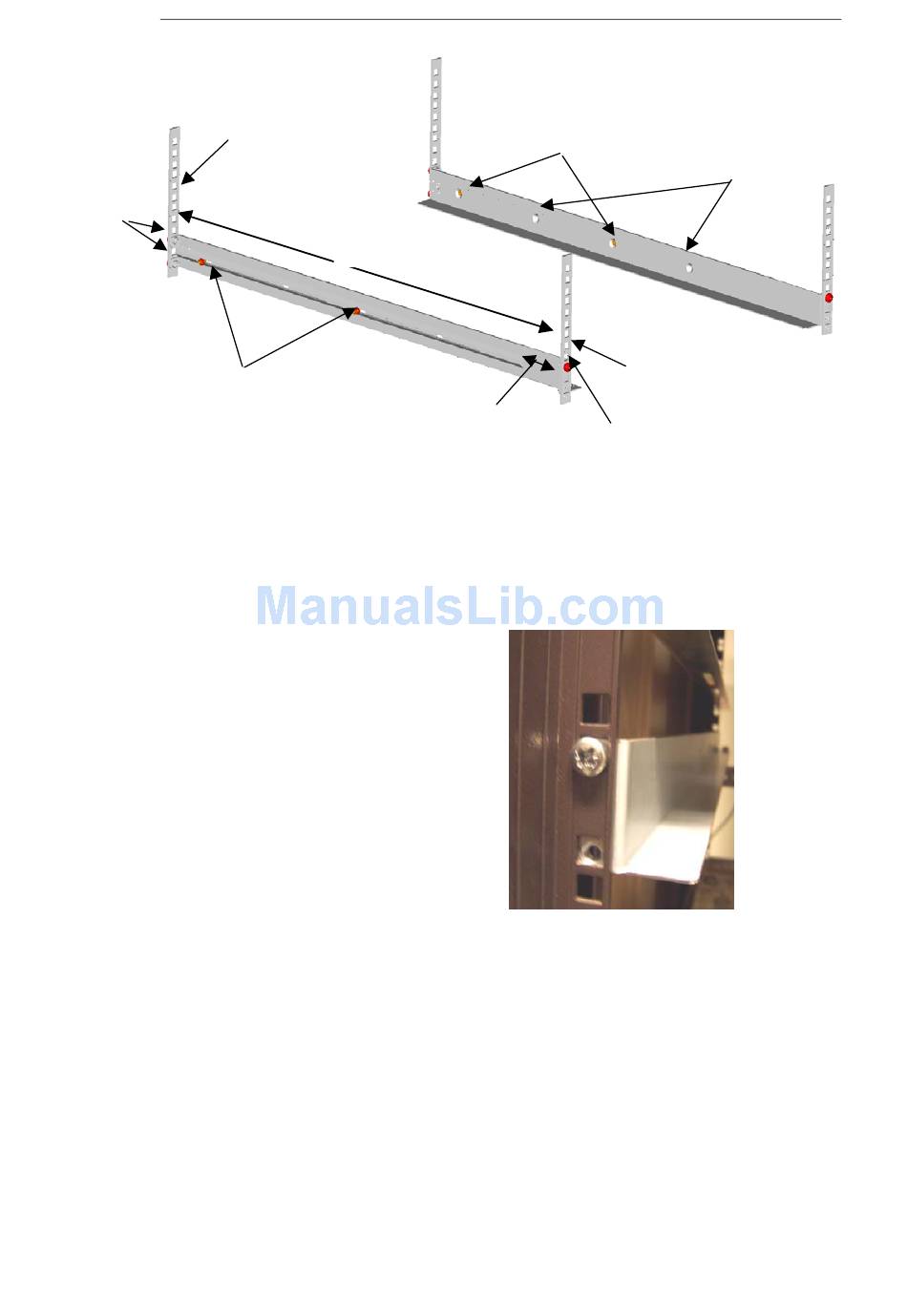

Figure 3.3 Mounting the Rack mounting kit to a rack

Figure 3.4 shows step 5 in the
description:
Rack mounting kit mounted in rack with
one screw M6x12 in upper hole on both
left and right side.
On the rear side two screws must be
used on both left and right side.
Totally six screws are used to install the
"rack mounting kit" to the rack.
Mounting the StorageLoader to the Rack
Make sure that all the screws in the Rack Mounting Kit are tightened properly
before installing the StorageLoader in the rack.
Slide the StorageLoader on the rails from the front of the rack, as shown in figure
3.5. Then fix the StorageLoader using one M6x12 screw in front of the rack on both
left and right side (see figure 3.6) and one M5x8 on the backside of the Rack
Mounting Kit on both left and right side (see figure 3.7).
StorageLoader Installation and User Manual
Rear Rack
Mount Rail
Step 1
Use these holes
if rack depth is
equal or longer
than the
StorageLoader
Step 2
Figure 3.4 Rack mounting kit
mounted in rack
Operation and Configuration
Step 1
Holes to be
used if rack
depth is shorter
than the
StorageLoader
Front Rack Mount Rail
Step 5
(Screw M6x12)
