2. General Information

Tandberg Data StorageLoader is a compact tape cartridge loader designed for
secure, reliable, unattended system backup. The loader can be mounted in a 19" rack
or used as a tabletop unit. Its height is 1U.
The loader is equipped with a DLT VS160 or a 420LTO tape drive, and has room
for 8 cartridges in two 4-cartridge magazines.

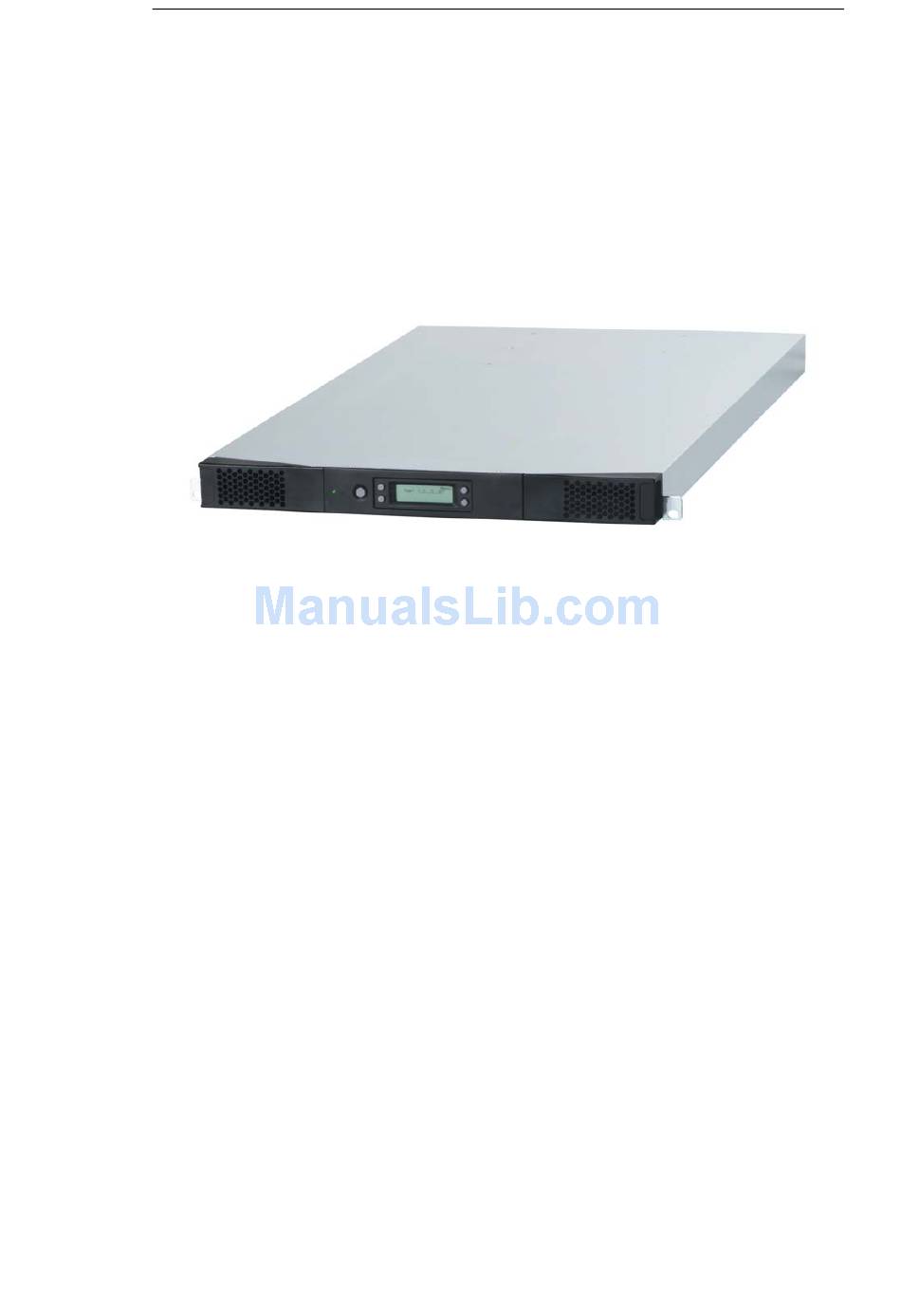

Figure 2.1 Overview of Tandberg Data StorageLoader 1U

The entire system is under host control via an industry-standard SCSI interface. Its
robotic tape handling is both rugged and simple for utmost reliability
The key features of the StorageLoader include:
• Two removable cartridge magazines, each with space for four cartridges
• Optional Integrated Bar Code Reader
• Magazine release under system control
• Low Voltage Differential (LVD) / Single-Ended (SE) SCSI Interface
• On-board Diagnostics
• Remote management
• Operators interface with front panel display and four control buttons
• Standby functionality
• Replaceable dust filters
• Tape drive, magazines, power supply and fans are Field Replaceable Units
(FRUs)
