HP ProCurve 2810 Series Management And Configuration Manual page 160

Time Protocols
SNTP: Viewing, Selecting, and Configuring

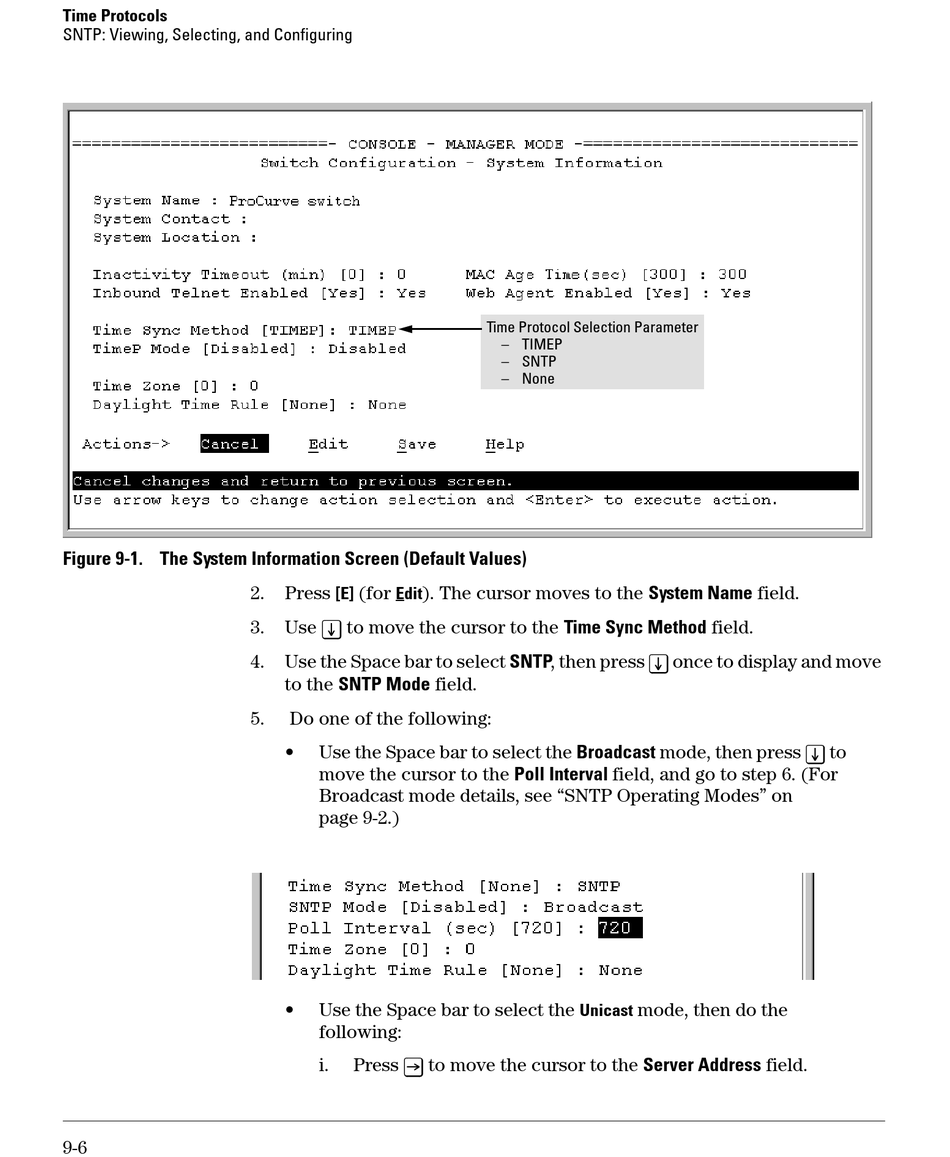

Figure 9-1. The System Information Screen (Default Values)
9-6
2. Press (for ). The cursor moves to the System Name field.
[E] Edit
3. Use [v] to move the cursor to the Time Sync Method field.
4. Use the Space bar to select SNTP, then press [v] once to display and move
to the SNTP Mode field.
5. Do one of the following:
Use the Space bar to select the Broadcast mode, then press [v] to
•
move the cursor to the Poll Interval field, and go to step 6. (For
Broadcast mode details, see "SNTP Operating Modes" on
page 9-2.)
• Use the Space bar to select the
following:
i. Press [>] to move the cursor to the Server Address field.
Time Protocol Selection Parameter
– TIMEP
– SNTP
– None
mode, then do the
Unicast
