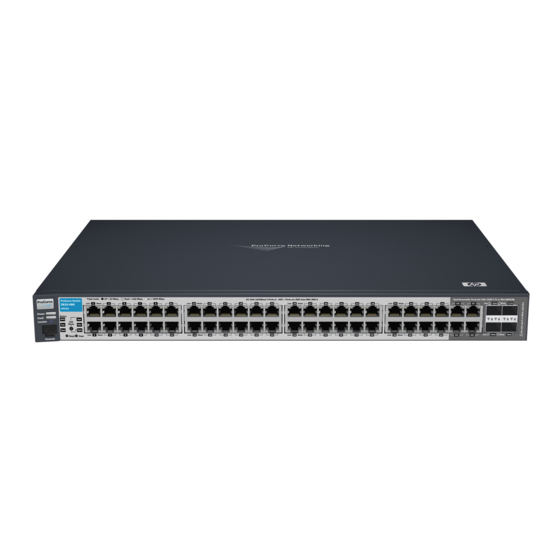

HP ProCurve 2810 Series Access Security Manual

Hide thumbs Also See for ProCurve 2810 Series:
Table of Contents

Advertisement

Quick Links

See also: Quick Reference Manual
Access Security Guide
2810
ProCurve Series 2810 Switches
N.11.XX
www.procurve.com

Advertisement

Table of Contents
loading

Related Manuals for HP ProCurve 2810 Series

Summary of Contents for HP ProCurve 2810 Series

  • Page 1 Access Security Guide 2810 ProCurve Series 2810 Switches N.11.XX www.procurve.com...
  • Page 3 ProCurve Series 2810 Switches July 2007 Access Security Guide...
  • Page 4 © Copyright 2001-2007 Hewlett-Packard Company, L.P. Hewlett-Packard Company shall not be liable for technical The information contained herein is subject to change without or editorial errors or omissions contained herein. The notice. information is provided "as is" without warranty of any kind and is subject to change without notice.

  • Page 5: Table Of Contents

    Contents Product Documentation About Your Switch Manual Set ........xi Feature Index .
  • Page 6 Front-Panel Security ..........2-7 When Security Is Important .
  • Page 7 4 TACACS+ Authentication Contents ............4-1 Overview .
  • Page 8 1. Configure Authentication for the Access Methods You Want RADIUS To Protect ....... . . 5-8 2.
  • Page 9 6. Use an SSH Client To Access the Switch ..... 6-22 Further Information on SSH Client Public-Key Authentication ..6-22 Messages Related to SSH Operation .
  • Page 10 Configuring Switch Ports as 802.1X Authenticators ....8-16 1. Enable 802.1X Authentication on Selected Ports ....8-16 2.
  • Page 11 Retention of Static MAC Addresses ......9-10 Displaying Current Port Security Settings ..... . 9-10 Configuring Port Security .
  • Page 12 11 Using Authorized IP Managers Contents ............11-1 Overview .

  • Page 13: Product Documentation

    Product Documentation About Your Switch Manual Set The switch manual set includes the following: Read Me First - a printed guide shipped with your switch. Provides ■ software update information, product notes, and other information. ■ Installation and Getting Started Guide - a printed guide shipped with your switch.

  • Page 14: Feature Index

    Product Documentation Feature Index For the manual set supporting your switch model, the following feature index indicates which manual to consult for information on a given software feature. Feature Management and Advanced Traffic Access Security Configuration Management Guide 802.1Q VLAN Tagging 802.1p Priority 802.1X Authentication Authorized IP Managers...
  • Page 15 Product Documentation Feature Management and Advanced Traffic Access Security Configuration Management Guide LLDP MAC Address Management MAC Lockdown MAC Lockout MAC-based Authentication Monitoring and Analysis Multicast Filtering Network Management Applications (LLDP, SNMP) Passwords Ping Port Configuration Port Security Port Status Port Trunking (LACP) Port-Based Access Control Port-Based Priority (802.1Q)
  • Page 16 Product Documentation Feature Management and Advanced Traffic Access Security Configuration Management Guide Stack Management (Stacking) Syslog System Information TACACS+ Authentication Telnet Access TFTP Time Protocols (TimeP, SNTP) Traffic/Security Filters Troubleshooting VLANs Web-based Authentication Xmodem...
  • Page 17 Getting Started Contents Introduction ........... 1-2 Overview of Access Security Features .

  • Page 18: Getting Started

    Getting Started Introduction Introduction This Access Security Guide describes how to use ProCurve’s switch security features to protect access to your switch. This guide is intended to support the following switches: ProCurve Switch 2810 ■ For an overview of other product documentation for the above switches, refer to “Product Documentation”...

  • Page 19: Management Access Security Protection

    Getting Started Overview of Access Security Features Port-Based Access Control (802.1X) (page 8-1): On point-to-point ■ connections, enables the switch to allow or deny traffic between a port and an 802.1X-aware device (supplicant) attempting to access the switch. Also enables the switch to operate as a supplicant for connections to other 802.1X-aware switches.

  • Page 20: General Switch Traffic Security Guidelines

    Getting Started Overview of Access Security Features Table 1-1. Management Access Security Protection Security Feature Offers Protection Against Unauthorized Client Access to Offers Protection Switch Management Features Against Unauthorized Client Connection Telnet SNMP Access to the (Net Mgmt) Browser Client Network Local Manager and Operator PtP:...

  • Page 21: Conventions

    Getting Started Conventions Conventions This guide uses the following conventions for command syntax and displayed information. Feature Descriptions by Model In cases where a software feature is not available in all of the switch models covered by this guide, the section heading specifically indicates which product or product series offer the feature.

  • Page 22: Command Prompts

    Getting Started Conventions Command Prompts In the default configuration, your switch displays the following CLI prompt: ProCurve Switch 2810# To simplify recognition, this guide uses ProCurve to represent command prompts for all models. For example: ProCurve# (You can use the hostname command to change the text in the CLI prompt.) Screen Simulations Figures containing simulated screen text and command output look like this: ProCurve(config)# show version...

  • Page 23: Sources For More Information

    Getting Started Sources for More Information Sources for More Information For additional information about switch operation and features not covered in this guide, consult the following sources: For information on which product manual to consult on a given ■ software feature, refer to “Product Documentation” on page xi. Note For the latest version of all ProCurve switch documentation, including release notes covering recently added features, visit the ProCurve...

  • Page 24: Need Only A Quick Start

    Getting Started Need Only a Quick Start? Figure 1-3. Getting Help in the CLI For information on specific features in the Web browser interface, ■ use the online help. For more information, refer to the Management and Configuration Guide for your switch. ■...

  • Page 25: To Set Up And Install The Switch In Your Network

    Getting Started Need Only a Quick Start? To Set Up and Install the Switch in Your Network I m po r t a n t ! Use the Quick Installation Guide shipped with your switch for the following: ■ Notes, cautions, and warnings related to installing and using the switch ■...
  • Page 26 Getting Started Need Only a Quick Start? 1-10...
  • Page 27 Configuring Username and Password Security Contents Overview ............2-2 Configuring Local Password Security .

  • Page 28: Configuring Username And Password Security

    Configuring Username and Password Security Overview Overview Feature Default Menu Set Usernames none — — page 2-6 Set a Password none page 2-4 page 2-5 page 2-6 Delete Password Protection page 2-4 page 2-6 page 2-6 Show front-panel-security — page 1-13 —...
  • Page 29 Configuring Username and Password Security Overview To configure password security: Set a Manager password pair (and an Operator password pair, if applicable for your system). Exit from the current console session. A Manager password pair will now be needed for full access to the console. If you do steps 1 and 2, above, then the next time a console session is started for either the menu interface or the CLI, a prompt appears for a password.

  • Page 30: Configuring Local Password Security

    Configuring Username and Password Security Configuring Local Password Security Configuring Local Password Security Menu: Setting Passwords As noted earlier in this section, usernames are optional. Configuring a user- name requires either the CLI or the web browser interface. From the Main Menu select: 3.

  • Page 31: Cli: Setting Passwords And Usernames

    Configuring Username and Password Security Configuring Local Password Security If you have physical access to the switch, press and hold the Clear button (on the front of the switch) for a minimum of one second to clear all password protection, then enter new passwords as described earlier in this chapter. If you do not have physical access to the switch, you will need Manager-Level access: Enter the console at the Manager level.

  • Page 32: Web: Setting Passwords And Usernames

    Configuring Username and Password Security Configuring Local Password Security To Remove Password Protection. Removing password protection means to eliminate password security. This command prompts you to verify that you want to remove one or both passwords, then clears the indicated password(s). (This command also clears the username associated with a password you are removing.) For example, to remove the Operator password (and username, if assigned) from the switch, you would do the following:...

  • Page 33: Front-Panel Security

    Configuring Username and Password Security Front-Panel Security Front-Panel Security The front-panel security features provide the ability to independently enable or disable some of the functions of the two buttons located on the front of the switch for clearing the password (Clear button) or restoring the switch to its factory default configuration (Reset+Clear buttons together).

  • Page 34: Front-Panel Button Functions

    Configuring Username and Password Security Front-Panel Security As a result of increased security concerns, customers now have the ability to stop someone from removing passwords by disabling the Clear and/or Reset buttons on the front of the switch. Front-Panel Button Functions The front panel of the switch includes the Reset button and the Clear button.
  • Page 35 Configuring Username and Password Security Front-Panel Security Reset Button Pressing the Reset button alone for one second causes the switch to reboot. Reset Clear Figure 2-6. Press and hold the Reset Button for One Second To Reboot the Switch Restoring the Factory Default Configuration You can also use the Reset button together with the Clear button (Reset+Clear) to restore the factory default configuration for the switch.

  • Page 36: Configuring Front-Panel Security

    Configuring Username and Password Security Front-Panel Security Release the Reset button and wait for about one second for the Self-Test LED to start flashing. Reset Clear Self Test When the Self-Test LED begins flashing, release the Clear button Reset Clear Self Test This process restores the switch configuration to the factory default settings.
  • Page 37 Configuring Username and Password Security Front-Panel Security • Modify the operation of the Reset+Clear combination (page 2-9) so that the switch still reboots, but does not restore the switch’s factory default configuration settings. (Use of the Reset button alone, to simply reboot the switch, is not affected.) •...
  • Page 38 Configuring Username and Password Security Front-Panel Security For example, show front-panel-security produces the following output when the switch is configured with the default front-panel security settings. Figure 2-7. The Default Front-Panel Security Settings Disabling the Clear Password Function of the Clear Button on the Switch’s Front Panel Syntax: no front-panel-security password-clear In the factory-default configuration, pressing the Clear button...
  • Page 39 Configuring Username and Password Security Front-Panel Security Re-Enabling the Clear Button on the Switch’s Front Panel and Setting or Changing the “Reset-On-Clear” Operation Syntax: [no] front-panel-security password-clear reset-on-clear This command does both of the following: • Re-enables the password-clearing function of the Clear button on the switch’s front panel.
  • Page 40 Configuring Username and Password Security Front-Panel Security Shows password-clear disabled. Enables password-clear, with reset-on- clear disabled by the “no” statement at the beginning of the command. Shows password-clear enabled, with reset-on-clear disabled. Figure 2-9. Example of Re-Enabling the Clear Button’s Default Operation Changing the Operation of the Reset+Clear Combination In their default configuration, using the Reset+Clear buttons in the combina- tion described under “Restoring the Factory Default Configuration”...

  • Page 41: Password Recovery

    Configuring Username and Password Security Front-Panel Security The command to disable the factory-reset operation produces this caution. To complete the command, press [Y]. To abort the command, press [N]. Completes the command to disable the factory reset option. Displays the current front- panel-security configuration, with Factory Reset disabled.
  • Page 42 Configuring Username and Password Security Front-Panel Security Syntax: [no] front-panel-security password-recovery Enables or (using the “no” form of the command) disables the ability to recover a lost password. When this feature is enabled, the switch allows management access through the password recovery process described below. This provides a method for recovering from a lost manager username (if configured) and password.

  • Page 43: Password Recovery Process

    Configuring Username and Password Security Front-Panel Security Figure 2-11. Example of the Steps for Disabling Password-Recovery Password Recovery Process If you have lost the switch’s manager username/password, but password- recovery is enabled, then you can use the Password Recovery Process to gain management access to the switch with an alternate password supplied by ProCurve.
  • Page 44 Configuring Username and Password Security Front-Panel Security N o t e The alternate password provided by the ProCurve Customer Care Center is valid only for a single login attempt. You cannot use the same “one-time-use” password if you lose the password a second time.

  • Page 45: Web And Mac Authentication

    Web and MAC Authentication Contents Overview ............3-2 Client Options .

  • Page 46: Overview

    Web and MAC Authentication Overview Overview Feature Default Menu Configure Web Authentication — 3-17 — Configure MAC Authentication — 3-22 — Display Web Authentication Status and Configuration — 3-26 — Display MAC Authentication Status and Configuration — 3-28 — Web and MAC Authentication are designed for employment on the “edge” of a network to provide port-based security measures for protecting private networks and the switch itself from unauthorized access.

  • Page 47: Client Options

    Web and MAC Authentication Overview password, and grants or denies network access in the same way that it does for clients capable of interactive logons. (The process does not use either a client device configuration or a logon session.) MAC authentication is well- suited for clients that are not capable of providing interactive logons, such as telephones, printers, and wireless access points.

  • Page 48: General Features

    Web and MAC Authentication Overview General Features Web and MAC Authentication includes the following: On a port configured for Web or MAC Authentication, the switch ■ operates as a port-access authenticator using a RADIUS server and the CHAP protocol. Inbound traffic is processed by the switch alone, until authentication occurs.

  • Page 49: How Web And Mac Authentication Operate

    Web and MAC Authentication How Web and MAC Authentication Operate How Web and MAC Authentication Operate Authenticator Operation Before gaining access to the network clients first present their authentication credentials to the switch. The switch then verifies the supplied credentials with a RADIUS authentication server.
  • Page 50 Web and MAC Authentication How Web and MAC Authentication Operate Figure 3-2. Progress Message During Authentication If the client is authenticated and the maximum number of clients allowed on the port (client-limit) has not been reached, the port is assigned to a static, untagged VLAN for network access.
  • Page 51 Web and MAC Authentication How Web and MAC Authentication Operate moves have not been enabled (client-moves) on the ports, the session ends and the client must reauthenticate for network access. At the end of the session the port returns to its pre-authentication state. Any changes to the port’s VLAN memberships made while it is an authorized port take affect at the end of the session.
  • Page 52 Web and MAC Authentication How Web and MAC Authentication Operate If neither 1, 2, or 3, above, apply, then the client session does not have access to any statically configured, untagged VLANs and client access is blocked. The assigned port VLAN remains in place until the session ends. Clients may be forced to reauthenticate after a fixed period of time (reauth-period) or at any time during a session (reauthenticate).

  • Page 53: Terminology

    Web and MAC Authentication Terminology Terminology Authorized-Client VLAN: Like the Unauthorized-Client VLAN, this is a conventional, static, untagged, port-based VLAN previously configured on the switch by the System Administrator. The intent in using this VLAN is to provide authenticated clients with network access and services. When the client connection terminates, the port drops its membership in this VLAN.

  • Page 54: Operating Rules And Notes

    Web and MAC Authentication Operating Rules and Notes Operating Rules and Notes ■ You can configure one type of authentication on a port. That is, the following authentication types are mutually exclusive on a given port: • Web Authentication • MAC Authentication •...
  • Page 55 Web and MAC Authentication Operating Rules and Notes If there is no RADIUS-assigned VLAN, then, for the duration of the client session, the port belongs to the Authorized VLAN (if configured) and temporarily drops all other VLAN memberships. If neither 1 or 2, above, apply, but the port is an untagged member of a statically configured, port-based VLAN, then the port remains in this VLAN.

  • Page 56: General Setup Procedure For Web/Mac Authentication

    Web and MAC Authentication General Setup Procedure for Web/MAC Authentication N o t e o n Web / The switch does not allow Web or MAC Authentication and LACP to both be M A C enabled at the same time on the same port. The switch automatically disables A u t h e n t i c a t i on LACP on ports configured for Web or MAC Authentication.
  • Page 57 Web and MAC Authentication General Setup Procedure for Web/MAC Authentication If there is neither a RADIUS-assigned VLAN or an “Authorized VLAN” for an authenticated client session on a port, then the port’s VLAN membership remains unchanged during authenticated client ses- sions.

  • Page 58: Additional Information For Configuring The Radius Server To Support Mac Authentication

    Web and MAC Authentication General Setup Procedure for Web/MAC Authentication Additional Information for Configuring the RADIUS Server To Support MAC Authentication On the RADIUS server, configure the client device authentication in the same way that you would any other client, except: ■...

  • Page 59: Configuring The Switch To Access A Radius Server

    Web and MAC Authentication Configuring the Switch To Access a RADIUS Server Configuring the Switch To Access a RADIUS Server RADIUS Server Configuration Commands radius-server [host < p-address>] below [key < global-key-string >] below radius-server host < p-address> key <server-specific key-string> 3-16 This section describes the minimal commands for configuring a RADIUS server to support Web-Auth and MAC Auth.
  • Page 60 Web and MAC Authentication Configuring the Switch To Access a RADIUS Server Syntax: radius-server host < ip-address > key <server-specific key-string> [no] radius-server host < ip-address > key Optional. Specifies an encryption key for use during authentication (or accounting) sessions with the speci- fied server.

  • Page 61: Configuring Web Authentication

    Web and MAC Authentication Configuring Web Authentication Configuring Web Authentication Overview If you have not already done so, configure a local username and password pair on the switch. Identify or create a redirect URL for use by authenticated clients. ProCurve recommends that you provide a redirect URL when using Web Authentication.

  • Page 62: Configure The Switch For Web-Based Authentication

    Web and MAC Authentication Configuring Web Authentication Configure the Switch for Web-Based Authentication Command Page Configuration Level aaa port-access web-based dhcp-addr 3-18 aaa port-access web-based dhcp-lease 3-18 [no] aaa port-access web-based [e] < port-list > 3-19 [auth-vid] 3-19 [client-limit] 3-19 [client-moves] 3-19 [logoff-period]...
  • Page 63 Web and MAC Authentication Configuring Web Authentication Syntax: [no] aaa port-access web-based [e] < port-list> Enables web-based authentication on the specified ports. Use the no form of the command to disable web- based authentication on the specified ports. Syntax: aaa port-access web-based [e] < port-list> [auth-vid <vid>] no aaa port-access web-based [e] <...
  • Page 64 Web and MAC Authentication Configuring Web Authentication aaa port-access web-based [e] < port-list > Syntax: [logoff-period] <60-9999999>] Specifies the period, in seconds, that the switch enforces for an implicit logoff. This parameter is equivalent to the MAC age interval in a traditional switch sense.
  • Page 65 Web and MAC Authentication Configuring Web Authentication Syntax: aaa port-access web-based [e] < port-list > [redirect-url <url>] no aaa port-access web-based [e] < port-list > [redirect-url] Specifies the URL that a user is redirected to after a successful login. Any valid, fully-formed URL may be used, for example, http://welcome-server/welcome.htm or http://192.22.17.5.

  • Page 66: Configuring Mac Authentication On The Switch

    Web and MAC Authentication Configuring MAC Authentication on the Switch Syntax: aaa port-access web-based [e] < port-list > [unauth-vid <vid>] no aaa port-access web-based [e] < port-list > [unauth-vid] Specifies the VLAN to use for a client that fails authen- tication.

  • Page 67: Configure The Switch For Mac-Based Authentication

    Web and MAC Authentication Configuring MAC Authentication on the Switch Configure the Switch for MAC-Based Authentication Command Page Configuration Level aaa port-access mac-based addr-format 3-23 [no] aaa port-access mac-based [e] < port-list > 3-23 [addr-limit] 3-24 [addr-moves] 3-24 [auth-vid] 3-24 [logoff-period] 3-24 [max-requests]...
  • Page 68 Web and MAC Authentication Configuring MAC Authentication on the Switch Syntax: aaa port-access mac-based [e] < port-list > [addr-limit <1-32>] Specifies the maximum number of authenticated MACs to allow on the port. (Default: 1) Syntax: [no] aaa port-access mac-based [e] < port-list > [addr-moves] Allows client moves between the specified ports under MAC Auth control.
  • Page 69 Web and MAC Authentication Configuring MAC Authentication on the Switch Syntax: aaa port-access mac-based [e] < port-list > [quiet-period <1 - 65535>] Specifies the time period, in seconds, the switch should wait before attempting an authentication request for a MAC address that failed authentication. (Default: 60 seconds) Syntax: aaa port-access mac-based [e] <...

  • Page 70: Show Status And Configuration Of Web-Based Authentication

    Web and MAC Authentication Show Status and Configuration of Web-Based Authentication Show Status and Configuration of Web-Based Authentication Command Page port-list show port-access [ ] web-based 3-26 [clients] 3-26 [config] 3-26 [config [auth-server]] 3-27 [config [web-server]] 3-27 port-list show port-access web-based config detail 3-27 Syntax:...
  • Page 71 Web and MAC Authentication Show Status and Configuration of Web-Based Authentication Syntax: show port-access [port-list] web-based [config [auth-server]] Shows Web Authentication settings for all ports or the specified ports, along with the RADIUS server specific settings for the timeout wait, the number of timeout failures before authentication fails, and the length of time between authentication requests.

  • Page 72: Show Status And Configuration Of Mac-Based Authentication

    Web and MAC Authentication Show Status and Configuration of MAC-Based Authentication Show Status and Configuration of MAC-Based Authentication Command Page show port-access [port-list] mac-based 3-28 [clients] 3-28 [config] 3-28 [config [auth-server]] 3-29 show port-access port-list mac-based config detail 3-29 Syntax: show port-access [port-list] mac-based Shows the status of all MAC-Authentication enabled ports or the specified ports.
  • Page 73 Web and MAC Authentication Show Status and Configuration of MAC-Based Authentication Syntax: show port-access [port-list] mac-based [config [auth-server]] Shows MAC Authentication settings for all ports or the specified ports, along with the Radius server specific settings for the timeout wait, the number of timeout failures before authentication fails, and the length of time between authentication requests.

  • Page 74: Show Client Status

    Web and MAC Authentication Show Client Status Show Client Status The table below shows the possible client status information that may be reported by a Web-based or MAC-based ‘show... clients’ command. Reported Status Available Network Possible Explanations Connection authenticated Authorized VLAN Client authenticated.

  • Page 75: Tacacs+ Authentication

    TACACS+ Authentication Contents Overview ............4-2 Terminology Used in TACACS Applications: .

  • Page 76: Overview

    TACACS+ Authentication Configuring TACACS+ on the Switch Overview Feature Default Menu view the switch’s authentication configuration — page 4-9 — view the switch’s TACACS+ server contact — page — configuration 4-10 configure the switch’s authentication methods disabled — page — 4-11 configure the switch to contact TACACS+ server(s) disabled —...

  • Page 77: Terminology Used In Tacacs Applications

    TACACS+ Authentication Configuring TACACS+ on the Switch tion services. If the switch fails to connect to any TACACS+ server, it defaults to its own locally assigned passwords for authentication control if it has been configured to do so. For both Console and Telnet access you can configure a login (read-only) and an enable (read/write) privilege level access.
  • Page 78 TACACS+ Authentication Configuring TACACS+ on the Switch • Local Authentication: This method uses username/password pairs configured locally on the switch; one pair each for manager- level and operator-level access to the switch. You can assign local usernames and passwords through the CLI or web browser inter- face.

  • Page 79: General System Requirements

    TACACS+ Authentication Configuring TACACS+ on the Switch General System Requirements To use TACACS+ authentication, you need the following: A TACACS+ server application installed and configured on one or ■ more servers or management stations in your network. (There are several TACACS+ software packages available.) A switch configured for TACACS+ authentication, with access to one ■...
  • Page 80 TACACS+ Authentication Configuring TACACS+ on the Switch other access type (console, in this case) open in case the Telnet access fails due to a configuration problem. The following procedure outlines a general setup procedure. Note If a complete access lockout occurs on the switch as a result of a TACACS+ configuration, see “Troubleshooting TACACS+ Operation”...
  • Page 81 TACACS+ Authentication Configuring TACACS+ on the Switch N o t e o n When a TACACS+ server authenticates an access request from a switch, Privil ege Levels it includes a privilege level code for the switch to use in determining which privilege level to grant to the terminal requesting access.

  • Page 82: Configuring Tacacs+ On The Switch

    TACACS+ Authentication Configuring TACACS+ on the Switch configuration in your TACACS+ server application for mis-configura- tions or missing data that could affect the server’s interoperation with the switch. After your testing shows that Telnet access using the TACACS+ server is working properly, configure your TACACS+ server application for console access.

  • Page 83: Cli Commands Described In This Section

    TACACS+ Authentication Configuring TACACS+ on the Switch CLI Commands Described in this Section Command Page show authentication show tacacs 4-10 aaa authentication pages 4-11 through 4-14 console Telnet num-attempts <1-10 > tacacs-server pages 4-15 host < ip-addr > pages 4-15 4-19 timeout <...

  • Page 84: Viewing The Switch's Current Tacacs+ Server Contact Configuration

    TACACS+ Authentication Configuring TACACS+ on the Switch Viewing the Switch’s Current TACACS+ Server Contact Configuration This command lists the timeout period, encryption key, and the IP addresses of the first-choice and backup TACACS+ servers the switch can contact. show tacacs Syntax: For example, if the switch was configured for a first-choice and two backup TACACS+ server addresses, the default timeout period, and paris-1 for a...

  • Page 85: Configuring The Switch's Authentication Methods

    TACACS+ Authentication Configuring TACACS+ on the Switch Configuring the Switch’s Authentication Methods The aaa authentication command configures the access control for console port and Telnet access to the switch. That is, for both access methods, aaa authentication specifies whether to use a TACACS+ server or the switch’s local authentication, or (for some secondary scenarios) no authentication (meaning that if the primary method fails, authentication is denied).
  • Page 86 TACACS+ Authentication Configuring TACACS+ on the Switch Table 4-1. AAA Authentication Parameters Name Default Range Function console Specifies whether the command is configuring authentication for the console port - or - or Telnet access method for the switch. telnet enable Specifies the privilege level for the access method being configured.
  • Page 87 TACACS+ Authentication Configuring TACACS+ on the Switch Table 4-2. Primary/Secondary Authentication Table Access Method and Authentication Options Effect on Access Attempts Privilege Level Primary Secondary Console — Login local none* Local username/password access only. tacacs local If Tacacs+ server unavailable, uses local username/password access. Console —...
  • Page 88 TACACS+ Authentication Configuring TACACS+ on the Switch For example, here is a set of access options and the corresponding commands to configure them: Console Login (Operator or Read-Only) Access: Primary using TACACS+ server. Secondary using Local. ProCurve (config)# aaa authentication console login tacacs local Console Enable (Manager or Read/Write) Access: Primary using TACACS+ server.

  • Page 89: Configuring The Switch's Tacacs+ Server Access

    TACACS+ Authentication Configuring TACACS+ on the Switch Configuring the Switch’s TACACS+ Server Access The tacacs-server command configures these parameters: The host IP address(es) for up to three TACACS+ servers; one first- ■ choice and up to two backups. Designating backup servers provides for a continuation of authentication services in case the switch is unable to contact the first-choice server.
  • Page 90 TACACS+ Authentication Configuring TACACS+ on the Switch Syntax: tacacs-server host < ip-addr > key-string [key < >] Adds a TACACS+ server and optionally assigns a server- specific encryption key. [no] tacacs-server host < ip-addr > Removes a TACACS+ server assignment (including its server-specific encryption key, if any).
  • Page 91 TACACS+ Authentication Configuring TACACS+ on the Switch Table 4-3. Details on Configuring TACACS Servers and Keys Name Default Range tacacs-server host <ip-addr> none This command specifies the IP address of a device running a TACACS+ server application. Optionally, it can also specify the unique, per-server encryption key to use when each assigned server has its own, unique key.
  • Page 92 TACACS+ Authentication Configuring TACACS+ on the Switch Name Default Range [ key <key-string> ] none (null) n/a Specifies the optional, global “encryption key” that is also assigned in the TACACS+ server(s) that the switch will access for authentication. This option is subordinate to any “per-server” encryption keys you assign, and applies only to accessing TACACS+ servers for which you have not given the switch a “per-server”...
  • Page 93 TACACS+ Authentication Configuring TACACS+ on the Switch The “10” server is now the “first-choice” TACACS+ authentication device. Figure 4-5. Example of the Switch After Assigning a Different “First-Choice” Server To remove the 10.28.227.15 device as a TACACS+ server, you would use this command: ProCurve(config)# no tacacs-server host 10.28.227.15 Configuring an Encryption Key.

  • Page 94: How Authentication Operates

    TACACS+ Authentication Configuring TACACS+ on the Switch To delete a per-server encryption key in the switch, re-enter the tacacs-server host command without the key parameter. For example, if you have north01 configured as the encryption key for a TACACS+ server with an IP address of 10.28.227.104 and you want to eliminate the key, you would use this command: ProCurve(config)# tacacs-server host 10.28.227.104 Note...
  • Page 95 TACACS+ Authentication Configuring TACACS+ on the Switch Terminal “A” Directly Accessing This First-Choice Switch Via Switch’s Console Port TACACS+ Server ProCurve Switch Configured for TACACS+ Operation Second-Choice TACACS+ Server (Optional) Terminal “B” Remotely Accessing This Switch Via Telnet ProCurve Switch Configured for Third-Choice TACACS+ Operation...

  • Page 96: Local Authentication Process

    TACACS+ Authentication Configuring TACACS+ on the Switch • If the username/password pair entered at the requesting terminal does not match a username/password pair previously stored in the server, access is denied. In this case, the terminal is again prompted to enter a username and repeat steps 2 through 4. In the default configuration, the switch allows up to three attempts to authenticate a login session.

  • Page 97: Using The Encryption Key

    TACACS+ Authentication Configuring TACACS+ on the Switch Note The switch’s menu allows you to configure only the local Operator and Manager passwords, and not any usernames. In this case, all prompts for local authentication will request only a local password. However, if you use the CLI or the web browser interface to configure usernames for local access, you will see a prompt for both a local username and a local password during local authentication.
  • Page 98 TACACS+ Authentication Configuring TACACS+ on the Switch in the switch must be identical to the encryption key configured in the corresponding TACACS+ server. If the key is the same for all TACACS+ servers the switch will use for authentication, then configure a global key in the switch.

  • Page 99: Controlling Web Browser Interface Access When Using Tacacs+ Authentication

    TACACS+ Authentication Configuring TACACS+ on the Switch Controlling Web Browser Interface Access When Using TACACS+ Authentication Configuring the switch for TACACS+ authentication does not affect web browser interface access. To prevent unauthorized access through the web browser interface, do one or more of the following: ■...

  • Page 100: Messages Related To Tacacs+ Operation

    TACACS+ Authentication Configuring TACACS+ on the Switch Messages Related to TACACS+ Operation The switch generates the CLI messages listed below. However, you may see other messages generated in your TACACS+ server application. For informa- tion on such messages, refer to the documentation you received with the application.

  • Page 101: Operating Notes

    TACACS+ Authentication Configuring TACACS+ on the Switch Operating Notes ■ If you configure Authorized IP Managers on the switch, it is not necessary to include any devices used as TACACS+ servers in the authorized manager list. That is, authentication traffic between a TACACS+ server and the switch is not subject to Authorized IP Manager controls configured on the switch.
  • Page 102 TACACS+ Authentication Configuring TACACS+ on the Switch 4-28...

  • Page 103: Radius Authentication And Accounting

    RADIUS Authentication and Accounting Contents Overview ............5-2 Terminology .

  • Page 104: Overview

    RADIUS Authentication and Accounting Overview Overview Feature Default Menu Configuring RADIUS Authentication None Configuring RADIUS Accounting None 5-17 Viewing RADIUS Statistics 5-25 RADIUS (Remote Authentication Dial-In User Service) enables you to use up to three servers (one primary server and one or two backups) and maintain separate authentication and accounting for each RADIUS server employed.

  • Page 105: Terminology

    RADIUS Authentication and Accounting Terminology Terminology CHAP (Challenge-Handshake Authentication Protocol): A challenge- response authentication protocol that uses the Message Digest 5 (MD5) hashing scheme to encrypt a response to a challenge from a RADIUS server. EAP (Extensible Authentication Protocol): A general PPP authentication protocol that supports multiple authentication mechanisms.

  • Page 106: Switch Operating Rules For Radius

    RADIUS Authentication and Accounting Switch Operating Rules for RADIUS Switch Operating Rules for RADIUS ■ You must have at least one RADIUS server accessible to the switch. The switch supports authentication and accounting using up to three ■ RADIUS servers. The switch accesses the servers in the order in which they are listed by show radius (page 5-25).

  • Page 107: General Radius Setup Procedure

    RADIUS Authentication and Accounting General RADIUS Setup Procedure General RADIUS Setup Procedure Preparation: Configure one to three RADIUS servers to support the switch. (That is, one primary server and one or two backups.) Refer to the documentation provided with the RADIUS server application. Before configuring the switch, collect the information outlined below.

  • Page 108: Configuring The Switch For Radius Authentication

    RADIUS Authentication and Accounting Configuring the Switch for RADIUS Authentication • Determine whether you can use one, global encryption key for all RADIUS servers or if unique keys will be required for specific servers. With multiple RADIUS servers, if one key applies to two or more of these servers, then you can configure this key as the global encryption key.

  • Page 109: Outline Of The Steps For Configuring Radius Authentication

    RADIUS Authentication and Accounting Configuring the Switch for RADIUS Authentication Outline of the Steps for Configuring RADIUS Authentication There are three main steps to configuring RADIUS authentication: Configure RADIUS authentication for controlling access through one or more of the following •...

  • Page 110: Configure Authentication For The Access Methods You Want Radius To Protect

    RADIUS Authentication and Accounting Configuring the Switch for RADIUS Authentication out on a server that is unavailable. If you want to use this feature, select a dead-time period of 1 to 1440 minutes. (Default: 0—disabled; range: 1 - 1440 minutes.) If your first-choice server was initially unavailable, but then becomes available before the dead-time expires, you can nullify the dead-time by resetting it to zero and then trying to log on again.
  • Page 111 RADIUS Authentication and Accounting Configuring the Switch for RADIUS Authentication Syntax: aaa authentication < console | telnet | ssh | web > < enable | login > < radius > Configures RADIUS as the primary password authentication method for console, Telnet, SSH and/or the Web browser interface. (The default primary <...

  • Page 112: Configure The Switch To Access A Radius Server

    RADIUS Authentication and Accounting Configuring the Switch for RADIUS Authentication 2. Configure the Switch To Access a RADIUS Server This section describes how to configure the switch to interact with a RADIUS server for both authentication and accounting services. Note If you want to configure RADIUS accounting on the switch, go to page 5-17: “Configuring RADIUS Accounting”...
  • Page 113 RADIUS Authentication and Accounting Configuring the Switch for RADIUS Authentication For example, suppose you have configured the switch as shown in figure 5-3 and you now need to make the following changes: Change the encryption key for the server at 10.33.18.127 to “source0127”. Add a RADIUS server with an IP address of 10.33.18.119 and a server- specific encryption key of “source0119”.

  • Page 114: Configure The Switch's Global Radius Parameters

    RADIUS Authentication and Accounting Configuring the Switch for RADIUS Authentication 3. Configure the Switch’s Global RADIUS Parameters You can configure the switch for the following global RADIUS parameters: Number of login attempts: In a given session, specifies how many ■ tries at entering the correct username and password pair are allowed before access is denied and the session terminated.
  • Page 115 RADIUS Authentication and Accounting Configuring the Switch for RADIUS Authentication Syntax: aaa authentication num-attempts < 1 - 10 > Specifies how many tries for entering the correct user- name and password before shutting down the session due to input errors. (Default: 3; Range: 1 - 10). [no] radius-server key <...
  • Page 116 RADIUS Authentication and Accounting Configuring the Switch for RADIUS Authentication For example, suppose that your switch is configured to use three RADIUS servers for authenticating access through Telnet and SSH. Two of these servers use the same encryption key. In this case your plan is to configure the switch with the following global authentication parameters: Allow only two tries to correctly enter username and password.
  • Page 117 RADIUS Authentication and Accounting Configuring the Switch for RADIUS Authentication ProCurve# show authentication Status and Counters - Authentication Information After two attempts failing due Login Attempts : 2 to username or password Respect Privilege : Disabled entry errors, the switch will terminate the session.

  • Page 118: Local Authentication Process

    RADIUS Authentication and Accounting Local Authentication Process Local Authentication Process When the switch is configured to use RADIUS, it reverts to local authentication only if one of these two conditions exists: “Local” is the authentication option for the access method being used. ■...

  • Page 119: Controlling Web Browser Interface Access When Using Radius Authentication

    RADIUS Authentication and Accounting Controlling Web Browser Interface Access When Using RADIUS Authentication Controlling Web Browser Interface Access When Using RADIUS Authentication To prevent unauthorized access through the web browser interface, do one or more of the following: ■ Configure local authentication (a Manager user name and password and, optionally, an Operator user name and password) on the switch.
  • Page 120 RADIUS Authentication and Accounting Configuring RADIUS Accounting Note This section assumes you have already: Configured RADIUS authentication on the switch for one or more ■ access methods ■ Configured one or more RADIUS servers to support the switch If you have not already done so, refer to “General RADIUS Setup Procedure” on page 5-5 before continuing here.

  • Page 121: Operating Rules For Radius Accounting

    RADIUS Authentication and Accounting Configuring RADIUS Accounting The switch forwards the accounting information it collects to the designated RADIUS server, where the information is formatted, stored, and managed by the server. For more information on this aspect of RADIUS accounting, refer to the documentation provided with your RADIUS server.
  • Page 122 RADIUS Authentication and Accounting Configuring RADIUS Accounting – Optional—if you are also configuring the switch for RADIUS authentication, and need a unique encryption key for use during authentication sessions with the RADIUS server you are desig- nating, configure a server-specific key. This key overrides the global encryption key you can also configure on the switch, and must match the encryption key used on the specified RADIUS server.
  • Page 123 RADIUS Authentication and Accounting Configuring RADIUS Accounting Syntax: [no] radius-server host < ip-address > Adds a server to the RADIUS configuration or (with no) deletes a server from the configuration. [acct-port < port-number >] Optional. Changes the UDP destination port for accounting requests to the specified RADIUS server.

  • Page 124: Reports To The Radius Server

    RADIUS Authentication and Accounting Configuring RADIUS Accounting Because the radius-server command includes an acct-port element with a non- default 1750, the switch assigns this value to the accounting port UDP port numbers. Because auth-port was not included in the command, the authentication UDP port is set to the default 1812.
  • Page 125 RADIUS Authentication and Accounting Configuring RADIUS Accounting Start-Stop: ■ • Send a start record accounting notice at the beginning of the account- ing session and a stop record notice at the end of the session. Both notices include the latest data the switch has collected for the requested accounting type (Network, Exec, or System).
  • Page 126 RADIUS Authentication and Accounting Configuring RADIUS Accounting 3. (Optional) Configure Session Blocking and Interim Updating Options These optional parameters give you additional control over accounting data. Updates: In addition to using a Start-Stop or Stop-Only trigger, you ■ can optionally configure the switch to send periodic accounting record updates to a RADIUS server.

  • Page 127: Viewing Radius Statistics

    RADIUS Authentication and Accounting Viewing RADIUS Statistics Viewing RADIUS Statistics General RADIUS Statistics Syntax: show radius [host < ip-addr >] Shows general RADIUS configuration, including the server IP addresses. Optional form shows data for a specific RADIUS host. To use show radius, the server’s IP address must be configured in the switch, which.
  • Page 128 RADIUS Authentication and Accounting Viewing RADIUS Statistics Figure 5-11. RADIUS Server Information From the Show Radius Host Command Table 5-2. Values for Show Radius Host Output (Figure 5-11) Term Definition Round Trip Time The time interval between the most recent Accounting-Response and the Accounting- Request that matched it from this RADIUS accounting server.

  • Page 129: Radius Authentication Statistics

    RADIUS Authentication and Accounting Viewing RADIUS Statistics Term Definition Access Requests The number of RADIUS Access-Requests the switch has sent since it was last rebooted. (Does not include retransmissions.) Accounting Requests The number of RADIUS Accounting-Request packets sent. This does not include retransmissions.

  • Page 130: Radius Accounting Statistics

    RADIUS Authentication and Accounting Viewing RADIUS Statistics Figure 5-13. Example of RADIUS Authentication Information from a Specific Server RADIUS Accounting Statistics Syntax: show accounting Lists configured accounting interval, “Empty User” suppres- sion status, accounting types, methods, and modes. show radius accounting Lists accounting statistics for the RADIUS server(s) config- ured in the switch (using the radius-server host command).
  • Page 131 RADIUS Authentication and Accounting Viewing RADIUS Statistics Figure 5-15. Example of RADIUS Accounting Information for a Specific Server Figure 5-16. Example Listing of Active RADIUS Accounting Sessions on the Switch 5-29...

  • Page 132: Changing Radius-Server Access Order

    RADIUS Authentication and Accounting Changing RADIUS-Server Access Order Changing RADIUS-Server Access Order The switch tries to access RADIUS servers according to the order in which their IP addresses are listed by the show radius command. Also, when you add a new server IP address, it is placed in the highest empty position in the list. Adding or deleting a RADIUS server IP address leaves an empty position, but does not change the position of any other server addresses in the list.
  • Page 133 RADIUS Authentication and Accounting Changing RADIUS-Server Access Order Re-enter 10.10.10.003. Because the switch places a newly entered address in the highest-available position, this address becomes first in the list. Re-enter 10.10.10.001. Because the only position open is the third position, this address becomes last in the list.

  • Page 134: Messages Related To Radius Operation

    RADIUS Authentication and Accounting Messages Related to RADIUS Operation Messages Related to RADIUS Operation Message Meaning A designated RADIUS server is not responding to an Can’t reach RADIUS server < x.x.x.x >. authentication request. Try pinging the server to determine whether it is accessible to the switch. If the server is accessible, then verify that the switch is using the correct encryption key and that the server is correctly configured to receive an authentication request from the...

  • Page 135: Configuring Secure Shell (Ssh)

    Configuring Secure Shell (SSH) Contents Overview ............6-2 Terminology .

  • Page 136: Overview

    Configuring Secure Shell (SSH) Overview Overview Feature Default Menu Generating a public/private key pair on the switch page 6-10 Using the switch’s public key page 6-13 Enabling SSH Disabled page 6-15 Enabling client public-key authentication Disabled pages 6-19, 6-22 Enabling user authentication Disabled page 6-18 The ProCurve switches covered in this guide use Secure Shell version 2...
  • Page 137 Configuring Secure Shell (SSH) Overview Note SSH in the ProCurve is based on the OpenSSH software toolkit. For more information on OpenSSH, visit http://www.openssh.com . Switch SSH and User Password Authentication . This option is a subset of the client public-key authentication show in figure 6-1. It occurs if the switch has SSH enabled but does not have login access (login public-key) configured to authenticate the client’s key.

  • Page 138: Terminology

    Configuring Secure Shell (SSH) Terminology Terminology ■ SSH Server: A ProCurve switch with SSH enabled. Key Pair: A pair of keys generated by the switch or an SSH client ■ application. Each pair includes a public key, that can be read by anyone and a private key, that is held internally in the switch or by a client.

  • Page 139: Prerequisite For Using Ssh

    Configuring Secure Shell (SSH) Prerequisite for Using SSH Prerequisite for Using SSH Before using the switch as an SSH server, you must install a publicly or commercially available SSH client application on the computer(s) you use for management access to the switch. If you want client public-key authentication (page 6-2), then the client program must have the capability to generate or import keys.

  • Page 140: Steps For Configuring And Using Ssh For Switch And Client Authentication

    Configuring Secure Shell (SSH) Steps for Configuring and Using SSH for Switch and Client Authentication Steps for Configuring and Using SSH for Switch and Client Authentication For two-way authentication between the switch and an SSH client, you must use the login (Operator) level. Table 6-1.
  • Page 141 Configuring Secure Shell (SSH) Steps for Configuring and Using SSH for Switch and Client Authentication B. Switch Preparation Assign a login (Operator) and enable (Manager) password on the switch (page 6-9). Generate a public/private key pair on the switch (page 6-10). You need to do this only once.

  • Page 142: General Operating Rules And Notes

    Configuring Secure Shell (SSH) General Operating Rules and Notes General Operating Rules and Notes ■ Public keys generated on an SSH client must be exportable to the switch. The switch can only store ten client key pairs. The switch’s own public/private key pair and the (optional) client ■...

  • Page 143: Configuring The Switch For Ssh Operation

    Configuring Secure Shell (SSH) Configuring the Switch for SSH Operation Configuring the Switch for SSH Operation SSH-Related Commands in This Section Page show ip ssh 6-17 show crypto client-public-key [manager | operator] [keylist-str] [< 6-25 babble | fingerprint >] show crypto host-public-key [< babble | fingerprint >] 6-14 show authentication 6-21...

  • Page 144: Generate The Switch's Public And Private Key Pair

    Configuring Secure Shell (SSH) Configuring the Switch for SSH Operation Figure 6-4. Example of Configuring Local Passwords 2. Generate the Switch’s Public and Private Key Pair You must generate a public and private host key pair on the switch. The switch uses this key pair, along with a dynamically generated session key pair to negotiate an encryption method and session with an SSH client trying to connect to the switch.
  • Page 145 Configuring Secure Shell (SSH) Configuring the Switch for SSH Operation Notes When you generate a host key pair on the switch, the switch places the key pair in flash memory (and not in the running-config file). Also, the switch maintains the key pair across reboots, including power cycles. You should consider this key pair to be "permanent";...
  • Page 146 Configuring Secure Shell (SSH) Configuring the Switch for SSH Operation For example, to generate and display a new key: Host Public Key for the Switch Version 1 and Version 2 Views of Same Host Public Key Figure 6-5. Example of Generating a Public/Private Host Key Pair for the Switch The 'show crypto host-public-key' displays data in two different formats because your client may store it in either of these formats after learning the key.

  • Page 147: Provide The Switch's Public Key To Clients

    Configuring Secure Shell (SSH) Configuring the Switch for SSH Operation 3. Provide the Switch’s Public Key to Clients When an SSH client contacts the switch for the first time, the client will challenge the connection unless you have already copied the key into the client’s "known host"...
  • Page 148 Configuring Secure Shell (SSH) Configuring the Switch for SSH Operation Add any data required by your SSH client application. For example Before saving the key to an SSH client’s "known hosts" file you may have to insert the switch’s IP address: Modulus <n>...

  • Page 149: Enable Ssh On The Switch And Anticipate Ssh Client Contact Behavior

    Configuring Secure Shell (SSH) Configuring the Switch for SSH Operation Phonetic "Hash" of Switch’s Public Key Hexadecimal "Fingerprints" of the Same Switch Figure 6-9. Examples of Visual Phonetic and Hexadecimal Conversions of the Switch’s Public Key The two commands shown in figure 6-9 convert the displayed format of the switch’s (host) public key for easier visual comparison of the switch’s public key to a copy of the key in a client’s “known host”...
  • Page 150 Configuring Secure Shell (SSH) Configuring the Switch for SSH Operation SSH Client Contact Behavior. At the first contact between the switch and an SSH client, if you have not copied the switch’s public key into the client, your client’s first connection to the switch will question the connection and, for security reasons, give you the option of accepting or refusing.
  • Page 151 Configuring Secure Shell (SSH) Configuring the Switch for SSH Operation [timeout < 5 - 120 >] The SSH login timeout value (default: 120 seconds). The ip ssh key-size command affects only a per-session, internal server key the switch creates, uses, and discards. This key is not accessible from the user interface.

  • Page 152: Configure The Switch For Ssh Authentication

    Configuring Secure Shell (SSH) Configuring the Switch for SSH Operation C a u t i o n Protect your private key file from access by anyone other than yourself. If someone can access your private key file, they can then penetrate SSH security on the switch by appearing to be you.
  • Page 153 Configuring Secure Shell (SSH) Configuring the Switch for SSH Operation Syntax: aaa authentication ssh login < local | tacacs | radius >[< local | none >] Configures a password method for the primary and second- ary login (Operator) access. If you do not specify an optional secondary method, it defaults to none.
  • Page 154 Configuring Secure Shell (SSH) Configuring the Switch for SSH Operation Syntax: copy tftp pub-key-file < ip-address > < filename > Copies a public key file into the switch. aaa authentication ssh login public-key Configures the switch to authenticate a client public-key at the login level with an optional secondary password method (Default: none).
  • Page 155 Configuring Secure Shell (SSH) Configuring the Switch for SSH Operation Configures Manager user- Configures the name and password. switch to allow SSH access only a client whose public key matches one of the keys in the public key file Configures the primary and secondary password methods for Copies a public key file Manager (enable) access.

  • Page 156: Use An Ssh Client To Access The Switch

    Configuring Secure Shell (SSH) Further Information on SSH Client Public-Key Authentication 6. Use an SSH Client To Access the Switch Test the SSH configuration on the switch to ensure that you have achieved the level of SSH operation you want for the switch. If you have problems, refer to "RADIUS-Related Problems"...
  • Page 157 Configuring Secure Shell (SSH) Further Information on SSH Client Public-Key Authentication The client sends its public key to the switch with a request for authenti- cation. The switch compares the client’s public key to those stored in the switch’s client-public-key file. (As a prerequisite, you must use the switch’s copy tftp command to download this file to flash.) If there is not a match, and you have not configured the switch to accept a login password as a secondary authentication method, the switch denies...
  • Page 158 Configuring Secure Shell (SSH) Further Information on SSH Client Public-Key Authentication To Create a Client-Public-Key Text File. These steps describe how to copy client-public-keys into the switch for RSA challenge-response authenti- cation, and require an understanding of how to use your SSH client applica- tion.
  • Page 159 Configuring Secure Shell (SSH) Further Information on SSH Client Public-Key Authentication Use your SSH client application to create a public/private key pair. Refer to the documentation provided with your SSH client application for details. The switch supports the following client-public-key properties: Property Supported Comments...
  • Page 160 Configuring Secure Shell (SSH) Further Information on SSH Client Public-Key Authentication Syntax: copy tftp pub-key-file <ip-address> <filename> [<append | manager | operator>] Copies a public key file from a TFTP server into flash memory in the switch. The append option adds the key(s) for operator access. The manager option adds the key(s) for manager access;...
  • Page 161 Configuring Secure Shell (SSH) Further Information on SSH Client Public-Key Authentication For example, if you wanted to copy a client public-key file named clientkeys.txt from a TFTP server at 10.38.252.195 and then display the file contents: Key Index Number Figure 6-14. Example of Copying and Displaying a Client Public-Key File Containing Two Client Public Keys Replacing or Clearing the Public Key File.

  • Page 162: Messages Related To Ssh Operation

    Configuring Secure Shell (SSH) Messages Related to SSH Operation Syntax: aaa authentication ssh login public-key none Allows SSH client access only if the switch detects a match between the client’s public key and an entry in the client- public-key file most recently copied into the switch. C a u t i o n To enable client public-key authentication to block SSH clients whose public keys are not in the client-public-key file copied into the switch, you must...
  • Page 163 Configuring Secure Shell (SSH) Messages Related to SSH Operation Message Meaning The client key does not exist in the switch. Use copy Client public key file corrupt or tftp to download the key from a TFTP server. not found. Use 'copy tftp pub-key- file <ip-addr>...
  • Page 164 Configuring Secure Shell (SSH) Messages Related to SSH Operation 6-30...

  • Page 165: Configuring Secure Socket Layer (Ssl)

    Configuring Secure Socket Layer (SSL) Contents Overview ............7-2 Terminology .

  • Page 166: Overview

    Configuring Secure Socket Layer (SSL) Overview Overview Feature Default Menu Generating a Self Signed Certificate on the switch page 7-9 page 7-13 Generating a Certificate Request on the switch page 7-15 Enabling SSL Disabled page 7-17 page 7-19 The ProCurve switches covered by this manual use Secure Socket Layer Version 3 (SSLv3) and support for Transport Layer Security(TLSv1) to provide remote web access to the switches via encrypted paths between the switch and management station clients capable of SSL/TLS operation.

  • Page 167: Terminology

    Configuring Secure Socket Layer (SSL) Terminology 1. Switch-to-Client SSL Cert. SSL Client ProCurve Browser Switch 2. User-to-Switch (login password and (SSL enable password authentication) Server) options: – Local – TACACS+ – RADIUS Figure 7-1. Switch/User Authentication SSL on the ProCurve switches supports these data encryption methods: ■...
  • Page 168 Configuring Secure Socket Layer (SSL) Terminology Self-Signed Certificate: A certificate not verified by a third-party ■ certificate authority (CA). Self-signed certificates provide a reduced level of security compared to a CA-signed certificate. CA-Signed Certificate: A certificate verified by a third party certif- ■...

  • Page 169: Prerequisite For Using Ssl

    Configuring Secure Socket Layer (SSL) Prerequisite for Using SSL Prerequisite for Using SSL Before using the switch as an SSL server, you must install a publicly or commercially available SSL enabled web browser application on the com- puter(s) you use for management access to the switch. Steps for Configuring and Using SSL for Switch and Client Authentication The general steps for configuring SSL include:...

  • Page 170: General Operating Rules And Notes

    Configuring Secure Socket Layer (SSL) General Operating Rules and Notes General Operating Rules and Notes ■ Once you generate a certificate on the switch you should avoid re- generating the certificate without a compelling reason. Otherwise, you will have to re-introduce the switch’s certificate on all manage- ment stations (clients) you previously set up for SSL access to the switch.

  • Page 171: Assign Local Login (Operator) And Enable (Manager) Password

    Configuring Secure Socket Layer (SSL) General Operating Rules and Notes Configuring the Switch for SSL Operation SSL-Related CLI Commands in This Section Page web-management ssl page 7-19 show config page 7-19 show crypto host-cert page 7-12 crypto key generate cert [rsa] <512 | 768 |1024> page 7-10 zeroize cert page 7-10...
  • Page 172 Configuring Secure Socket Layer (SSL) General Operating Rules and Notes Using the web browser interface To Configure Local Passwords. You can configure both the Operator and Manager password on one screen. To access the web browser interface refer to the chapter titled “Using the Web Browser Interface”...

  • Page 173: Generate The Switch's Server Host Certificate

    Configuring Secure Socket Layer (SSL) General Operating Rules and Notes 2. Generate the Switch’s Server Host Certificate You must generate a server certificate on the switch before enabling SSL. The switch uses this server certificate, along with a dynamically generated session key pair to negotiate an encryption method and session with a browser trying to connect via SSL to the switch.
  • Page 174 Configuring Secure Socket Layer (SSL) General Operating Rules and Notes To Generate or Erase the Switch’s Server Certificate with the Because the host certificate is stored in flash instead of the running-config file, it is not necessary to use write memory to save the certificate. Erasing the host certificate automatically disables SSL.

  • Page 175: Comments On Certificate Fields

    Configuring Secure Socket Layer (SSL) General Operating Rules and Notes Comments on Certificate Fields. There are a number arguments used in the generation of a server certificate. table 7-1, “Certificate Field Descriptions” describes these arguments. Table 7-1. Certificate Field Descriptions Field Name Description Valid Start Date...
  • Page 176 Configuring Secure Socket Layer (SSL) General Operating Rules and Notes Note “Zeroizing” the switch’s server host certificate or key automatically disables SSL (sets web-management ssl to No). Thus, if you zeroize the server host certificate or key and then generate a new key and server certificate, you must also re-enable SSL with the web-management ssl command before the switch can resume SSL operation.
  • Page 177 Configuring Secure Socket Layer (SSL) General Operating Rules and Notes Generate a Self-Signed Host Certificate with the Web browser interface You can configure SSL from the web browser interface. For more information on how to access the web browser interface, refer to the chapter titled “Using the Web Browser Interface”...
  • Page 178 Configuring Secure Socket Layer (SSL) General Operating Rules and Notes For example, to generate a new host certificate via the web browsers inter- face: Security Tab SSL button Create Certificate Button Certificate Type Box Key Size Selection Certificate Arguments Figure 7-5. Self-Signed Certificate generation via SSL Web Browser Interface Screen To view the current host certificate in the web browser interface: Select the Security tab.
  • Page 179 Configuring Secure Socket Layer (SSL) General Operating Rules and Notes Current SSL Host Certificate Figure 7-6. Web browser Interface showing current SSL Host Certificate Generate a CA-Signed server host certificate with the Web Browser Interface This section describes how to install a CA-Signed server host certificate from the web browser interface.
  • Page 180 Configuring Secure Socket Layer (SSL) General Operating Rules and Notes that involves having the certificate authority verify the certificate request and then digitally signing the request to generate a certificate response (the usable server host certificate). The third phase is the download phase consisting of pasting to the switch web server the certificate response, which is then validated by the switch and put into use by enabling SSL.

  • Page 181: Enable Ssl On The Switch And Anticipate Ssl Browser Contact Behavior

    Configuring Secure Socket Layer (SSL) General Operating Rules and Notes Certificate Request Certificate Request Reply -----BEGIN CERTIFICATE----- MIICZDCCAc2gAwIBAgIDMA0XMA0GCSqGSIb3DQEBBAUAMIGHMQswCQYDVQQGEwJa QTEiMCAGA1UECBMZRk9SIFRFU1RJTkcgUFVSUE9TRVMgT05MWTEdMBsGA1UEChMU VGhhd3RlIENlcnRpZmljYXRpb24xFzAVBgNVBAsTDlRFU1QgVEVTVCBURVNUMRww GgYDVQQDExNUaGF3dGUgVGVzdCBDQSBSb290MB4XDTAyMTEyMjIyNTIxN1oXDTAy MTIxMzIyNTIxN1owgYQxCzAJBgNVBAYTAlpBMRUwEwYDVQQIEwxXZXN0ZXJuIENh cGUxEjAQBgNVBAcTCUNhcGUgVG93bjEUMBIGA1UEChMLT3Bwb3J0dW5pdGkxGDAW BgNVBAsTD09ubGluZSBTZXJ2aWNlczEaMBgGA1UEAxMRd3d3LmZvcndhcmQuY28u emEwWjANBgkqhkiG9w0BAQEFAANJADBGAkEA0+aMcXgVruVixw/xuASfj6G4gvXe 0uqQ7wI7sgvnTwJy9HfdbV3Zto9fdA9ZIA6EqeWchkoMCYdle3Yrrj5RwwIBA6Ml MCMwEwYDVR0lBAwwCgYIKwYBBQUHAwEwDAYDVR0TAQH/BAIwADANBgkqhkiG9w0B Figure 7-7. Example of a Certificate Request and Reply 3. Enable SSL on the Switch and Anticipate SSL Browser Contact Behavior he web-management ssl command enables SSL on the switch and modifies parameters the switch uses for transactions with clients.
  • Page 182 Configuring Secure Socket Layer (SSL) General Operating Rules and Notes Note Before enabling SSL on the switch you must generate the switch’s host certificate and key. If you have not already done so, refer to “2. Generate the Switch’s Server Host Certificate” on page 7-9. When configured for SSL, the switch uses its host certificate to authenticate itself to SSL clients, however unless you disable the standard web browser interface with the no web-management command it will be still available for...
  • Page 183 Configuring Secure Socket Layer (SSL) General Operating Rules and Notes Using the CLI interface to enable SSL Syntax: [no] web-management ssl Enables or disables SSL on the switch. [port < 1-65535 | default:443 >] The TCP port number for SSL connections (default: 443).
  • Page 184 Configuring Secure Socket Layer (SSL) General Operating Rules and Notes Enable SSL and Port number selection Figure 7-8. Using the web browser interface to enable SSL and select TCP port number N o t e o n P o r t ProCurve recommends using the default IP port number (443).

  • Page 185: Common Errors In Ssl Setup

    Configuring Secure Socket Layer (SSL) Common Errors in SSL Setup Common Errors in SSL Setup Error During Possible Cause Generating host certificate on CLI You have not generated a certificate key. (Refer to “CLI commands used to generate a Server Host Certificate” on page 7-10.) Enabling SSL on the CLI or Web browser interface You have not generated a host...
  • Page 186 Configuring Secure Socket Layer (SSL) Common Errors in SSL Setup 7-22...

  • Page 187: Configuring Port-Based And Client-Based Access Control (802.1X)

    Configuring Port-Based and Client-Based Access Control (802.1X) Contents Overview ............8-2 Why Use Port-Based or Client-Based Access Control? .
  • Page 188 Configuring Port-Based and Client-Based Access Control (802.1X) Contents Setting Up and Configuring 802.1X Open VLAN Mode ... . 8-33 802.1X Open VLAN Operating Notes ......8-37 Option For Authenticator Ports: Configure Port-Security To Allow Only 802.1X Devices .

  • Page 189: Overview

    Configuring Port-Based and Client-Based Access Control (802.1X) Overview Overview Feature Default Menu Configuring Switch Ports as 802.1X Authenticators Disabled page 8-17 Configuring 802.1X Open VLAN Mode Disabled page 8-26 Configuring Switch Ports to Operate as 802.1X Supplicants Disabled page 8-42 Displaying 802.1X Configuration, Statistics, and Counters page 8-47 How 802.1X Affects VLAN Operation...

  • Page 190: User Authentication Methods

    Configuring Port-Based and Client-Based Access Control (802.1X) Overview • Port-Based access control option allowing authentication by a single client to open the port. This option does not force a client limit and, on a port opened by an authenticated client, allows unlimited client access without requiring further authentication.
  • Page 191 Configuring Port-Based and Client-Based Access Control (802.1X) Overview 802.1X Port-Based Access Control 802.1X port-based access control provides port-level security that allows LAN access only on ports where a single 802.1X-capable client (supplicant) has entered authorized RADIUS user credentials. For reasons outlined below, this option is recommended for applications where only one client at a time can connect to the port.
  • Page 192 Configuring Port-Based and Client-Based Access Control (802.1X) Overview access from a master database in a single server (although you can use up to three RADIUS servers to provide backups in case access to the primary server fails). It also means a user can enter the same username and password pair for authentication, regardless of which switch is the access point into the LAN.

  • Page 193: Terminology

    Configuring Port-Based and Client-Based Access Control (802.1X) Terminology Terminology 802.1X-Aware: Refers to a device that is running either 802.1X authenticator software or 802.1X client software and is capable of interacting with other devices on the basis of the IEEE 802.1X standard. Authorized-Client VLAN: Like the Unauthorized-Client VLAN, this is a conventional, static VLAN previously configured on the switch by the System Administrator.
  • Page 194 Configuring Port-Based and Client-Based Access Control (802.1X) Terminology as defined in the EAPOL: Extensible Authentication Protocol Over LAN, 802.1X standard Friendly Client: A client that does not pose a security risk if given access to the switch and your network. MD5: An algorithm for calculating a unique digital signature over a stream of bytes.
  • Page 195 Configuring Port-Based and Client-Based Access Control (802.1X) Terminology designate as the Unauthorized-Client VLAN.) A port configured to use a given Unauthorized-Client VLAN does not have to be statically configured as a member of that VLAN as long as at least one other port on the switch is statically configured as a tagged or untagged member of the same Unauthorized-Client VLAN.

  • Page 196: General 802.1X Authenticator Operation

    Configuring Port-Based and Client-Based Access Control (802.1X) General 802.1X Authenticator Operation General 802.1X Authenticator Operation This operation provides security on a direct, point-to-point link between a single client and the switch, where both devices are 802.1X-aware. (If you expect desirable clients that do not have the necessary 802.1X supplicant software, you can provide a path for downloading such software by using the 802.1X Open VLAN mode—refer to “802.1X Open VLAN Mode”...

  • Page 197: Switch-Port Supplicant Operation

    Configuring Port-Based and Client-Based Access Control (802.1X) General 802.1X Authenticator Operation • If 802.1X (port-access) on the switch is configured for local authenti- cation, then: The switch compares the client’s credentials with the username and password configured in the switch (Operator or Manager level).

  • Page 198: General Operating Rules And Notes

    Configuring Port-Based and Client-Based Access Control (802.1X) General Operating Rules and Notes The RADIUS server then responds with an MD5 access challenge that switch “B” forwards to port A1 on switch “A”. Port A1 replies with an MD5 hash response based on its username and password or other unique credentials.
  • Page 199 Configuring Port-Based and Client-Based Access Control (802.1X) General Operating Rules and Notes Using port-based 802.1X authentication, when a port on the switch is ■ configured as an authenticator, one authenticated client opens the port. Other clients that are not running an 802.1X supplicant applica- tion can have access to the switch and network through the opened port.

  • Page 200: General Setup Procedure For 802.1X Access Control

    Configuring Port-Based and Client-Based Access Control (802.1X) General Setup Procedure for 802.1X Access Control General Setup Procedure for 802.1X Access Control Do These Steps Before You Configure 802.1X Operation Configure a local username and password on the switch for both the Operator (login) and Manager (enable) access levels.

  • Page 201: Overview: Configuring 802.1X Authentication On The Switch

    Configuring Port-Based and Client-Based Access Control (802.1X) General Setup Procedure for 802.1X Access Control Overview: Configuring 802.1X Authentication on the Switch This section outlines the steps for configuring 802.1X on the switch. For detailed information on each step, refer to “RADIUS Authentication and Accounting”...
  • Page 202 Configuring Port-Based and Client-Based Access Control (802.1X) General Setup Procedure for 802.1X Access Control If you are using Port Security on the switch, configure the switch to allow only 802.1X access on ports configured for 802.1X operation, and (if desired) the action to take if an unauthorized device attempts access through an 802.1X port.

  • Page 203: Configuring Switch Ports As 802.1X Authenticators

    Configuring Port-Based and Client-Based Access Control (802.1X) Configuring Switch Ports as 802.1X Authenticators Configuring Switch Ports as 802.1X Authenticators 802.1X Authentication Commands Page [no] aaa port-access authenticator < [ethernet] < port-list > 8-18 [control | quiet-period | tx-period | client-limit | supplicant-timeout | 8-18 server-timeout | logoff-period | max-requests | reauth-period | auth-vid | unauth-vid | initialize | reauthenticate | clear-statistics]...
  • Page 204 Configuring Port-Based and Client-Based Access Control (802.1X) Configuring Switch Ports as 802.1X Authenticators A. Enable the Selected Ports as Authenticators and Enable the (Default) Port-Based Authentication Syntax: [ no ] aaa port-access authenticator < port-list > Enables specified ports to operate as 802.1X authenticators and enables port-based authentication.
  • Page 205 Configuring Port-Based and Client-Based Access Control (802.1X) Configuring Switch Ports as 802.1X Authenticators Port-Based 802.1X Authentication. no aaa port-access authenticator client-limit Used to convert a port from client-based authentication to port-based authentication, which is the default setting for ports on which authentication is enabled. (Executing aaa port-access authenticator <...

  • Page 206: Reconfigure Settings For Port-Access

    Configuring Port-Based and Client-Based Access Control (802.1X) Configuring Switch Ports as 802.1X Authenticators 2. Reconfigure Settings for Port-Access The commands in this section are initially set by default and can be reconfig- ured as needed. Syntax: aaa port-access authenticator < port-list > [control <...
  • Page 207 Configuring Port-Based and Client-Based Access Control (802.1X) Configuring Switch Ports as 802.1X Authenticators [quiet-period < 0 - 65535 >] Sets the period during which the port does not try to acquire a supplicant. The period begins after the last attempt authorized by the max-requests parameter fails (next page).
  • Page 208 Configuring Port-Based and Client-Based Access Control (802.1X) Configuring Switch Ports as 802.1X Authenticators [reauth-period < 0 - 9999999 >] Sets the period of time after which clients connected must be re-authenticated. When the timeout is set to 0 the reauthentication is disabled (Default: 0 second) [unauth-vid <...

  • Page 209: Configure The 802.1X Authentication Method

    Configuring Port-Based and Client-Based Access Control (802.1X) Configuring Switch Ports as 802.1X Authenticators 3. Configure the 802.1X Authentication Method This task specifies how the switch will authenticate the credentials provided by a supplicant connected to a switch port configured as an 802.1X authenti- cator.

  • Page 210: Enter The Radius Host Ip Address(Es)

    Configuring Port-Based and Client-Based Access Control (802.1X) Configuring Switch Ports as 802.1X Authenticators 4. Enter the RADIUS Host IP Address(es) If you selected either eap-radius or chap-radius for the authentication method, configure the switch to use 1 to 3 RADIUS servers for authentication. The following syntax shows the basic commands.

  • Page 211: Optionally Resetting Authenticator Operation

    Configuring Port-Based and Client-Based Access Control (802.1X) Configuring Switch Ports as 802.1X Authenticators 6. Optionally Resetting Authenticator Operation After authentication has begun operating, these commands can be used to reset authentication and related statistics on specific ports. Syntax: aaa port-access authenticator < port-list > [initialize] On the specified ports, blocks inbound and outbound traffic and restarts the 802.1X authentication process.

  • Page 212: 802.1X Open Vlan Mode

    Configuring Port-Based and Client-Based Access Control (802.1X) 802.1X Open VLAN Mode 802.1X Open VLAN Mode 802.1X Authentication Commands page 8-17 802.1X Supplicant Commands page 8-42 802.1X Open VLAN Mode Commands [no] aaa port-access authenticator [e] < port-list > page 8-37 [auth-vid <...

  • Page 213: Vlan Membership Priorities

    Configuring Port-Based and Client-Based Access Control (802.1X) 802.1X Open VLAN Mode Note On ports configured to allow multiple sessions using 802.1X client-based access control, all clients must use the same untagged VLAN. On a given port where there are no currently active, authenticated clients, the first authenti- cated client determines the untagged VLAN in which the port will operate for all subsequent, overlapping client sessions.

  • Page 214: Use Models For 802.1X Open Vlan Modes

    Configuring Port-Based and Client-Based Access Control (802.1X) 802.1X Open VLAN Mode Note After client authentication, the port resumes membership in any tagged VLANs for which it is configured. If the port belongs to a tagged VLAN used for 1 or 2 above, then it operates as an untagged member of that VLAN while the client is connected.
  • Page 215 Configuring Port-Based and Client-Based Access Control (802.1X) 802.1X Open VLAN Mode Table 8-1. 802.1X Open VLAN Mode Options 802.1X Per-Port Configuration Port Response No Open VLAN mode: The port automatically blocks a client that cannot initiate an authentication session. Open VLAN mode with both of the following configured: Unauthorized-Client VLAN •...
  • Page 216 Configuring Port-Based and Client-Based Access Control (802.1X) 802.1X Open VLAN Mode Table 8-1. 802.1X Open VLAN Mode Options 802.1X Per-Port Configuration Port Response Open VLAN Mode with Only an Unauthorized-Client VLAN Configured: • When the port detects a client, it automatically becomes an untagged member of this VLAN.

  • Page 217: Operating Rules For Authorized-Client And Unauthorized-Client Vlans

    Configuring Port-Based and Client-Based Access Control (802.1X) 802.1X Open VLAN Mode Table 8-1. 802.1X Open VLAN Mode Options 802.1X Per-Port Configuration Port Response Open VLAN Mode with Only an Authorized-Client VLAN Configured: • Port automatically blocks a client that cannot initiate an authentication session.
  • Page 218 Configuring Port-Based and Client-Based Access Control (802.1X) 802.1X Open VLAN Mode Condition Rule Temporary VLAN Membership During • Port membership in a VLAN assigned to operate as the Unauthorized-Client VLAN is temporary, and ends when the client a Client Session receives authentication or the client disconnects from the port, whichever is first.
  • Page 219 Configuring Port-Based and Client-Based Access Control (802.1X) 802.1X Open VLAN Mode Condition Rule IP Addressing for a Client Connected A client can either acquire an IP address from a DHCP server or have to a Port Configured for 802.x Open a preconfigured, manual IP address before connecting to the switch.

  • Page 220: Setting Up And Configuring 802.1X Open Vlan Mode

    Configuring Port-Based and Client-Based Access Control (802.1X) 802.1X Open VLAN Mode N o t e If you use the same VLAN as the Unauthorized-Client VLAN for all authenti- cator ports, unauthenticated clients on different ports can communicate with each other. Setting Up and Configuring 802.1X Open VLAN Mode Preparation.
  • Page 221 Configuring Port-Based and Client-Based Access Control (802.1X) 802.1X Open VLAN Mode A client must either have a valid IP address configured before ■ connecting to the switch, or download one through the Unauthorized- Client VLAN from a DHCP server. In the latter case, you will need to provide DHCP services on the Unauthorized-Client VLAN.
  • Page 222 Configuring Port-Based and Client-Based Access Control (802.1X) 802.1X Open VLAN Mode Configure the 802.1X authentication type. Options include: Syntax: aaa authentication port-access < local | eap-radius | chap-radius > Determines the type of RADIUS authentication to use. local: Use the switch’s local username and password for supplicant authentication (the default).
  • Page 223 Configuring Port-Based and Client-Based Access Control (802.1X) 802.1X Open VLAN Mode Note If you want to implement the optional port security feature on the switch, you should first ensure that the ports you have configured as 802.1X authenticators operate as expected. Then refer to “Option For Authenticator Ports: Configure Port-Security To Allow Only 802.1X Devices”...

  • Page 224: 802.1X Open Vlan Operating Notes

    Configuring Port-Based and Client-Based Access Control (802.1X) 802.1X Open VLAN Mode The switch's default VLAN is already configured with an IP address ■ of 10.28.127.100 and a network mask of 255.255.255.0 ProCurve(config)# aaa authentication port-access eap-radius Configures the switch for 802.1X authentication using an EAP-RADIUS server. ProCurve(config)# aaa port-access authenticator a10-a20 Configures ports A10 - A20 as 802.1 authenticator ports.
  • Page 225 Configuring Port-Based and Client-Based Access Control (802.1X) 802.1X Open VLAN Mode If a port is configured as a tagged member of VLAN “X” that is not ■ used as an Unauthorized-Client, Authorized-Client, or RADIUS- assigned VLAN, then the port returns to tagged membership in VLAN “X”...

  • Page 226: Option For Authenticator Ports: Configure Port-Security To Allow Only 802.1X Devices

    Configuring Port-Based and Client-Based Access Control (802.1X) Option For Authenticator Ports: Configure Port-Security To Allow Only 802.1X Devices Option For Authenticator Ports: Configure Port-Security To Allow Only 802.1X Devices If you use port-security on authenticator ports, you can configure it to learn only the MAC address of the first 802.1X-aware device detected on the port.
  • Page 227 Configuring Port-Based and Client-Based Access Control (802.1X) Option For Authenticator Ports: Configure Port-Security To Allow Only 802.1X Devices N o t e o n If the port’s 802.1X authenticator control mode is configured to authorized (as B l o c k i n g a N o n - shown below, instead of auto), then the first source MAC address from any 80 2 .

  • Page 228: Configuring Switch Ports To Operate As Supplicants For 802.1X Connections To Other Switches

    Configuring Port-Based and Client-Based Access Control (802.1X) Configuring Switch Ports To Operate As Supplicants for 802.1X Connections to Other Switches Configure the port access type. Syntax: aaa port-access auth < port-list > client-limit < 1 - 8> Configures client-based 802.1X authentication on the specified ports and sets the number of authenticated devices the port is allowed to learn.
  • Page 229 Configuring Port-Based and Client-Based Access Control (802.1X) Configuring Switch Ports To Operate As Supplicants for 802.1X Connections to Other Switches Example Suppose that you want to connect two switches, where: Switch “A” has port A1 configured for 802.1X supplicant operation ■...
  • Page 230 Configuring Port-Based and Client-Based Access Control (802.1X) Configuring Switch Ports To Operate As Supplicants for 802.1X Connections to Other Switches The RADIUS server then analyzes the response and sends either a “suc- cess” or “failure” packet back through switch “B” to port A1. •...
  • Page 231 Configuring Port-Based and Client-Based Access Control (802.1X) Configuring Switch Ports To Operate As Supplicants for 802.1X Connections to Other Switches Syntax: aaa port-access supplicant [ethernet] < port-list > To enable supplicant operation on the designated ports, execute this command without any other parameters. After doing this, you can use the command again with the following parameters to configure supplicant oper- tion.
  • Page 232 Configuring Port-Based and Client-Based Access Control (802.1X) Configuring Switch Ports To Operate As Supplicants for 802.1X Connections to Other Switches [max-start < 1 - 10 >] Defines the maximum number of times the supplicant port requests authentication. See step 1 on page 8-44 for a description of how the port reacts to the authen- ticator response.

  • Page 233: Displaying 802.1X Configuration, Statistics, And Counters

    Configuring Port-Based and Client-Based Access Control (802.1X) Displaying 802.1X Configuration, Statistics, and Counters Displaying 802.1X Configuration, Statistics, and Counters 802.1X Authentication Commands page 8-17 802.1X Supplicant Commands page 8-42 802.1X Open VLAN Mode Commands page 8-26 802.1X-Related Show Commands show port-access authenticator below show port-access supplicant page 8-53...
  • Page 234 Configuring Port-Based and Client-Based Access Control (802.1X) Displaying 802.1X Configuration, Statistics, and Counters show port-access authenticator (Syntax Continued) config [[e] < port-list >] Shows: • Whether port-access authenticator is active • The 802.1X configuration of the ports configured as 802.1X authenticators •...
  • Page 235 Configuring Port-Based and Client-Based Access Control (802.1X) Displaying 802.1X Configuration, Statistics, and Counters ProCurve(config)# show port-access authenticator config Port Access Authenticator Configuration Port-access authenticator activated [No] : No | Re-auth Access Quiet Supplicant Server Port | Period Control Reqs Period Timeout Timeout Timeout...

  • Page 236: Viewing 802.1X Open Vlan Mode Status

    Configuring Port-Based and Client-Based Access Control (802.1X) Displaying 802.1X Configuration, Statistics, and Counters Viewing 802.1X Open VLAN Mode Status You can examine the switch’s current VLAN status by using the show port- access authenticator and show vlan < vlan-id > commands as illustrated in this section.
  • Page 237 Configuring Port-Based and Client-Based Access Control (802.1X) Displaying 802.1X Configuration, Statistics, and Counters When the Unauth VLAN ID is configured and matches the Current VLAN ■ ID in the above command output, an unauthenticated client is connected to the port. (This assumes the port is not a statically configured member of the VLAN you are using for Unauth VLAN.) Note that because a temporary Open VLAN port assignment to either an authorized or unauthorized VLAN is an untagged VLAN membership, these...
  • Page 238 Configuring Port-Based and Client-Based Access Control (802.1X) Displaying 802.1X Configuration, Statistics, and Counters Table 8-3. Open VLAN Mode Status Status Indicator Meaning Unauthorized VLAN < vlan-id >: Lists the VID of the static VLAN configured as the unauthorized VLAN for the indicated port.

  • Page 239: Show Commands For Port-Access Supplicant

    Configuring Port-Based and Client-Based Access Control (802.1X) Displaying 802.1X Configuration, Statistics, and Counters Show Commands for Port-Access Supplicant Syntax: show port-access supplicant [[e] < port-list >] [statistics] show port-access supplicant [[e] < port-list >] Shows the port-access supplicant configuration (excluding the secret parameter) for all ports or < port- list >...

  • Page 240: How Radius/802.1X Authentication Affects Vlan Operation

    Configuring Port-Based and Client-Based Access Control (802.1X) How RADIUS/802.1X Authentication Affects VLAN Operation supplicant port to another without clearing the statistics data from the first port, the authenticator’s MAC address will appear in the supplicant statistics for both ports. How RADIUS/802.1X Authentication Affects VLAN Operation Static VLAN Requirement.
  • Page 241 Configuring Port-Based and Client-Based Access Control (802.1X) How RADIUS/802.1X Authentication Affects VLAN Operation For example, suppose that a RADIUS-authenticated, 802.1X-aware client on port A2 requires access to VLAN 22, but VLAN 22 is configured for no access on port A2, and VLAN 33 is configured as untagged on port A2: Scenario: An authorized 802.1X client requires access...
  • Page 242 Configuring Port-Based and Client-Based Access Control (802.1X) How RADIUS/802.1X Authentication Affects VLAN Operation This entry shows that port A2 is temporarily untagged on VLAN 22 for an 802.1X session. This is to accommodate an 802.1X client’s access, authenticated by a RADIUS server, where the server included an instruction to put the client’s access on VLAN 22.
  • Page 243 Configuring Port-Based and Client-Based Access Control (802.1X) How RADIUS/802.1X Authentication Affects VLAN Operation When the 802.1X client’s session on port A2 ends, the port discards the temporary untagged VLAN membership. At this time the static VLAN actually configured as untagged on the port again becomes available. Thus, when the RADIUS-authenticated 802.1X session on port A2 ends, VLAN 22 access on port A2 also ends, and the untagged VLAN 33 access on port A2 is restored.

  • Page 244: Messages Related To 802.1X Operation

    Configuring Port-Based and Client-Based Access Control (802.1X) Messages Related to 802.1X Operation Messages Related to 802.1X Operation Table 8-4. 802.1X Operating Messages Message Meaning The ports in the port list have not been enabled as 802.1X Port < port-list > is not an authenticators.

  • Page 245: Configuring And Monitoring Port Security

    Configuring and Monitoring Port Security Contents Overview ............9-2 Basic Operation .

  • Page 246: Overview

    Configuring and Monitoring Port Security Overview Overview Feature Default Menu Displaying Current Port Security n/a — page 9-10 page 9-27 Configuring Port Security disabled — page 9-12 page 9-27 Intrusion Alerts and Alert Flags page 9-35 page 9-33 page 9-36 Using Port Security, you can configure each switch port with a unique list of the MAC addresses of devices that are authorized to access the network through that port.

  • Page 247: Blocking Unauthorized Traffic

    Configuring and Monitoring Port Security Overview General Operation for Port Security. On a per-port basis, you can configure security measures to block unauthorized devices, and to send notice of security violations. Once you have configured port security, you can then monitor the network for security violations through one or more of the following: Alert flags that are captured by network management tools...

  • Page 248: Trunk Group Exclusion

    Configuring and Monitoring Port Security Overview Physical Topology Logical Topology for Access to Switch A Switch A Switch A Port Security Port Security Configured Configured PC 1 PC 1 MAC Address Authorized MAC Address Authorized by Switch A by Switch A Switch B Switch B PC 2...

  • Page 249: Planning Port Security

    Configuring and Monitoring Port Security Planning Port Security Planning Port Security Plan your port security configuration and monitoring according to the following: On which ports do you want port security? b. Which devices (MAC addresses) are authorized on each port and how many devices do you want to allow per port (up to 8)? Within the devices-per-port limit, do you want to let the switch automatically accept devices it detects on a port, or do you want it...

  • Page 250: Port Security Command Options And Operation

    Configuring and Monitoring Port Security Port Security Command Options and Operation Port Security Command Options and Operation Port Security Commands Used in This Section show port-security 9-11 port-security 9-12 < [ethernet] port-list > 9-12 [learn-mode] 9-12 [address-limit] 9-12 [mac-address] 9-12 [action] 9-12 [clear-intrusion-flag]...
  • Page 251 Configuring and Monitoring Port Security Port Security Command Options and Operation Syntax: port-security [e] < port-list > learn-mode < continuous | static | configured | port-access > Continuous (Default): Appears in the factory-default setting or when you execute no port-security. Allows the port to learn addresses from inbound traffic from any device(s) to which it is connected.
  • Page 252 Configuring and Monitoring Port Security Port Security Command Options and Operation Syntax: port-security [e] < port-list > (- Continued -) learn-mode < continuous | static | configured | port-access > Configured: The static-configured option operates the same as the static-learn option on the preceding page, except that it does not allow the switch to accept non-specified addresses to reach the address limit.
  • Page 253 Configuring and Monitoring Port Security Port Security Command Options and Operation Syntax: port-security [e] < port-list > (- Continued -) action < none | send-alarm | send-disable > Specifies whether an SNMP trap is sent to a network man- agement station. Operates when: •...

  • Page 254: Retention Of Static Mac Addresses

    Configuring and Monitoring Port Security Port Security Command Options and Operation Retention of Static MAC Addresses Learned MAC Addresses In the following two cases, a port in Static learn mode (learn-mode static) retains a learned MAC address even if you later reboot the switch or disable port security for that port: The port learns a MAC address after you configure the port with learn- ■...
  • Page 255 Configuring and Monitoring Port Security Port Security Command Options and Operation Using the CLI To Display Port Security Settings. Syntax: show port-security show port-security [e] <port number> show port-security [e] [<port number>-<port number]. . .[,<port number>] Without port parameters, show port-security displays operating control settings for all ports on a switch.

  • Page 256: Configuring Port Security

    Configuring and Monitoring Port Security Port Security Command Options and Operation The following command example shows the option for entering a range of ports, including a series of non-contiguous ports. Note that no spaces are allowed in the port number portion of the command string: ProCurve(config)# show port-security A1-A3,A6,A8 Configuring Port Security Using the CLI, you can:...
  • Page 257 Configuring and Monitoring Port Security Port Security Command Options and Operation ProCurve(config)# port-security a1 learn-mode static mac-address 0c0090-123456 action send-disable This example configures port A5 to: Allow two MAC addresses, 00c100-7fec00 and 0060b0-889e00, as the ■ authorized devices. ■ Send an alarm to a management station if an intruder is detected on the port.
  • Page 258 Configuring and Monitoring Port Security Port Security Command Options and Operation mined by the current address-limit value). For example, suppose port A1 allows two authorized devices, but has only one device in its Authorized Address list: Although the Address Limit is set to 2, only one device has been authorized for this port.
  • Page 259 Configuring and Monitoring Port Security Port Security Command Options and Operation attempt to convert the port back to static mode with the same authorized address(es), the Inconsistent value message appears because the port already has the address(es) in its “Authorized” list. If you are adding a device (MAC address) to a port on which the Authorized Addresses list is already full (as controlled by the port’s current Address Limit setting), then you must increase the Address Limit in order to add the device,...
  • Page 260 Configuring and Monitoring Port Security Port Security Command Options and Operation accepted as “authorized” for that port. (You can prevent the port from learning unauthorized MAC addresses by using the learn-mode configured option instead of the learn-mode static option. Refer to the Note on page 9-6.) To remove a device (MAC address) from the “Authorized”...

  • Page 261: Mac Lockdown

    Configuring and Monitoring Port Security MAC Lockdown ProCurve(config)# show port-security 1 Port Security Port : 1 Learn Mode : Static Address Limit : 1 Action: None Authorized Addresses -------------------- 0c0090-456456 Figure 9-8. Example of Port A1 After Removing One MAC Address MAC Lockdown MAC Lockdown, also known as “static addressing,”...
  • Page 262 Configuring and Monitoring Port Security MAC Lockdown How It Works. When a device’s MAC address is locked down to a port (typically in a pair with a VLAN) all information sent to that MAC address must go through the locked-down port. If the device is moved to another port it cannot receive data.

  • Page 263: Differences Between Mac Lockdown And Port Security

    Configuring and Monitoring Port Security MAC Lockdown You cannot perform MAC Lockdown and 802.1X authentication on the same port or on the same MAC address. MAC Lockdown and 802.1X authentication are mutually exclusive. Lockdown is permitted on static trunks (manually configured link aggrega- tions).
  • Page 264 Configuring and Monitoring Port Security MAC Lockdown MAC Lockdown Operating Notes Limits. There is a limit of 500 MAC Lockdowns that you can safely code per switch. To truly lock down a MAC address it would be necessary to use the MAC Lockdown command for every MAC Address and VLAN ID on every switch.

  • Page 265: Deploying Mac Lockdown

    Configuring and Monitoring Port Security MAC Lockdown Deploying MAC Lockdown When you deploy MAC Lockdown you need to consider how you use it within your network topology to ensure security. In some cases where you are using techniques such as Spanning Tree Protocol (STP) to speed up network performance by providing multiple paths for devices, using MAC Lockdown either will not work or else it defeats the purpose of having multiple data paths.
  • Page 266 Configuring and Monitoring Port Security MAC Lockdown Internal Server “A” Core 3400cl or 3400cl or 5300xl Switch 5300xl Switch Network There is no need to lock MAC addresses on switches in the internal core network. 3400cl or 3400cl or 5300xl Switch 5300xl Switch Network Edge Lock Server “A”...
  • Page 267 Configuring and Monitoring Port Security MAC Lockdown The key points for this Model Topology are: • The Core Network is separated from the edge by the use of switches which have been “locked down” for security. • All switches connected to the edge (outside users) each have only one port they can use to connect to the Core Network and then to Server A.
  • Page 268 Configuring and Monitoring Port Security MAC Lockdown Internal Network PROBLEM: If this link fails, Server A traffic to Server A will not use the backup path via Switch 3 Switch 3 Switch 4 Server A is locked down to Switch 1, Uplink 2 Switch 2 Switch 1 External...

  • Page 269: Mac Lockout

    Configuring and Monitoring Port Security MAC Lockout Displaying status. Locked down ports are listed in the output of the show running-config command in the CLI. The show static-mac command also lists the locked down MAC addresses, as shown below. ProCurve(config)# show static-mac VLAN MAC Address Port 1 001083-34f8fa 9...
  • Page 270 Configuring and Monitoring Port Security MAC Lockout How It Works. Let’s say a customer knows there are unauthorized wireless clients who should not have access to the network. The network administrator “locks out” the MAC addresses for the wireless clients by using the MAC Lockout command (lockout-mac <mac-address>).

  • Page 271: Port Security And Mac Lockout

    Configuring and Monitoring Port Security Web: Displaying and Configuring Port Security Features ProCurve(config)# show lockout-mac Locked Out Addresses 007347-a8fd30 Number of locked out MAC addresses = 1 ProCurve(config)# Figure 9-12. Listing Locked Out Ports Port Security and MAC Lockout MAC Lockout is independent of port-security and in fact will override it. MAC Lockout is preferable to port-security to stop access from known devices because it can be configured for all ports on the switch with one command.

  • Page 272: Reading Intrusion Alerts And Resetting Alert Flags

    Configuring and Monitoring Port Security Reading Intrusion Alerts and Resetting Alert Flags Implement your new data by clicking on [Apply Changes]. To access the web-based Help provided for the switch, click on in the web browser screen. Reading Intrusion Alerts and Resetting Alert Flags Notice of Security Violations When the switch detects an intrusion on a port, it sets an “alert flag”...

  • Page 273: How The Intrusion Log Operates

    Configuring and Monitoring Port Security Reading Intrusion Alerts and Resetting Alert Flags • In an active network management environment via an SNMP trap sent to a network management station How the Intrusion Log Operates When the switch detects an intrusion attempt on a port, it enters a record of this event in the Intrusion Log.
  • Page 274 Configuring and Monitoring Port Security Reading Intrusion Alerts and Resetting Alert Flags N o t e o n On a given port, if the intrusion action is to send an SNMP trap and then disable S e n d - D i s a b l e the port (send-disable), and then an intruder is detected on the port, the switch O p e r a t i o n sends an SNMP trap, sets the port’s alert flag, and disables the port.
  • Page 275 Configuring and Monitoring Port Security Reading Intrusion Alerts and Resetting Alert Flags Type ) to display the Intrusion Log. Intrusion log MAC Address of System Time of Intrusion on Port A3 Intruding Device on Port A3 Indicates this intrusion on port A3 occurred prior to a reset (reboot) at the indicated time and date.
  • Page 276 Configuring and Monitoring Port Security Reading Intrusion Alerts and Resetting Alert Flags provides a history of the last 20 intrusions detected by the switch, resetting the alert flags does not change its content. Thus, displaying the Intrusion Log again will result in the same display as in figure 9-15, above.) 9-32...
  • Page 277 Configuring and Monitoring Port Security Reading Intrusion Alerts and Resetting Alert Flags CLI: Checking for Intrusions, Listing Intrusion Alerts, and Resetting Alert Flags The following commands display port status, including whether there are intrusion alerts for any port(s), list the last 20 intrusions, and either reset the alert flag on all ports or for a specific port for which an intrusion was detected.
  • Page 278 Configuring and Monitoring Port Security Reading Intrusion Alerts and Resetting Alert Flags Dates and Times of MAC Address of latest Intrusions Intruder on Port A1 Earlier intrusions on port A1 that have already been cleared (that is, the Alert Flag has been reset at least twice before the most recent intrusion occurred.

  • Page 279: Using The Event Log To Find Intrusion Alerts

    Configuring and Monitoring Port Security Reading Intrusion Alerts and Resetting Alert Flags Using the Event Log To Find Intrusion Alerts The Event Log lists port security intrusions as: W MM/DD/YY HH:MM:SS FFI: port A3 - Security Violation where “ ” is the severity level of the log entry and is the system module that generated the entry.

  • Page 280: Web: Checking For Intrusions, Listing Intrusion Alerts, And Resetting Alert Flags

    Configuring and Monitoring Port Security Operating Notes for Port Security Web: Checking for Intrusions, Listing Intrusion Alerts, and Resetting Alert Flags Check the Alert Log by clicking on the Status tab and the Overview] button. If there is a “Security Violation” entry, do the following: Click on the Security tab.
  • Page 281 Configuring and Monitoring Port Security Operating Notes for Port Security the alert flag status for the port referenced in the dropped entry. This means that, even if an entry is forced off of the Intrusion Log, no new intrusions can be logged on the port referenced in that entry until you reset the alert flags.

  • Page 282: Configuring Protected Ports

    Configuring and Monitoring Port Security Configuring Protected Ports Configuring Protected Ports There are situations where you want to provide internet access to users but prevent them from accessing each other. To achieve this control, you can use the protected-ports command.The command applies per-port, and filters the outbound traffic from a port.
  • Page 283 Configuring and Monitoring Port Security Configuring Protected Ports To display information about which ports have been configured as protected ports, enter this command: ProCurve(config)# show protected-ports ProCurve(config)# show protected-ports Protected-ports : 7-8 Unprotected-ports: 1-6,9-48 Figure 9-21. Example Showing Protected Ports and Unprotected Ports If you display the running config file (show running-config) you will see the ports that have been selected as protected ports are designated as “filter source port 7"...
  • Page 284 Configuring and Monitoring Port Security Configuring Protected Ports ProCurve(config)# filter source-port 5 drop 6 ProCurve(config)# show protected-ports Protected-ports: The current Filter Configuration cannot be translated into protected ports. Use the show filter command directly. Figure 9-23. Example of Show Protected-ports Command with Filter Source-Port ProCurve(config)# protected-ports 5-6 The current filter configuration cannot be translated into protected ports.

  • Page 285: Traffic/Security Filters

    Traffic/Security Filters Contents Overview ........... . . 10-2 Using Source-Port Filters .

  • Page 286: Overview

    Traffic/Security Filters Overview Overview General Operation. You can enhance in-band security and improve control over access to network resources by configuring static per-port filters to forward (the default action) or drop unwanted traffic. That is, you can config- ure a traffic filter to either forward or drop all network traffic moving between an inbound (source) port or trunk and any outbound (destination) ports and trunks (if any) on the switch.

  • Page 287: Using Source-Port Filters

    Traffic/Security Filters Using Source-Port Filters This list shows the filter created to block (drop) traffic from source port 5 (workstation "X") to destination port 7 (server "A"). Notice that the filter allows traffic to move from source port 5 to all other destination ports. Figure 10-2.

  • Page 288: Configuring A Source-Port Filter

    Traffic/Security Filters Using Source-Port Filters Configuring a Source-Port Filter The source-port filter command operates from the global configuration level. Syntax: [no] filter source-port [e] < source-port-number > [ drop | forward ] Creates or deletes the source port filter assigned to <...
  • Page 289 Traffic/Security Filters Using Source-Port Filters is already configured in the filter and can remain as-is.)With one command you can restore forwarding to ports 10 and 11 while adding ports 16 and 17 to the "drop" list: ProCurve(config)# filter source-port 5 forward 10-11 drop 16-17 Configuring a Filter on a Port Trunk.
  • Page 290 Traffic/Security Filters Using Source-Port Filters filter on port 5, then create a trunk with ports 5 and 6, and display the results, you would see the following: The *5* shows that port 5 is configured for filtering, but the filtering action has been suspended while the port is a member of a trunk.

  • Page 291: Viewing A Source-Port Filter

    Traffic/Security Filters Using Source-Port Filters Viewing a Source-Port Filter You can list all source-port filters configured in the switch and, optionally, the detailed information on a specific filter. Syntax: show filter [index] Displays a listing of configured filters, where each filter entry includes an IDX (index) number, Filter Type, and Value : IDX: An automatically assigned index number used to...

  • Page 292: Filter Indexing

    Traffic/Security Filters Using Source-Port Filters If you wanted to determine the index number for the filter on source port 3 and then view a listing the filter details on source port 3, you would use the show filter and show filter [ index ] commands, as shown in figure 10-4. The show filter command lists the index number for source-port 3.

  • Page 293: Editing A Source-Port Filter

    Traffic/Security Filters Using Source-Port Filters Editing a Source-Port Filter The switch includes in one filter the action(s) for all destination ports and/or trunks configured for a given source port. Thus, if a source-port filter already exists and you want to change the currently configured action for some destination ports or trunks, use the filter source-port command to update the existing filter.
  • Page 294 Traffic/Security Filters Using Source-Port Filters Operating Rules for Named Source-Port Filters A port or port trunk may only have one source-port filter, named or ■ not named. A named source-port filter can be applied to multiple ports or port ■ trunks.
  • Page 295 Traffic/Security Filters Using Source-Port Filters Syntax: filter source-port named-filter <filter-name > drop < destination-port-list > Configures the named source-port filter to drop traffic having a destination on the ports and/or port trunks in the < destination-port-list >. Can be followed by the forward option if you have other destination ports or port trunks previously set to drop that you want to change to forward.
  • Page 296 Traffic/Security Filters Using Source-Port Filters Viewing a Named Source-Port Filter You can list all source-port filters configured in the switch, both named and unnamed, and their action using the show command below. Syntax: show filter source-port Displays a listing of configured source-port filters, where each filter entry includes a Filter Name, Port List, and Action: Filter Name: The filter-name used when a named...
  • Page 297 Traffic/Security Filters Using Source-Port Filters Network Design 1. Accounting Workstations may only send traffic to the Accounting Server. 2. No Internet traffic may be sent to the Accounting Server or Workstations. 3 All other switch ports may only send traffic to Port 1. Router to the Port 1 Internet...
  • Page 298 Traffic/Security Filters Using Source-Port Filters ProCurve(config)# filter source-port named-filter web-only drop 2-26 ProCurve(config)# filter source-port named-filter accounting drop 1-6,8,9,12-26 ProCurveconfig)# filter source-port named-filter no-incoming-web drop 7,10,11 ProCurve(config)# Ports and port trunks using the ProCurve(config)# show filter source-port filter. When NOT USED is displayed the named source-port filter may be deleted.
  • Page 299 Traffic/Security Filters Using Source-Port Filters The show filter command shows what ports have filters applied. ProCurve(config)# show filter Traffic/Security Filters Indicates the port number or port- trunk name of the source port or trunk IDX Filter Type | Value assigned to the filter. --- ------------ + ------------------- Source Port Source Port...
  • Page 300 Traffic/Security Filters Using Source-Port Filters Using the IDX value in the show filter command, we can see how traffic is filtered on a specific port (Value).The two outputs below show a non- accounting and an accounting switch port. ProCurve(config)# show filter 4 ProCurve(config)# show filter 24 Traffic/Security Filters Traffic/Security Filters...
  • Page 301 Traffic/Security Filters Using Source-Port Filters The same command, using IDX 26, shows how traffic from the Internet is handled. ProCurve(config)# show filter 26 Traffic/Security Filters Filter Type : Source Port Source Port : 1 Dest Port Type | Action --------- --------- + ------- 100/1000T | Forward 100/1000T | Forward 100/1000T | Forward...
  • Page 302 Traffic/Security Filters Using Source-Port Filters ProCurve(config)# filter source-port named-filter accounting forward 8,12,13 ProCurve(config)# filter source-port named-filter no-incoming-web drop 8,12,13 ProCurve(config)# ProCurve(config)# show filter source-port Traffic/Security Filters Filter Name | Port List | Action -------------------- + -------------------- + -------------------------- web-only | 2-6,8-9,12-26 | drop 2-26 accounting | 7,10-11...
  • Page 303 Using Authorized IP Managers Contents Overview ........... . . 11-2 Configuration Options .

  • Page 304: Using Authorized Ip Managers

    Using Authorized IP Managers Overview Overview Authorized IP Manager Features Feature Default Menu Listing (Showing) Authorized page 11-5 page 11-6 page 11-9 Managers Configuring Authorized IP None page 11-5 page 11-6 page 11-9 Managers Building IP Masks page 11-9 page 11-9 page 11-9 Operating and Troubleshooting page 11-12 page 11-12 page 11-12...

  • Page 305: Configuration Options

    Using Authorized IP Managers Access Levels Configuration Options You can configure: Up to 10 authorized manager addresses, where each address applies ■ to either a single management station or a group of stations ■ Manager or Operator access privileges (for Telnet, SNMPv1, and SNMPv2c access only) C a u t i o n Configuring Authorized IP Managers does not protect access to the switch...

  • Page 306: Defining Authorized Management Stations

    Using Authorized IP Managers Defining Authorized Management Stations Operator: Allows read-only access from the web browser and ■ console interfaces. (This is the same access that is allowed by the switch’s operator-level password feature.) Defining Authorized Management Stations Authorizing Single Stations: The table entry authorizes a single ■...

  • Page 307: Menu: Viewing And Configuring Ip Authorized Managers

    Using Authorized IP Managers Defining Authorized Management Stations For example, a mask of 255.255.255.0 and any value for the Authorized Manager IP parameter allows a range of 0 through 255 in the 4th octet of the authorized IP address, which enables a block of up to 254 IP addresses for IP management access (excluding 0 for the network and 255 for broadcasts).

  • Page 308: Cli: Viewing And Configuring Authorized Ip Managers

    Using Authorized IP Managers Defining Authorized Management Stations 2. Enter an Authorized Manager IP address here. 3. Use the default mask to allow access by one management device, or edit the mask to allow access by a block of management devices. See “Building IP Masks”...

  • Page 309: Configuring Ip Authorized Managers For The Switch

    Using Authorized IP Managers Defining Authorized Management Stations Figure 11-3. Example of the Show IP Authorized-Manager Display The above example shows an Authorized IP Manager List that allows stations to access the switch as shown below: IP Mask Authorized Station IP Address: Access Mode: 255.255.255.252 10.28.227.100 through 103...
  • Page 310 Using Authorized IP Managers Defining Authorized Management Stations Similarly, the next command authorizes manager-level access for any station having an IP address of 10.28.227.101 through 103: ProCurve(config)# ip authorized-managers 10.28.227.101 255.255.255.252 access manager If you omit the <mask bits> when adding a new authorized manager, the switch automatically uses 255.255.255.255 for the mask.

  • Page 311: Web: Configuring Ip Authorized Managers

    Using Authorized IP Managers Web: Configuring IP Authorized Managers Web: Configuring IP Authorized Managers In the web browser interface you can configure IP Authorized Managers as described below. To Add, Modify, or Delete an IP Authorized Manager address: Click on the Security tab. Click on [Authorized Addresses].

  • Page 312: Configuring Multiple Stations Per Authorized Manager Ip Entry

    Using Authorized IP Managers Building IP Masks Table 11-1. Analysis of IP Mask for Single-Station Entries Manager-Level or Operator-Level Device Access Octet Octet Octet Octet IP Mask The “255” in each octet of the mask specifies that only the exact value in that octet of the corresponding IP address is allowed.
  • Page 313 Using Authorized IP Managers Building IP Masks Manager-Level or Operator-Level Device Access Octet Octet Octet Octet IP Mask In this example (figure 11-5, below), the IP mask allows a group of up to 4 management stations to access the switch. This is useful if the only Authorized devices in the IP address group allowed by the mask are management IP Address...

  • Page 314: Additional Examples For Authorizing Multiple Stations

    Using Authorized IP Managers Operating Notes Additional Examples for Authorizing Multiple Stations Entries for Authorized Results Manager List IP Mask 255 255 0 This combination specifies an authorized IP address of 10.33.xxx.1. It could be applied, for example, to a subnetted network where each subnet is defined by the Authorized 248 1 third octet and includes a management station defined by the value of “1”...
  • Page 315 Using Authorized IP Managers Operating Notes • Even if you need proxy server access enabled in order to use other applications, you can still eliminate proxy service for web access to the switch. To do so, add the IP address or DNS name of the switch to the non-proxy, or “Exceptions”...
  • Page 316 Using Authorized IP Managers Operating Notes 11-14...

  • Page 317: Index
