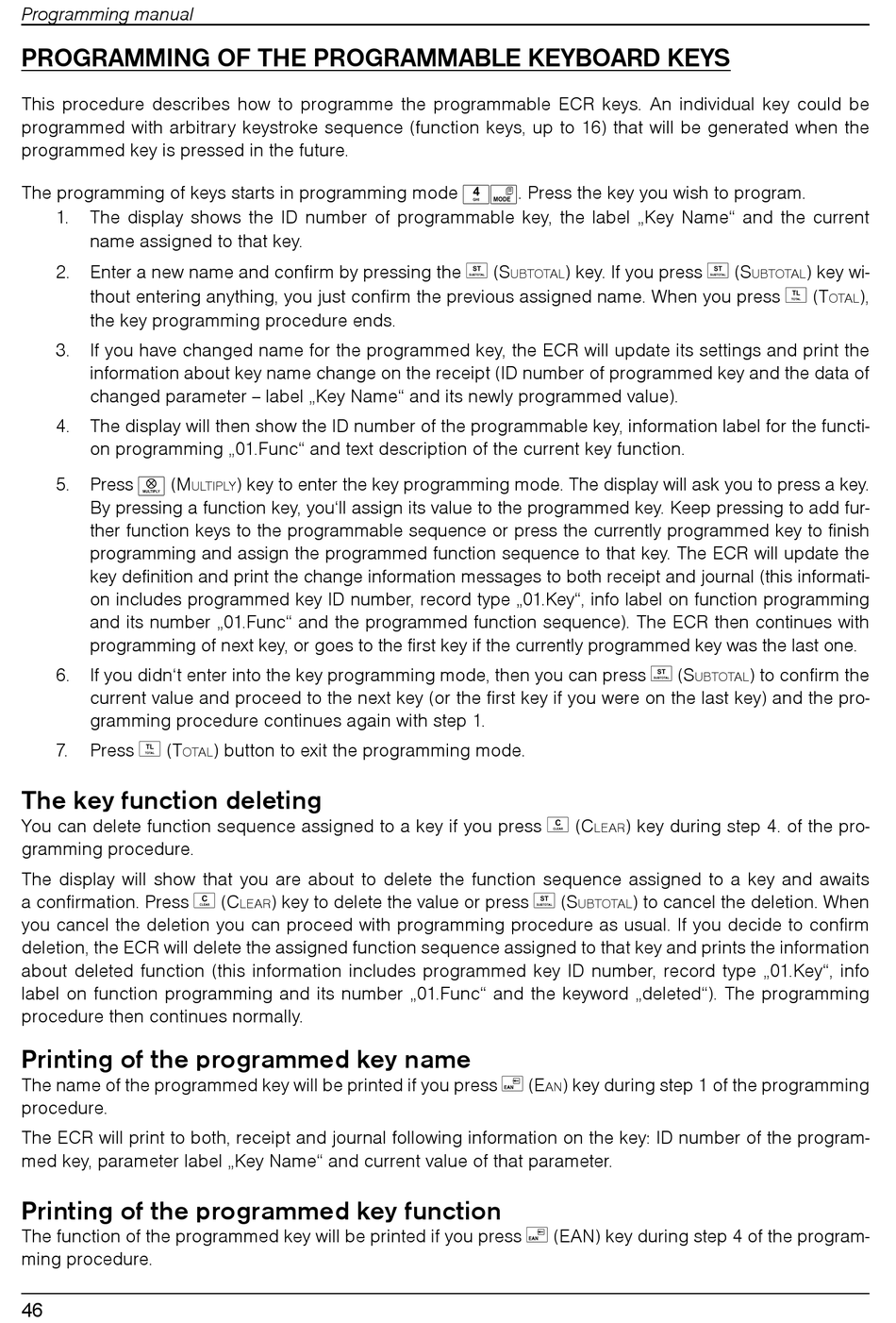

PROGRAMMING OF THE PROGRAMMABLE KEYBOARD KEYS

This procedure describes how to programme the programmable ECR keys. An individual key could be
programmed with arbitrary keystroke sequence (function keys, up to 16) that will be generated when the
programmed key is pressed in the future.
The programming of keys starts in programming mode
1. The display shows the ID number of programmable key, the label „Key Name" and the current
name assigned to that key.
2. Enter a new name and confirm by pressing the  (S
thout entering anything, you just confirm the previous assigned name. When you press  (T
the key programming procedure ends.
3. If you have changed name for the programmed key, the ECR will update its settings and print the
information about key name change on the receipt (ID number of programmed key and the data of
changed parameter -- label „Key Name" and its newly programmed value).
4. The display will then show the ID number of the programmable key, information label for the functi-
on programming „01.Func" and text description of the current key function.
5. Press (M

By pressing a function key, you'll assign its value to the programmed key. Keep pressing to add fur-
ther function keys to the programmable sequence or press the currently programmed key to finish
programming and assign the programmed function sequence to that key. The ECR will update the
key definition and print the change information messages to both receipt and journal (this informati-
on includes programmed key ID number, record type „01.Key", info label on function programming
and its number „01.Func" and the programmed function sequence). The ECR then continues with
programming of next key, or goes to the first key if the currently programmed key was the last one.
6. If you didn't enter into the key programming mode, then you can press  (S
current value and proceed to the next key (or the first key if you were on the last key) and the pro-
gramming procedure continues again with step 1.
7. Press  (T
OTAL

The key function deleting

You can delete function sequence assigned to a key if you press  (C
gramming procedure.
The display will show that you are about to delete the function sequence assigned to a key and awaits
a confirmation. Press  (C
you cancel the deletion you can proceed with programming procedure as usual. If you decide to confirm
deletion, the ECR will delete the assigned function sequence assigned to that key and prints the information
about deleted function (this information includes programmed key ID number, record type „01.Key", info
label on function programming and its number „01.Func" and the keyword „deleted"). The programming
procedure then continues normally.

Printing of the programmed key name

The name of the programmed key will be printed if you press  (E
procedure.
The ECR will print to both, receipt and journal following information on the key: ID number of the program-
med key, parameter label „Key Name" and current value of that parameter.

Printing of the programmed key function

The function of the programmed key will be printed if you press  (EAN) key during step 4 of the program-
ming procedure.
