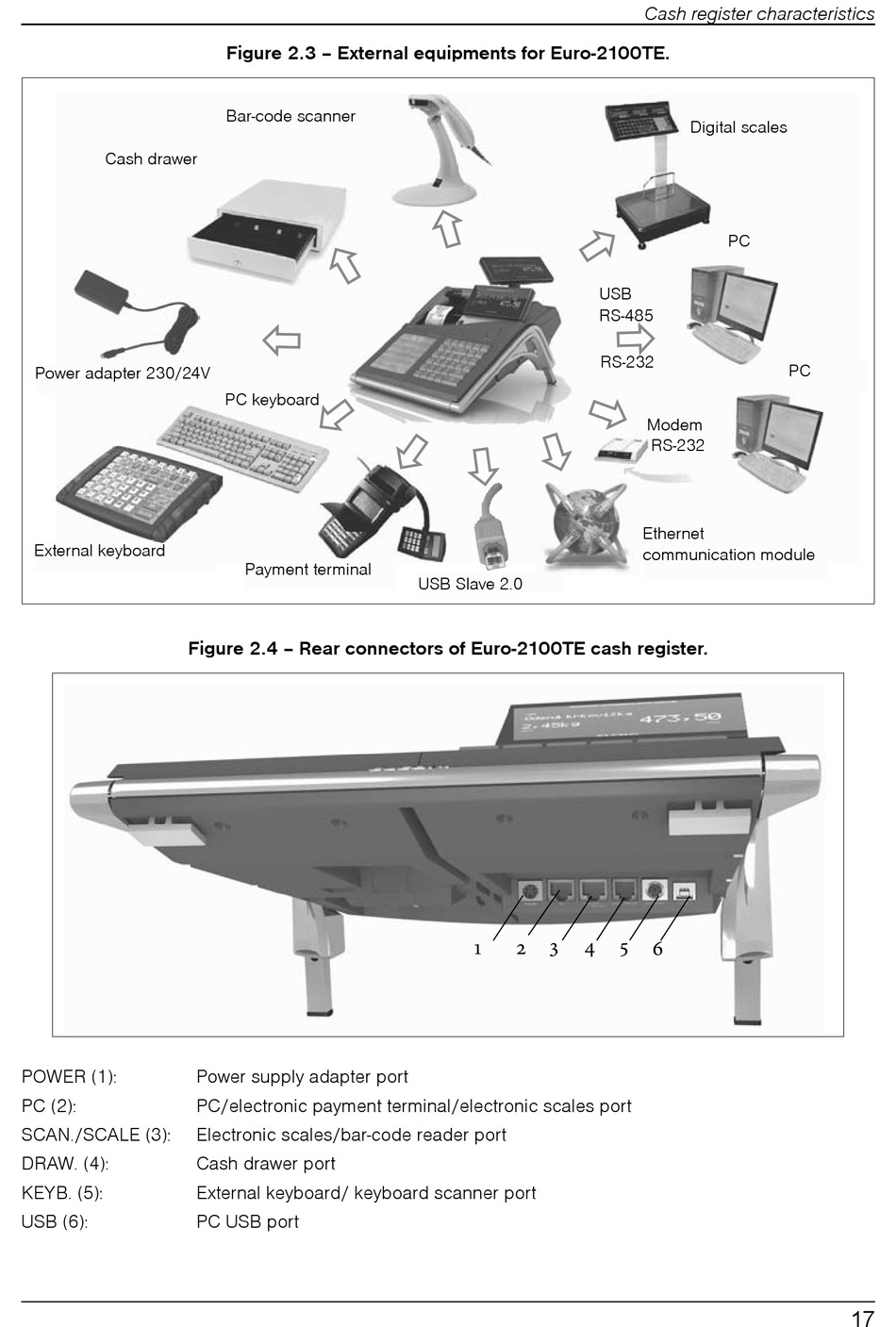

ELCOM Euro-2100TE User Manual page 17

Cash drawer
Power adapter 230/24V
External keyboard
Figure 2.4 – Rear connectors of Euro-2100TE cash register.
POWER (1):
PC (2):
SCAN./SCALE (3):
DRAW. (4):
KEYB. (5):
USB (6):
Figure 2.3 – External equipments for Euro-2100TE.
Bar-code scanner
PC keyboard
Payment terminal
Power supply adapter port
PC/electronic payment terminal/electronic scales port
Electronic scales/bar-code reader port
Cash drawer port
External keyboard/ keyboard scanner port
PC USB port
USB Slave 2.0
3 4
 2
Cash register characteristics
Digital scales
PC
USB
RS-485
RS-232
Modem
RS-232
Ethernet
communication module
5
6
PC
PC
