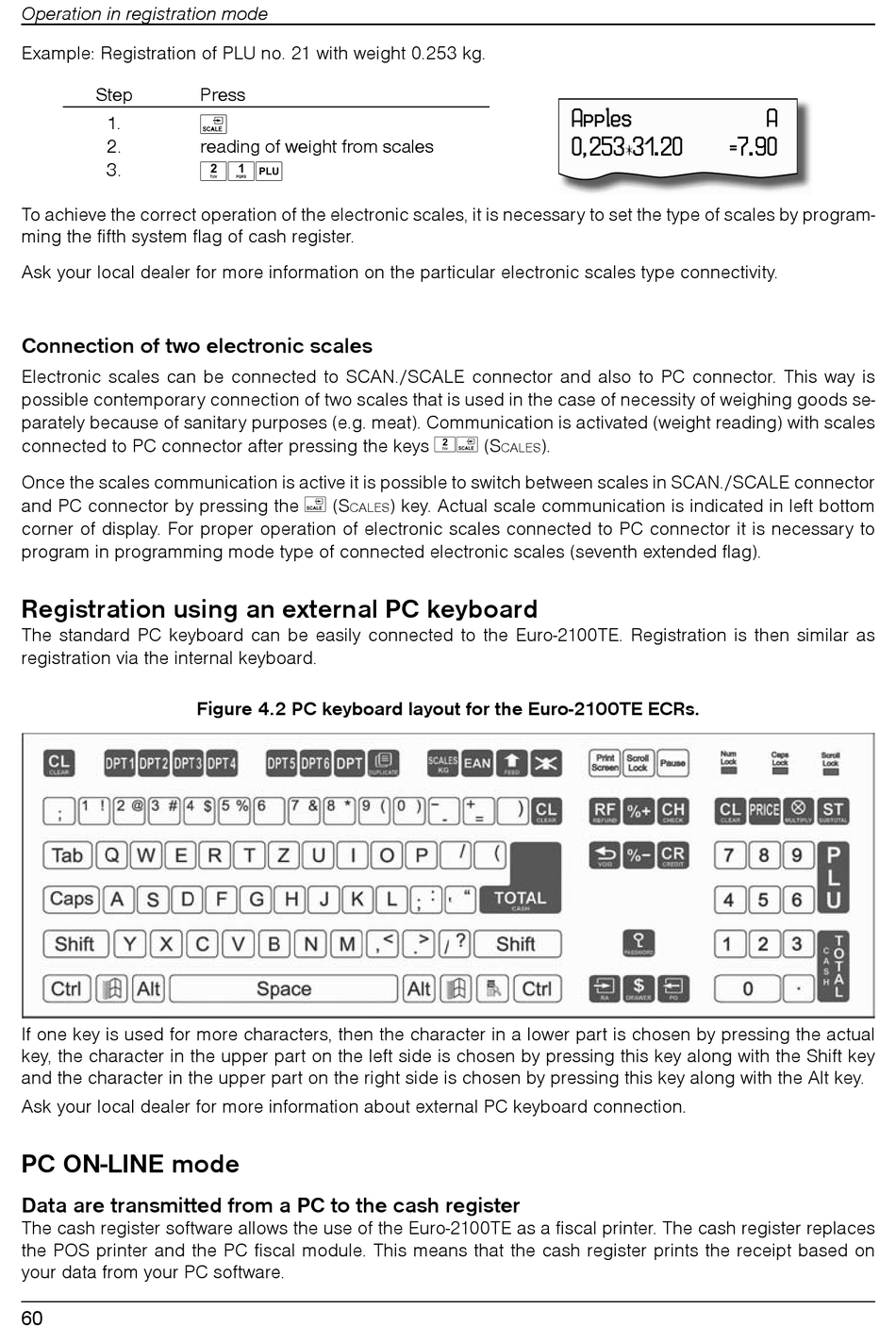

Operation in registration mode
Example: Registration of PLU no. 21 with weight 0.253 kg.
Step
1.
2.
3.
To achieve the correct operation of the electronic scales, it is necessary to set the type of scales by program-
ming the fifth system flag of cash register.
Ask your local dealer for more information on the particular electronic scales type connectivity.

Connection of two electronic scales

Electronic scales can be connected to SCAN./SCALE connector and also to PC connector. This way is
possible contemporary connection of two scales that is used in the case of necessity of weighing goods se-
parately because of sanitary purposes (e.g. meat). Communication is activated (weight reading) with scales
connected to PC connector after pressing the keys  (S
Once the scales communication is active it is possible to switch between scales in SCAN./SCALE connector
and PC connector by pressing the  (S
corner of display. For proper operation of electronic scales connected to PC connector it is necessary to
program in programming mode type of connected electronic scales (seventh extended flag).

Registration using an external PC keyboard

The standard PC keyboard can be easily connected to the Euro-2100TE. Registration is then similar as
registration via the internal keyboard.
If one key is used for more characters, then the character in a lower part is chosen by pressing the actual
key, the character in the upper part on the left side is chosen by pressing this key along with the Shift key
and the character in the upper part on the right side is chosen by pressing this key along with the Alt key.
Ask your local dealer for more information about external PC keyboard connection.

PC ON-LINE mode

Data are transmitted from a PC to the cash register

The cash register software allows the use of the Euro-2100TE as a fiscal printer. The cash register replaces
the POS printer and the PC fiscal module. This means that the cash register prints the receipt based on
your data from your PC software.
60
Press

reading of weight from scales

CALES
Figure 4.2 PC keyboard layout for the Euro-2100TE ECRs.
).
CALES
) key. Actual scale communication is indicated in left bottom
Apples
0,253*31.20 =7.90
A
