Panel Description - Icom IC-FR5000 Series Sales Handbook

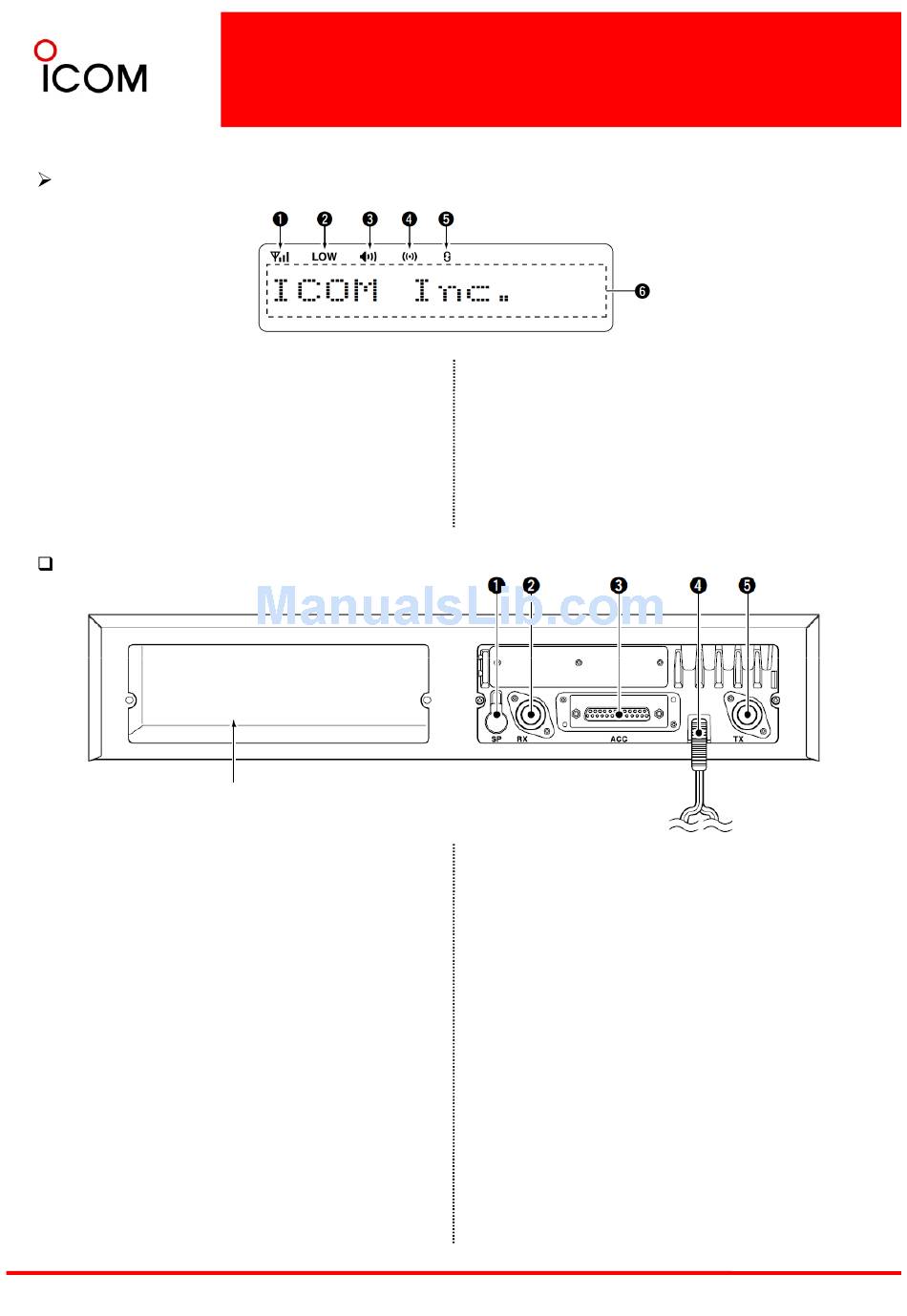

Function display Function display Function display Function display
❶ SIGNAL STRENGTH INDICATOR SIGNAL STRENGTH INDICATOR
SIGNAL STRENGTH INDICATOR SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
❷ LOW POWER INDICATOR LOW POWER INDICATOR LOW POWER INDICATOR LOW POWER INDICATOR
Appears when low output power is selected.
❸ AUDIBLE INDICATOR AUDIBLE INDICATOR AUDIBLE INDICATOR AUDIBLE INDICATOR
Appears when the channel is in the 'audible'
(unmute) condition.
Rear panel Rear panel Rear panel Rear panel
The optional channel extension module can be installed.
Ask your dealer for details.
❶ EXTERNAL SPEAKER CONNECTOR [SP] EXTERNAL SPEAKER CONNECTOR [SP]
EXTERNAL SPEAKER CONNECTOR [SP] EXTERNAL SPEAKER CONNECTOR [SP]
Connect the optional SP-22.
❷ RECEIVE ANTENNA CONNECTOR [RX] RECEIVE ANTENNA CONNECTOR [RX] RECEIVE ANTENNA CONNECTOR [RX] RECEIVE ANTENNA CONNECTOR [RX]
Connects a receive antenna (impedance: 50Ω).
❸ ACCESSORY CONNECTOR [ACC] ACCESSORY CONNECTOR [ACC]
ACCESSORY CONNECTOR [ACC] ACCESSORY CONNECTOR [ACC]
Connects to the accessory connector.
• See pgs. 25 for accessory connector information.

Panel Description

❹ COMPANDER INDICATOR COMPANDER INDICATOR
COMPANDER INDICATOR COMPANDER INDICATOR
Appears when the compander function is activated.
❺ SCRAMBLER/ENCRYPTION INDICATOR SCRAMBLER/ENCRYPTION INDICATOR
SCRAMBLER/ENCRYPTION INDICATOR SCRAMBLER/ENCRYPTION INDICATOR
Appears when the voice scrambler/encryption
function is activated.
❻ ALPHANUMERIC DISPLAY ALPHANUMERIC DISPLAY ALPHANUMERIC DISPLAY ALPHANUMERIC DISPLAY
Shows a variety of text or code information.
❹ DC POWER RECEPTACLE DC POWER RECEPTACLE DC POWER RECEPTACLE DC POWER RECEPTACLE
Connects the supplied DC power cable from this
connector to an external 13.6 V DC power supply.
❺ TRANSMIT ANTENNA CONNECTOR [TX] TRANSMIT ANTENNA CONNECTOR [TX]
TRANSMIT ANTENNA CONNECTOR [TX] TRANSMIT ANTENNA CONNECTOR [TX]
Connects a transmit antenna (impedance: 50 Ω)
and outputs transmit signals.
21
