UR UR- - - - FR5000/UR UR UR FR5000/UR FR5000/UR- - - - FR6000 CHANNEL EXTENSION FR5000/UR FR6000 CHANNEL EXTENSION FR6000 CHANNEL EXTENSION FR6000 CHANNEL EXTENSION
MODULES MODULES MODULES MODULES
SUPPLIED ACCESSORIES SUPPLIED ACCESSORIES SUPPLIED ACCESSORIES SUPPLIED ACCESSORIES
1 DC power cable ....................................................1
2 Control cable ......................................................... 1
3 Angles ................................................................... 2
4 Screws (M4×8 mm) ............................................. 4
5 Set screws (M3×6 mm) ....................................... 4
6 Tapping screws (M3×8 mm) ...............................2
OPENING CASE OPENING CASE OPENING CASE OPENING CASE
OPENING CASE OPENING CASE OPENING CASE OPENING CASE
1 Remove 7 screws from top and 2 screws each from
both sides of the repeater, then slide off the top cover to
the direction of the arrow as illustrated below.
2 Remove 3 screws from bottom and 2 screws each
from both sides of the repeater.
3-1-2

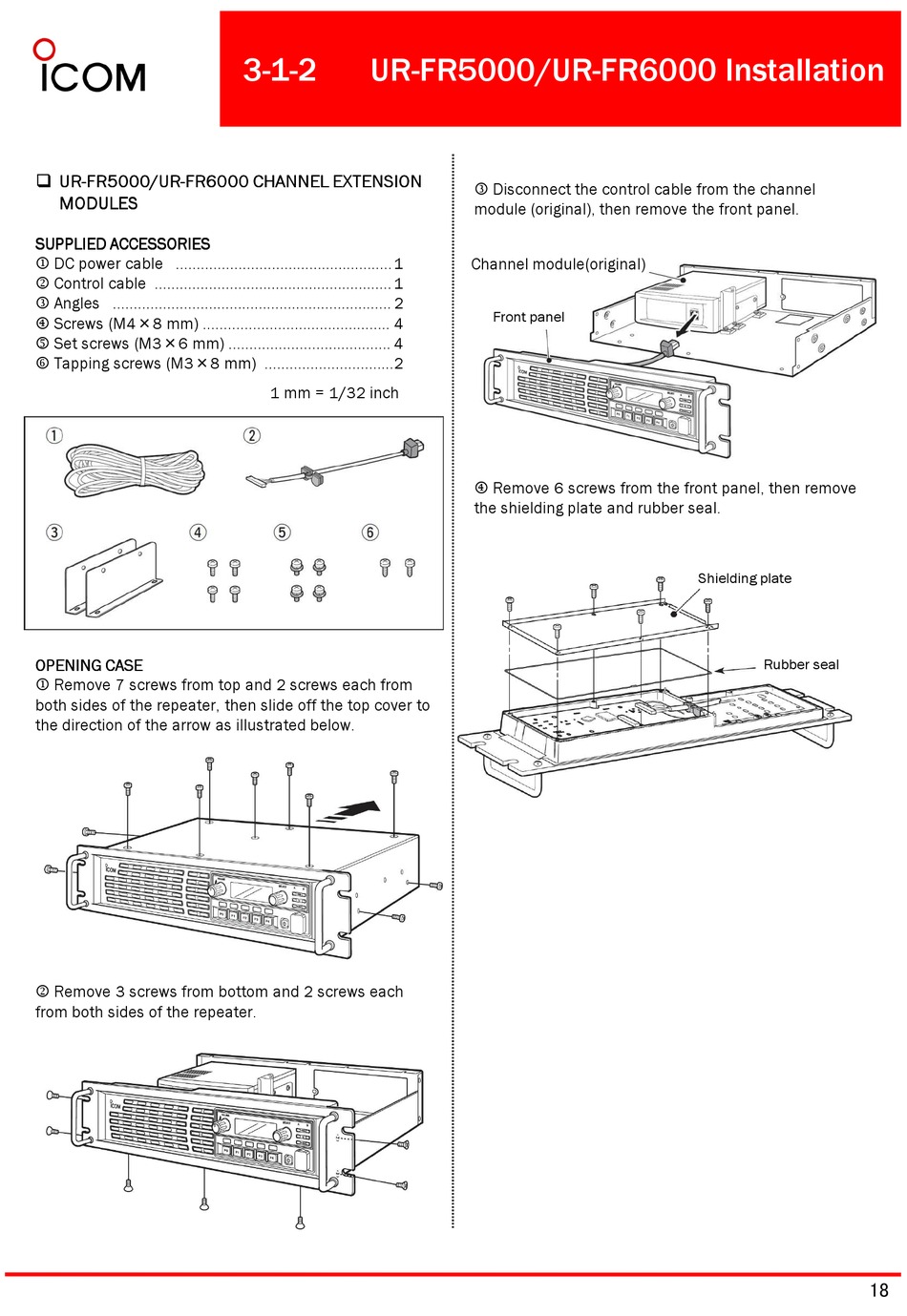

UR-FR5000/UR-FR6000 Installation

1 mm = 1/32 inch
3 Disconnect the control cable from the channel
module (original), then remove the front panel.
Channel module(original)
Front panel
4 Remove 6 screws from the front panel, then remove
the shielding plate and rubber seal.
Shielding plate
Rubber seal Rubber seal
18
