Icom CY-F121S Instruction Manual: Panel Description

Hide thumbs
1

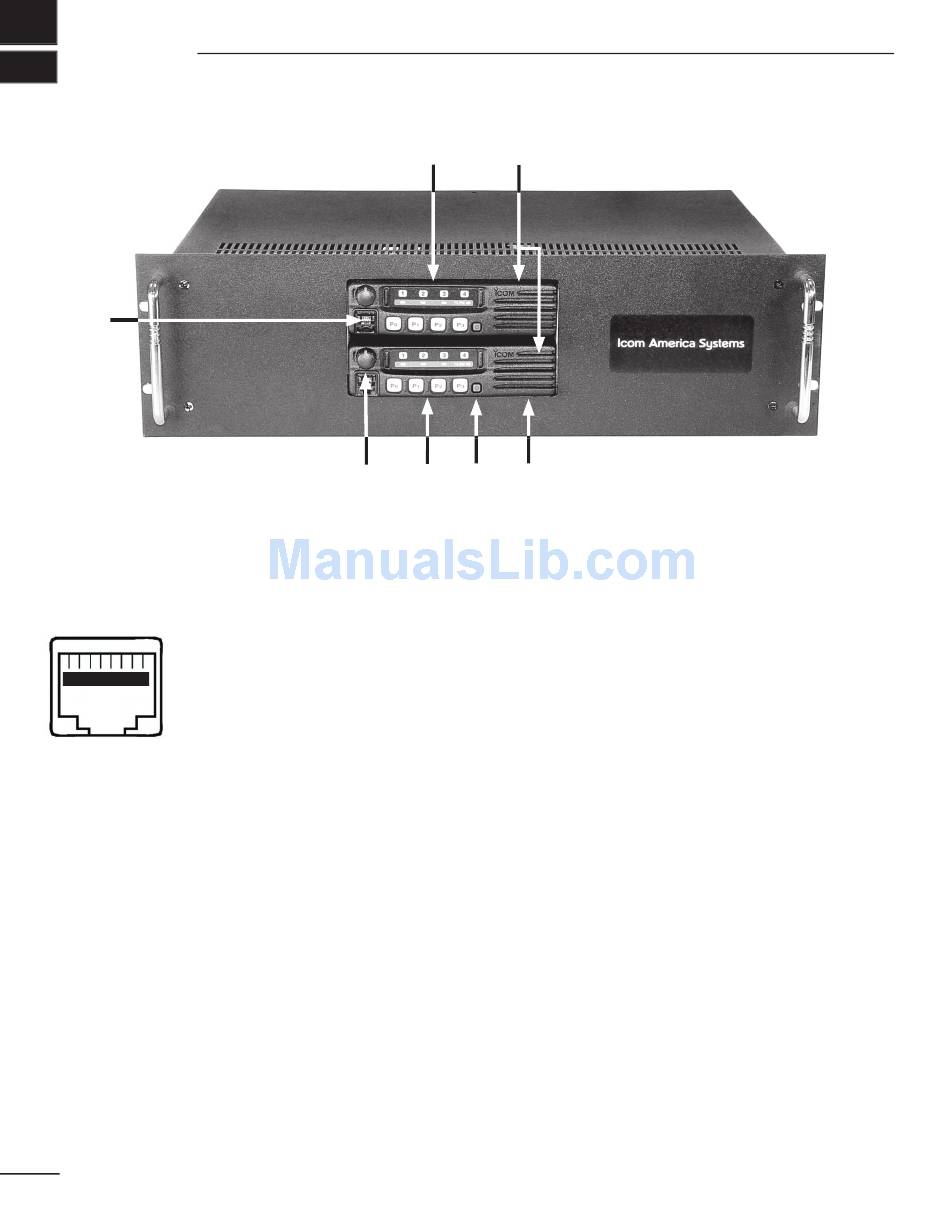

PANEL DESCRIPTION

■ Front Panel
MICROPHONE/SPEAKER CONNECTOR
[MIC/SP]
This 8-pin modular jack accepts the optional
microphone.
➀ +8 V DC output (Max. 10 mA)
➁ CLO (output port for PC
programming)
➀ ➇
➂ AFO
➃ M PTT (Input port for TX control)
➄ Microphone ground
➅ Microphone input
➆ Ground
➇ CLI (Input port for PC program-
ming and monitor control)
1
➏ ➏
➎ ➎
➌ ➍
VOLUME CONTROL [VOLUME]
Adjusts the audio output level.
DEALER PROGRAMMABLE KEYS
P0, P1, P2, P3
POWER SWITCH [POWER]
Push to turn the power ON and OFF.
INTERNAL SPEAKER
Monitors received signals.
TRANSMITTER UNIT
RECEIVER UNIT
