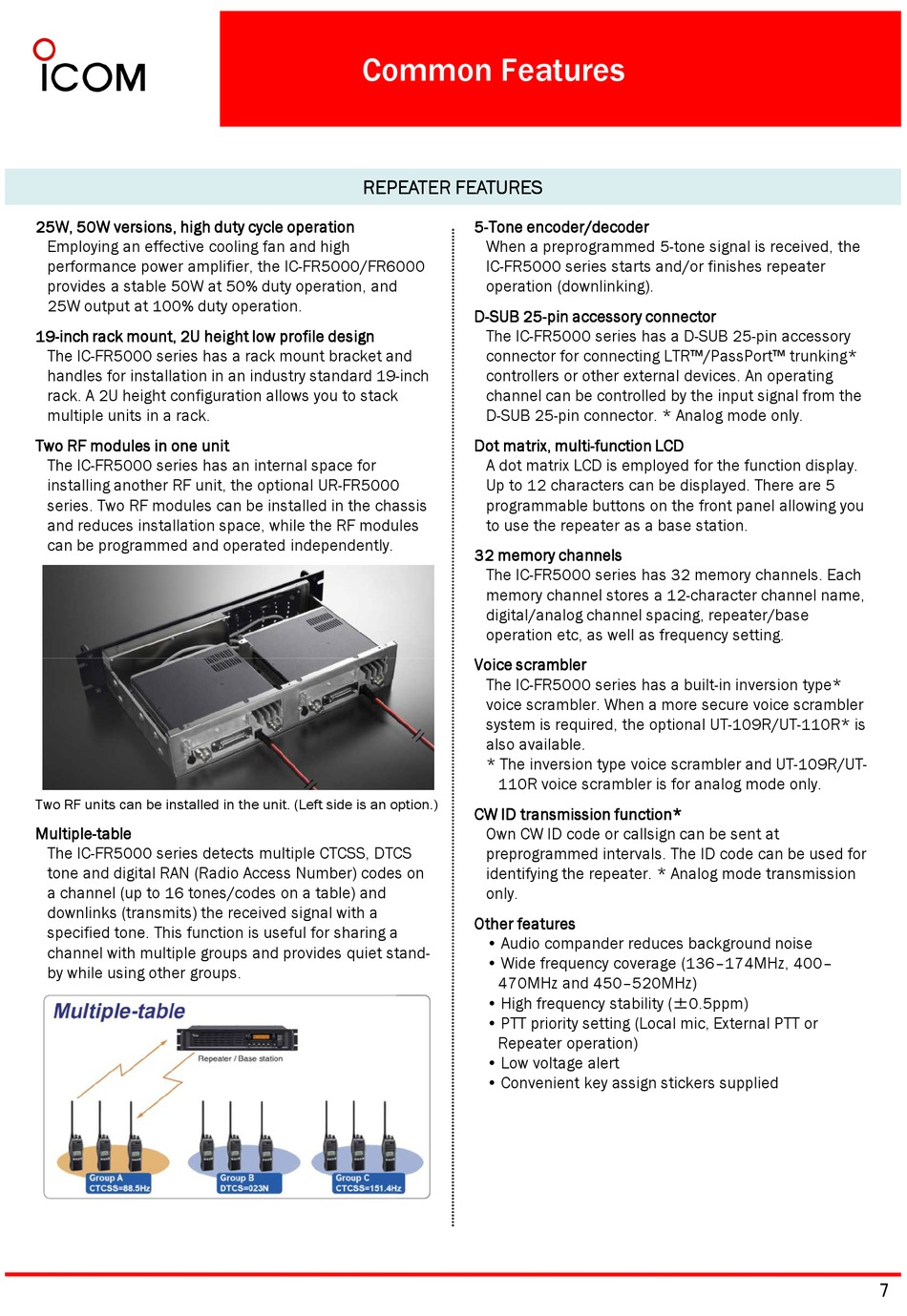

Icom IC-FR5000 Series Sales Handbook page 7

25W, 50W versions, high duty cycle operation 25W, 50W versions, high duty cycle operation 25W, 50W versions, high duty cycle operation 25W, 50W versions, high duty cycle operation
Employing an effective cooling fan and high
performance power amplifier, the IC-FR5000/FR6000
provides a stable 50W at 50% duty operation, and
25W output at 100% duty operation.
19- - - - inch rack mount, 2U height low profile design 19 inch rack mount, 2U height low profile design
19 19 inch rack mount, 2U height low profile design inch rack mount, 2U height low profile design
The IC-FR5000 series has a rack mount bracket and
handles for installation in an industry standard 19-inch
rack. A 2U height configuration allows you to stack
multiple units in a rack.
Two RF modules in one unit Two RF modules in one unit Two RF modules in one unit Two RF modules in one unit
The IC-FR5000 series has an internal space for
installing another RF unit, the optional UR-FR5000
series. Two RF modules can be installed in the chassis
and reduces installation space, while the RF modules
can be programmed and operated independently.
Two RF units can be installed in the unit. (Left side is an option.)
Multiple- - - - table Multiple table
Multiple Multiple table table
The IC-FR5000 series detects multiple CTCSS, DTCS
tone and digital RAN (Radio Access Number) codes on
a channel (up to 16 tones/codes on a table) and
downlinks (transmits) the received signal with a
specified tone. This function is useful for sharing a
channel with multiple groups and provides quiet stand-
by while using other groups.
Common Features
REPEATER FEATURES REPEATER FEATURES
REPEATER FEATURES REPEATER FEATURES
5 5 5 5 - - - - Tone encoder/decoder Tone encoder/decoder Tone encoder/decoder Tone encoder/decoder
When a preprogrammed 5-tone signal is received, the
IC-FR5000 series starts and/or finishes repeater
operation (downlinking).
D D D D - - - - SUB 25 SUB 25- - - - pin accessory connector
SUB 25 SUB 25
The IC-FR5000 series has a D-SUB 25-pin accessory
connector for connecting LTR™/PassPort™ trunking*
controllers or other external devices. An operating
channel can be controlled by the input signal from the
D-SUB 25-pin connector. * Analog mode only.
Dot matrix, multi Dot matrix, multi- - - - function LCD Dot matrix, multi Dot matrix, multi
A dot matrix LCD is employed for the function display.
Up to 12 characters can be displayed. There are 5
programmable buttons on the front panel allowing you
to use the repeater as a base station.
32 memory channels 32 memory channels
32 memory channels 32 memory channels
The IC-FR5000 series has 32 memory channels. Each
memory channel stores a 12-character channel name,
digital/analog channel spacing, repeater/base
operation etc, as well as frequency setting.
Voice scrambler Voice scrambler Voice scrambler Voice scrambler Voice scrambler Voice scrambler Voice scrambler Voice scrambler
The IC-FR5000 series has a built-in inversion type*
voice scrambler. When a more secure voice scrambler
system is required, the optional UT-109R/UT-110R* is
also available.
* The inversion type voice scrambler and UT-109R/UT-
110R voice scrambler is for analog mode only.
CW ID transmission function* CW ID transmission function* CW ID transmission function* CW ID transmission function*
Own CW ID code or callsign can be sent at
preprogrammed intervals. The ID code can be used for
identifying the repeater. * Analog mode transmission
only.
Other features Other features Other features Other features
• Audio compander reduces background noise
• Wide frequency coverage (136–174MHz, 400–
470MHz and 450–520MHz)
• High frequency stability (±0.5ppm)
• PTT priority setting (Local mic, External PTT or
Repeater operation)
• Low voltage alert
• Convenient key assign stickers supplied
pin accessory connector
pin accessory connector pin accessory connector
function LCD function LCD function LCD
