Phone Patch And Tone Remote - Icom IC-FR5000 Series Sales Handbook

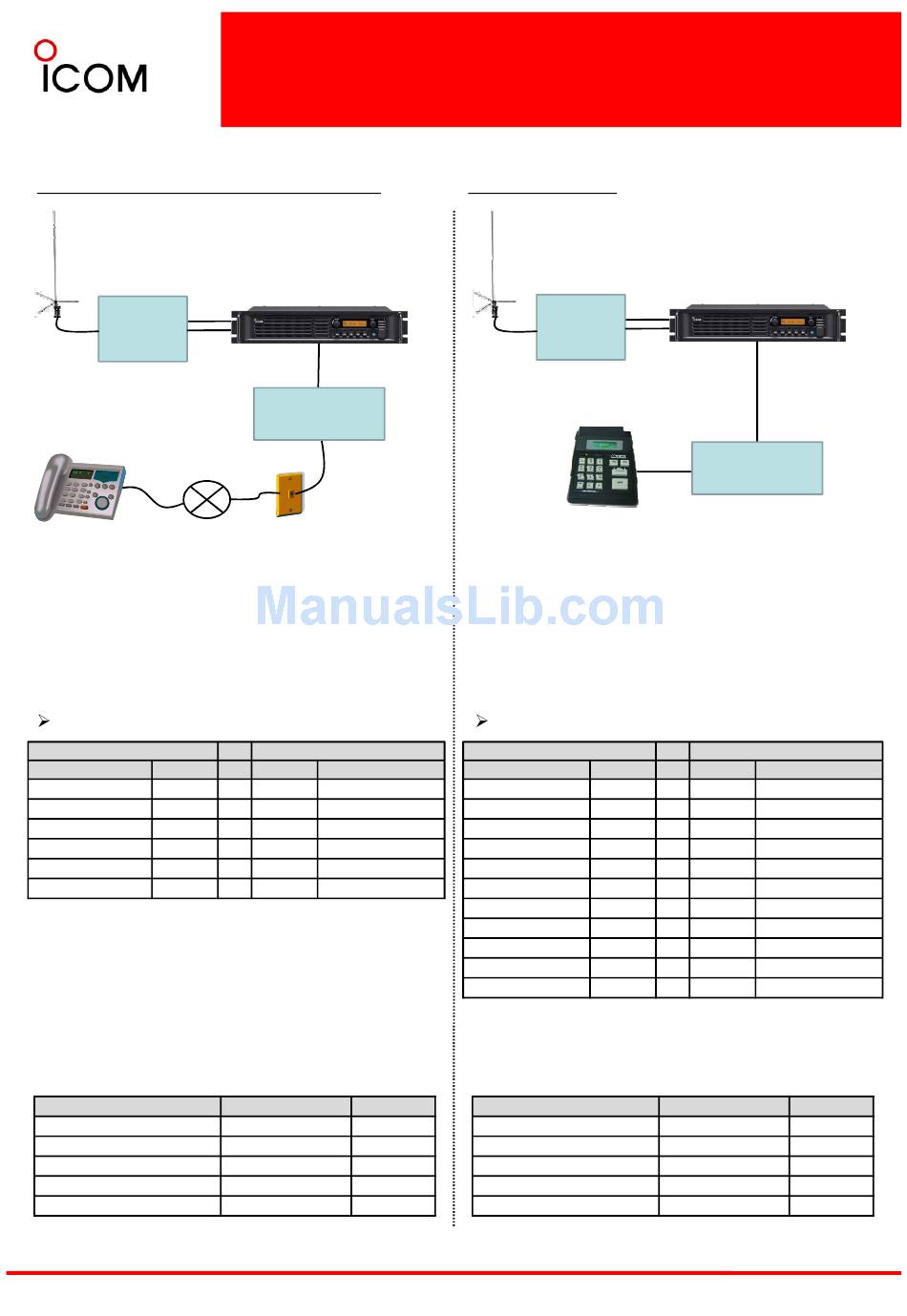

Basic Repeater to Phone Line Connecting System
Antenna
Combiner
Public Telephone line
This is an example for a telephone connection added to
a single repeater site. The IC-FR5000/6000 repeater
can be connected to the telephone line via an external
phone patch device. When a subscriber transmits DTMF
dialing codes, the received signal is sent to the dialing codes, the received signal is sent to the
telephone line to connect the phone.
Repeater and Worldpatch connection Repeater and Worldpatch connection Repeater and Worldpatch connection Repeater and Worldpatch connection
Repeater (25pin)
Pin Description Pin No.
11
+13.6V OUT
9
DISC OUT
8
MOD IN
19
EPPT
15
Busy
7,14
GND
System requirements with Telephone connection (One site) System requirements with Telephone connection (One site) System requirements with Telephone connection (One site) System requirements with Telephone connection (One site)
Descriptions
UHF Repeater
UHF Antenna
Antenna Combiner
ZETRON Worldpatch
Note: The above connections are for your reference only. Ask your dealer for details. Note:
Note: Note:
5-4

Phone Patch and Tone Remote

IC-FR6000
ZETRON
Worldpatch
Telephone line
Worldpatch (10pin)
Pin No. Pin Description
1
+12V IN
⇔
3
DISC IN
⇔
5
TX AUD
⇔
7
PTT OUT
⇔
8
COR IN
⇔
2, 4, 6
GND
⇔
Model Number Quantity
IC-FR6000
Tone Remote System
Antenna
Combiner
Tone Remote
This is an example for a Tone Remote Controller added
to a single repeater site.
Repeater and Tone Remote Adaptor connection Repeater and Tone Remote Adaptor connection Repeater and Tone Remote Adaptor connection Repeater and Tone Remote Adaptor connection
Repeater (25pin)
Pin Description Pin No.
11
+13.6V OUT
22
AF OUT
8
MOD IN
19
EPPT
17*
Key Moni
7,14
GND
15*
MCH Select :1
16*
MCH Select :2
23*
MCH Select :3
24*
MCH Select :4
25*
MCH Select :5
* The desired functions can be assigned to EXT. I/O 15
to 25.
System requirements (One site) System requirements (One site) System requirements (One site) System requirements (One site)
Descriptions
Repeater
Antenna
Antenna Combiner
Tone Remote Adaptor
Tone Remote
IC-FR6000
Tone Remote
Adapter
Tone Remote Adaptor
Pin No. Pin Description
+12V IN
⇔
RX IN
⇔
TX OUT
⇔
PTT OUT
⇔
MONITOR OUT
⇔
GND
⇔
F1
⇔
F2
⇔
F3
⇔
F4
⇔
F5
⇔
Model Number Quantity
IC-FR6000
46
