Unpacking Unpacking Unpacking Unpacking
After unpacking, immediately report any damage to the
delivering carrier or dealer. Keep the shipping cartons.
For a description and a diagram of accessory
equipment included with the IC-FR5000/FR6000
series, see 'Supplied accessories' on page 5 of this
handbook.
Selecting a location Selecting a location Selecting a location Selecting a location
Select a location for the repeater that allows adequate
air circulation, free from extreme heat, cold, or
vibrations, and away from TV sets, TV antenna
elements, radios and other electromagnetic sources.
Antenna connection Antenna Antenna Antenna connection connection connection
For radio communications, the antenna is of critical
importance, along with output power and sensitivity.
Select antenna(s), such as a well-matched 50
antenna, and feedline. 1.5:1 or better of Voltage
Standing Wave Ratio (VSWR) is recommended for the
desired band. Of course, the transmission line should
be a coaxial cable.
▒ CAUTION: CAUTION: CAUTION: CAUTION: Protect repeater from lightning by using
▒ a lightning arrestor. ▒ a lightning arrestor.
▒ NOTE: NOTE: NOTE: NOTE: There are many publications covering
▒ proper antennas and their installation. Check with
▒ your local dealer for more information and
▒ recommendations
Installation and Connections Installation and Connections
Installation and Connections Installation and Connections
3-1-1

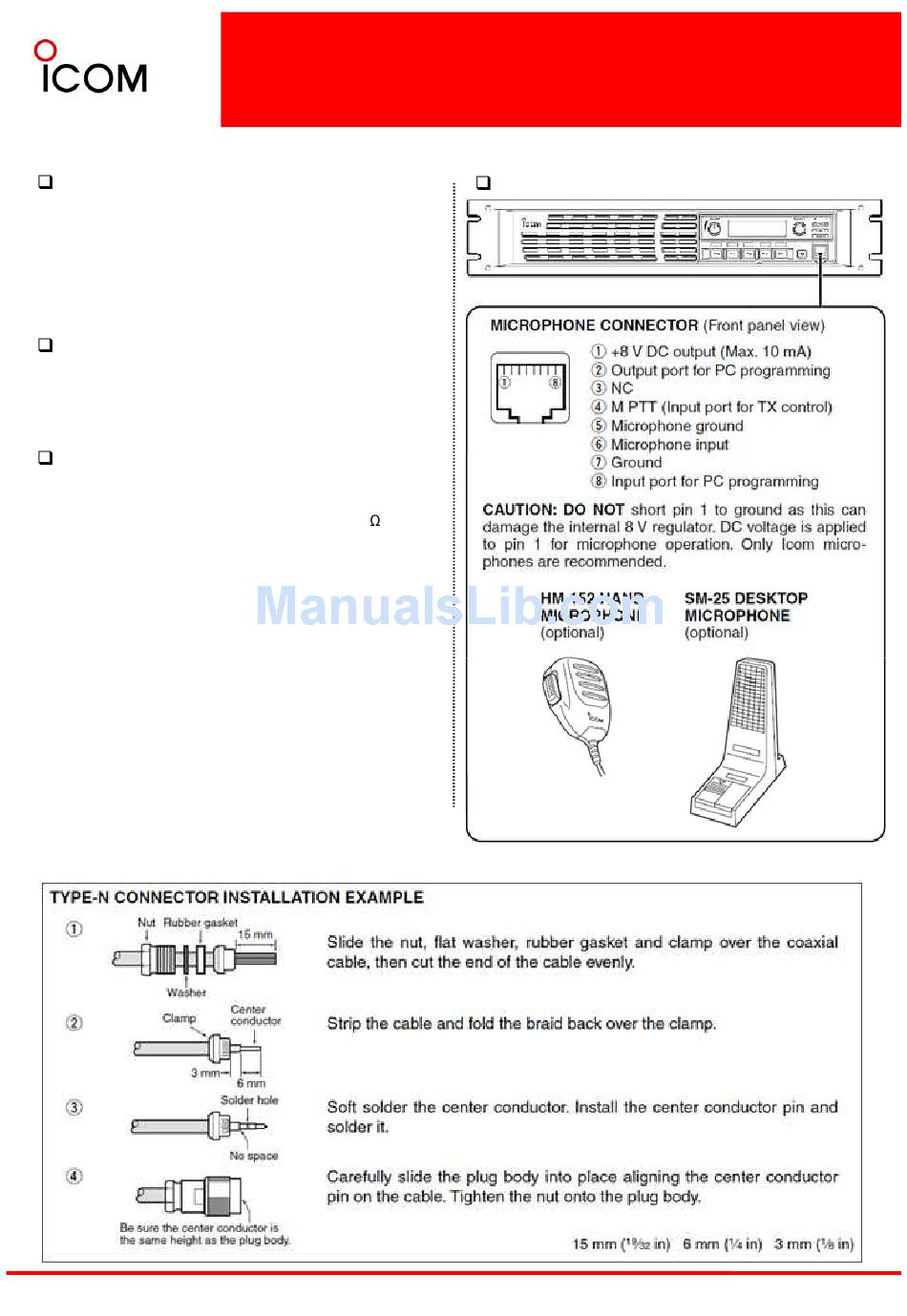

Front panel connections Front panel connections
Front panel connections Front panel connections
16
