The IC-FR6000 series has a D-SUB 25-pin accessory
connector for connecting LTR™/PassPort™ trunking*
controllers or other external devices. An operating
channel can be controlled by the input signal from the
D-SUB 25-pin connector.
A PC command protocol is available to the
manufacturers who produce external devices to
control Icom transceivers and/or repeaters by signing
an NDA.

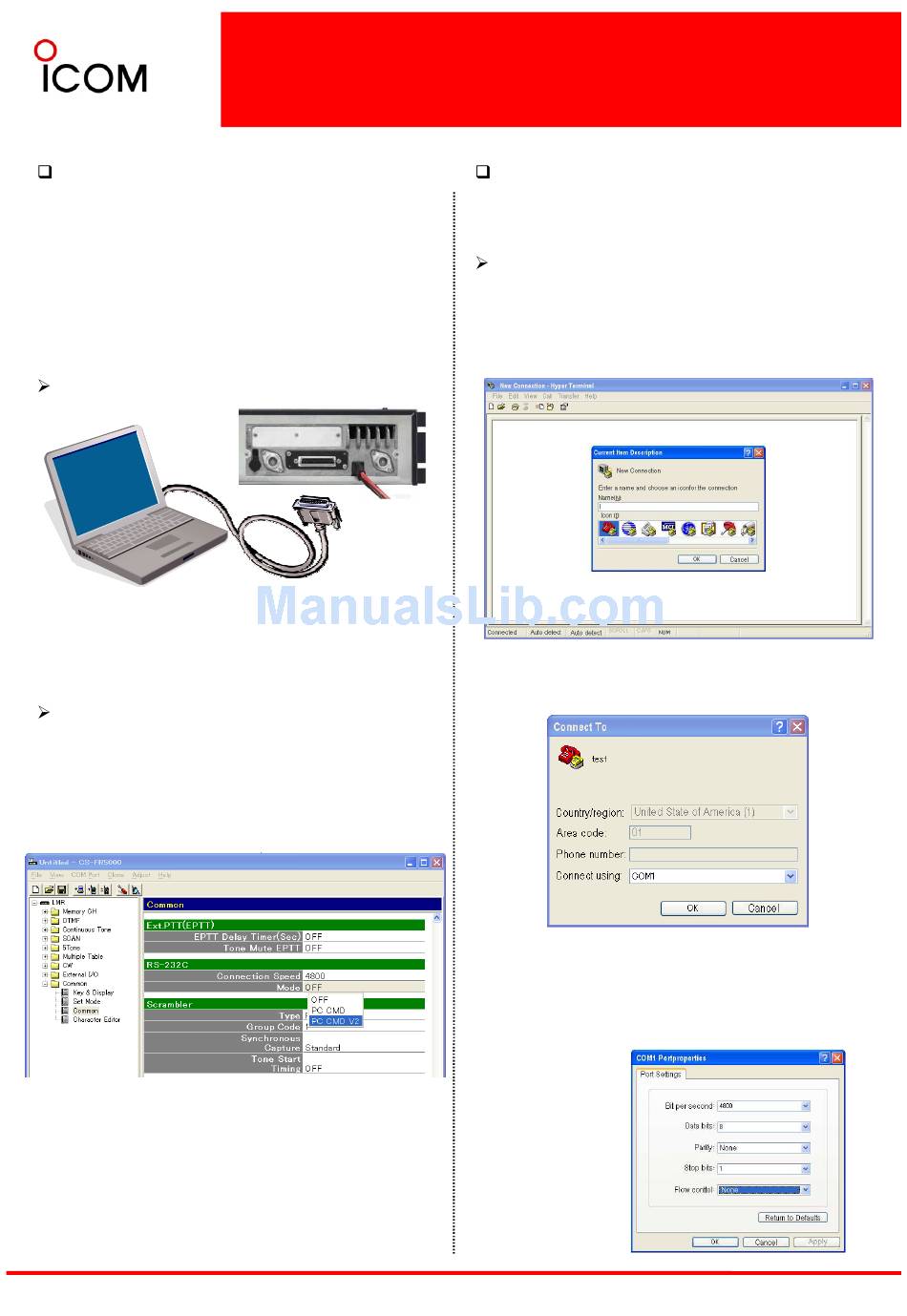

Connection Connection Connection Connection
Connect the RS-232C terminal on PC and the D-Sub
25pin connector on the rear of IC-FR6000 by a cable.
Setting of the Cloning Software Setting of the Cloning Software
Setting of the Cloning Software Setting of the Cloning Software
• Set the RS-232C mode at Common – Common
– RS-232C
Mode: MC CMD V2
• The Initial set up value of connection Speed is
4800bps. This can be changed to match the speed
with the Terminal software.
4-5

Remote Control Function

Operation with a Hyper Terminal Operation with a Hyper Terminal
Operation with a Hyper Terminal Operation with a Hyper Terminal
The Hyper Terminal software comes with Windows
2000 or Windows ® XP. Hyper Terminal software is
not supplied with Window Vista™.
Hyper Terminal setup Hyper Terminal setup Hyper Terminal setup Hyper Terminal setup
1. Name and Icon setup
When starting the Hyper Terminal software the
screen below will be displayed. Type a name and
select an icon from the list then click the OK
button.
2. Set up PC and radio connection 2. Set up PC and radio connection
• Select COM1 – COM2(255 max) of the "Connect
using".
• Detail of COM port setup
▒ NOTE NOTE Speed should be matched with cloning NOTE NOTE
▒ software settings.
Set each port setting parameter as below.
Data=8bit
Parity=None
Stop=1bit
Flow=None
®
