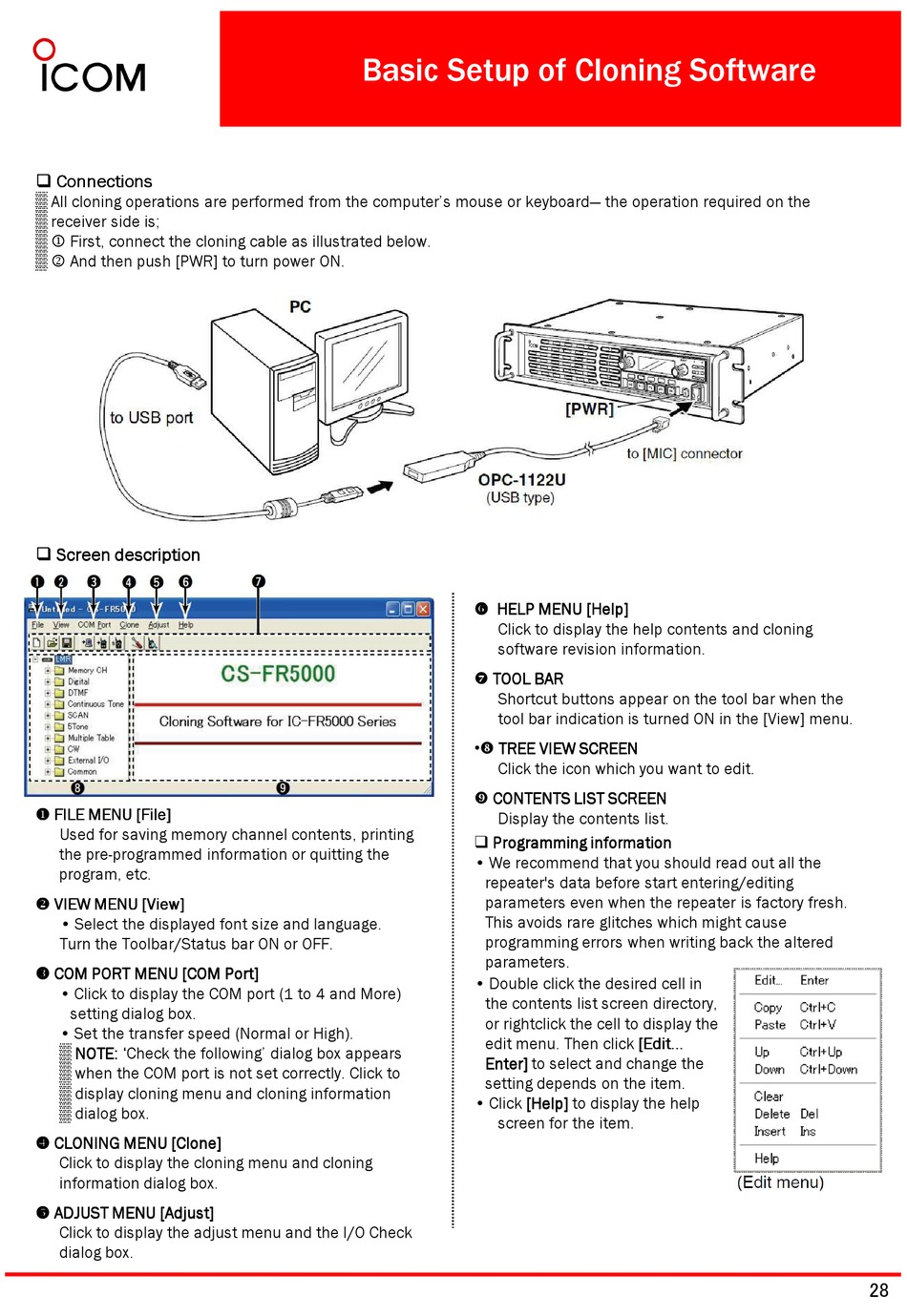

Basic Setup Of Cloning Software - Icom IC-FR5000 Series Sales Handbook

Connections Connections Connections Connections
▒ All cloning operations are performed from the computer's mouse or keyboard— the operation required on the
▒ receiver side is;
▒ 1 First, connect the cloning cable as illustrated below.
▒ 2 And then push [PWR] to turn power ON.
Screen description Screen description
Screen description Screen description
FILE MENU [File] FILE MENU [File]
FILE MENU [File] FILE MENU [File]
Used for saving memory channel contents, printing
the pre-programmed information or quitting the
program, etc.
VIEW MENU [View] VIEW MENU [View]
VIEW MENU [View] VIEW MENU [View]
• Select the displayed font size and language.
Turn the Toolbar/Status bar ON or OFF.
COM PORT MENU [COM Port] COM PORT MENU [COM Port] COM PORT MENU [COM Port] COM PORT MENU [COM Port]
• Click to display the COM port (1 to 4 and More)
setting dialog box.
• Set the transfer speed (Normal or High).
▒ NOTE: ' NOTE: ' NOTE: ' NOTE: 'Check the following' dialog box appears
▒ when the COM port is not set correctly. Click to
▒ display cloning menu and cloning information
▒ dialog box.
CLONING MENU [Clone] CLONING MENU [Clone] CLONING MENU [Clone] CLONING MENU [Clone]
Click to display the cloning menu and cloning
information dialog box.
ADJUST MENU [Adjust] ADJUST MENU [Adjust] ADJUST MENU [Adjust] ADJUST MENU [Adjust]
Click to display the adjust menu and the I/O Check
dialog box.

Basic Setup of Cloning Software

HELP MENU [Help] HELP MENU [Help] HELP MENU [Help] HELP MENU [Help]
Click to display the help contents and cloning
software revision information. software revision information.
TOOL BAR TOOL BAR TOOL BAR TOOL BAR
Shortcut buttons appear on the tool bar when the
tool bar indication is turned ON in the [View] menu.
TREE VIEW SCREEN TREE VIEW SCREEN TREE VIEW SCREEN TREE VIEW SCREEN
•
Click the icon which you want to edit.
CONTENTS LIST SCREEN CONTENTS LIST SCREEN CONTENTS LIST SCREEN CONTENTS LIST SCREEN
Display the contents list.
Programming information Programming information Programming information Programming information
• We recommend that you should read out all the
repeater's data before start entering/editing
parameters even when the repeater is factory fresh.
This avoids rare glitches which might cause
programming errors when writing back the altered
parameters.
• Double click the desired cell in
the contents list screen directory,
or rightclick the cell to display the
edit menu. Then click [Edit...
Enter] Enter] to select and change the Enter] Enter]
setting depends on the item.
• Click [Help] [Help] to display the help [Help] [Help]
screen for the item.
[Edit...
[Edit... [Edit...
