Multiple Table - Icom IC-FR5000 Series Sales Handbook

Multiple table function Multiple table function Multiple table function Multiple table function

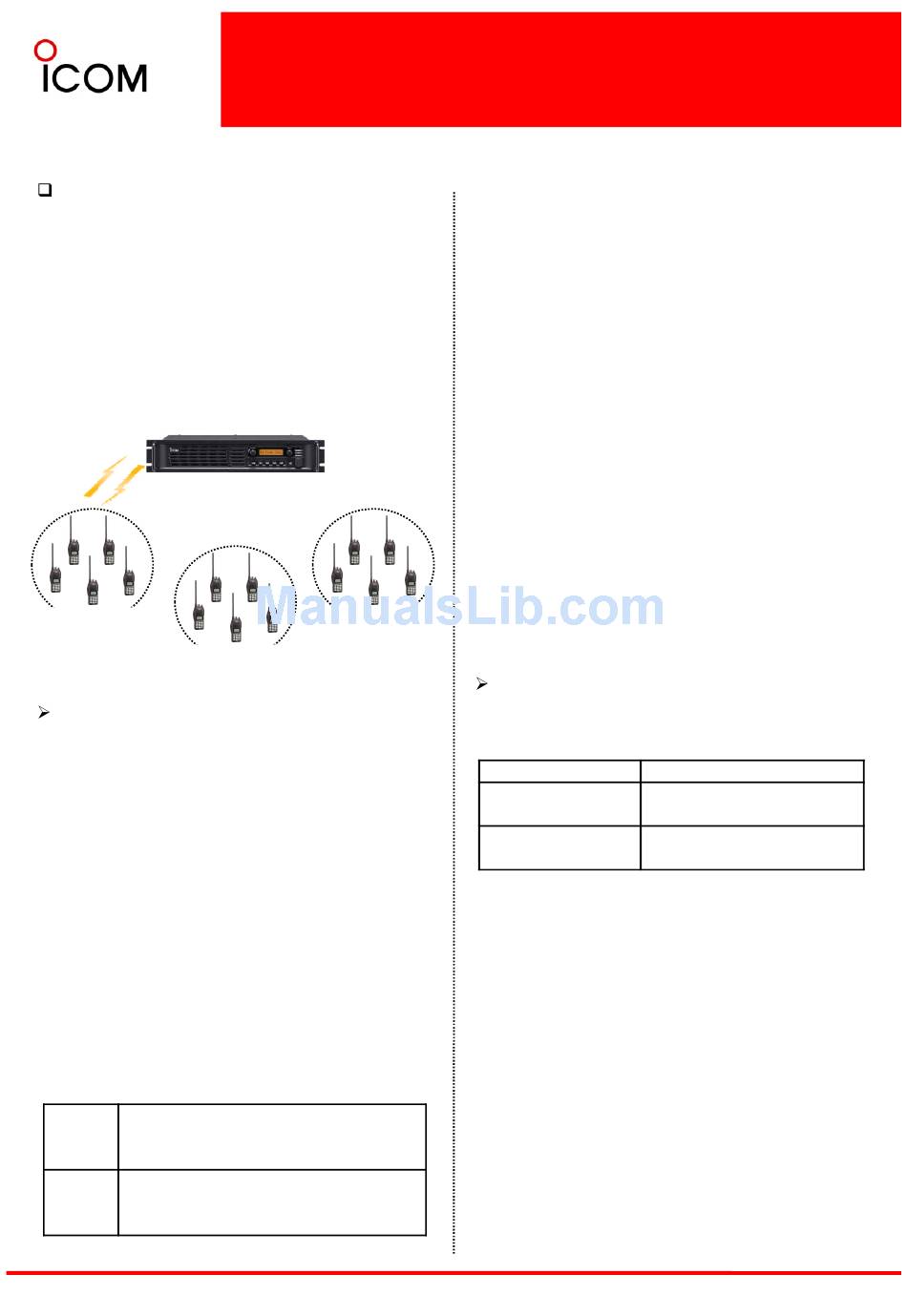

The IC-FR5000/FR6000 allows relaying between
multiple groups with one repeater. (When group
separation is carried out with a continuous tone)
This feature can be used in both analog and digital
mode.
• Operation Operation Operation Operation
− The C. Tone and/or RAN code is set for each group.
− When Group A is using the repeater, the other groups
cannot use it.
− When the Group A relay is finished, the other groups
can then use the repeater.
Repeater/Base station
Group A - Digital
RAN=11
Group B - Analog Group B - Analog
C.Tone=151.4Hz
Multiple table setup Multiple table setup
Multiple table setup Multiple table setup
Enter up to 16 C. Tone and/or RAN code in each Multi
Table.
• Table No. Table No.
Table No. Table No.
Select the desired Multi Table No. within 1 to 16.
When the number is selected in Multi Table No.
Memory CH screen, the specified C. Tones and/or RAN
codes are used as the encoder and decoder in the
channel.
▒ NOTE: NOTE: NOTE: NOTE:
▒ - When "Analog" is selected in CH Type
▒ Memory CH screen, only the assigned C. Tones are
▒ available.
▒ - When "Digital" is selected in CH Type
▒ Memory CH screen, only the assigned RAN codes
▒ are available.
• Type Type Type Type
Select the signaling type from Analog and Digital.
Analog Desired CTCSS frequency or DTCS code
can be set in Decode and Encode (FM
mode operation).
Digital
Desired RAN code can be set in
Decode and Encode (Digital mode
operation).
4-4

Multiple Table

Group B - Analog
C.Tone=023N
Multi Table No. in the Multi Table No. Multi Table No.
CH Type in the CH Type CH Type
CH Type in the CH Type CH Type
• Decode/Encode Decode/Encode Decode/Encode Decode/Encode
Enter the desired C. Tone and/or RAN code for Decode
and Encode columns respectively.
▒ NOTE: NOTE: NOTE: NOTE:
▒ When "Simplex/Semi-Duplex" is selected in the
▒ Operation Mode Operation Mode in the Memory CH screen, only
Operation Mode Operation Mode
▒ C. Tone and/or RAN code specified in Encode
▒ columns are used.
When "Analog" is selected in Type When "Analog" is selected in Type
When "Analog" is selected in Type When "Analog" is selected in Type
Select the desired CTCSS frequency from the list or
enter a 3-digit DTCS code with polarity, N (Normal) or I
(Inverse), for Decode Decode Decode Decode and Encode
When "Digital" is selected in Type When "Digital" is selected in Type When "Digital" is selected in Type When "Digital" is selected in Type
Set the desired RAN (Radio Access Number) from 00
to 63 (decimal number) to separate the repeater from
the same/adjacent channel station according to the
assigned code for Decode Decode and Encode
Decode Decode
The repeater selectively accesses the one of several
repeaters within overlapping coverage areas allowing
the user to listen to a specific repeater.
"00" (decimal number) is a special code, and matches
to any RAN. to any RAN.
Memory Channel setup Memory Channel setup Memory Channel setup Memory Channel setup
• Operation Mode Operation Mode Operation Mode Operation Mode
Select the usage of the channel from Repeat, Full-
Duplex and Simplex.
Repeat :Repeat
Full-Duplex :Full-
Duplex
Simplex :Semi-
Duplex/Simplex
▒ NOTE: NOTE: NOTE: NOTE:
▒ When "Repeat" or "Full-Duplex" is selected, enter the
▒ different frequency in RX and TX columns.
▒ Otherwise, the setting cannot be activated correctly.
• Multi Table No. Multi Table No.
Multi Table No. Multi Table No.
Select the desired Multi Table No. within 1 to 16 and
OFF.
Up to 16 C. Tones and/or RAN codes assigned in the
table can be decoded and encoded in the CH.
Multi Table setting in the Multiple Table screen must
be specified to use the function.
▒ NOTE: NOTE: NOTE: NOTE:
▒ - When "Analog" is selected in CH Type
▒ assigned C. Tones in the selected Multi Table are
▒ available.
▒ - When "Digital" is selected in CH Type
▒ assigned RAN codes in the selected Multi Table are
▒ available.
Encode Encode Encode respectively.
Encode respectively.
Encode Encode
For repeater operation.
For base station operation
in full-duplex mode.
For base station operation
in simplex mode.
CH Type, only the
CH Type CH Type
CH Type, only the CH Type CH Type
31
