PANEL DESCRIPTION

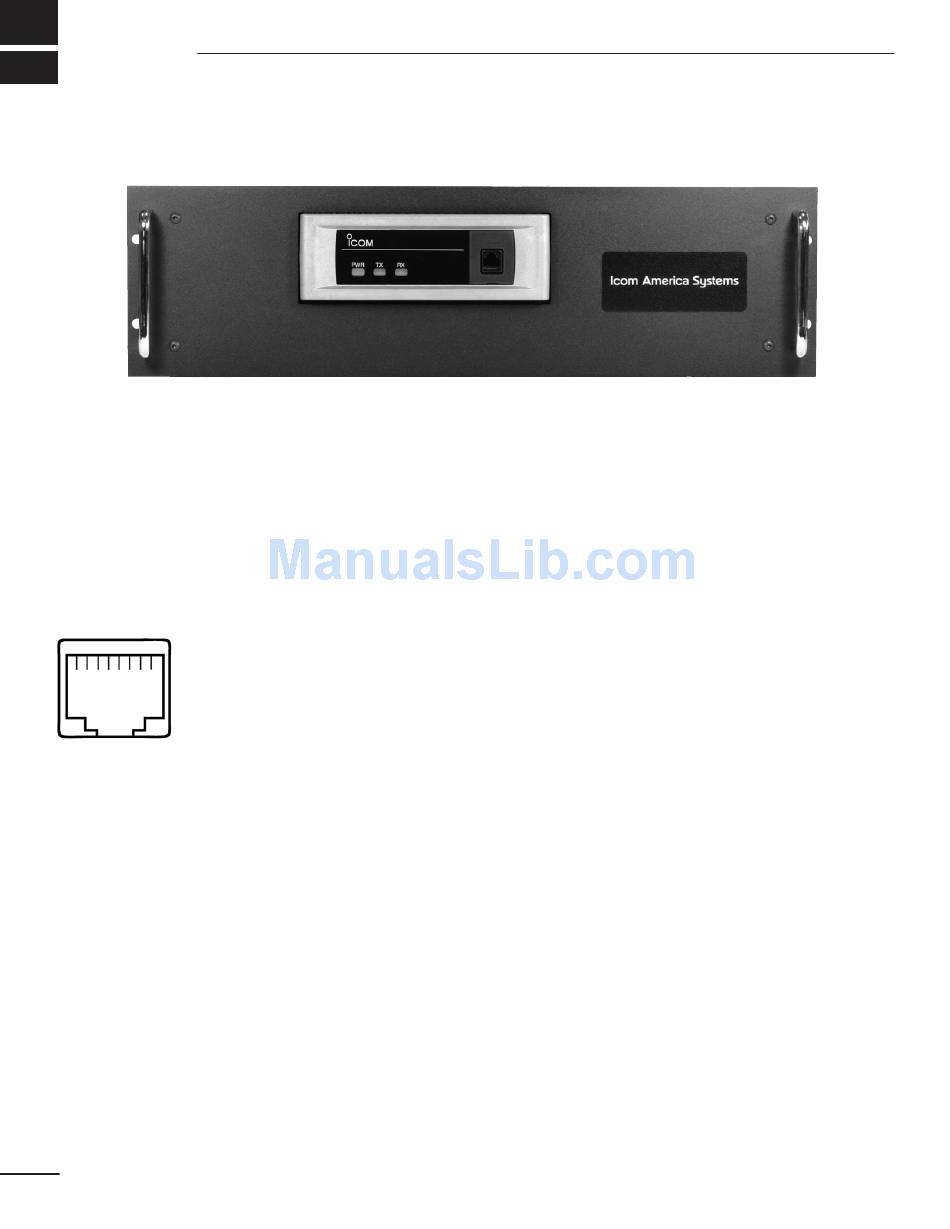

■ Front Panel
➊
MICROPHONE/SPEAKER CONNECTOR
[MIC/SP]
This 8-pin modular jack accepts the optional
Field Service Aid.
➀ +8 V DC output (Max. 15 mA)
➁ Output port for PC programming
➂ AFO
➀
➇
➃ M PTT (Input port for TX control)
➄ Microphone ground
➅ Microphone input
➆ Ground
➇ Input port for PC programming
